Constant Pressure/ Constant Current
Digital Power Supply Introductions
Dear users, thank you for purchasing the constant Voltage/constant Current digital power
supply produced by HANGZHOU RUIDENG TECHNOLOGIES CO., LTD, in order to let you know
more about the full function of this product, get a better experience and avoid misuse.
Please spend some time on reading this introduction. Keep it for checking again.
attention to these red sentences)
1. Production Introduction
1.1 Production Synopsis

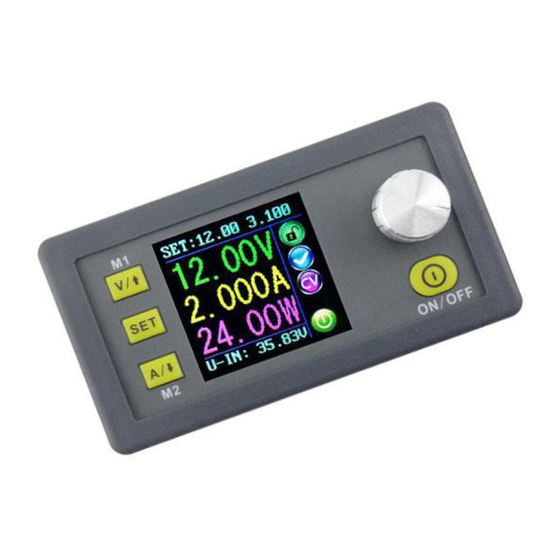

This product combines analog adjustment and digital control, at the same time it is
compact and powerful, and becomes the first choice for many enthusiasts and laboratory
workers. The unit offers non-volatile power off parameter storage and 10 programmable
preset memory Data Groups with a shortcut recall function for groups 1 and 2. All these
productions are designed with LCD display, so we can check set Voltage, set Current, output
Voltage, output current, output power, input Voltage and so on. On the right side of the main
interface, we can see output enabled or disabled, Constant Current or Constant Voltage
mode of operation, abnormal condition warning, keypad locked or unlocked state and the
Data Group in use. The data setting interface allows adjustment of Over-Current,
Over-Voltage and Over-Power protection values, Preset value, LCD brightness and whether
the power is turned on or the like.
This product has 3 versions, Non-communication version, USB communication version,
USB + Bluetooth communication version. Communication version can be connected to PC,
Bluetooth version can be connected to Android mobile phone.
communication)
This product has many advantages, small size, advanced function, good visual effect,
high operability, high-precision, it can be used independently or be inset into the device and
been widely applied.
1.2 Series Product Parameters
Model Name
Input Voltage range
Output Voltage range
Output power range
Output Current range
Output Voltage
accuracy
Model: DPS3003/DPS3005/DPS5005/DPS8005
DPS3003
DPS3005
DC6-40V
DC6-40V
0-32.00V
0-32.00V
0-96W
0-160W
0-3.000A
0-5.000A
version: 2019-3-15
(Note: DPS3003 only has no
DPS5005
DC6-55V
0-50.00V
0-250W
0-5.000A
±(0.5%+3 digit)
(Please pay
DPS8005
DC10-90V
0-80.00V
0-408W
0-5.100A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RuiDeng DPS3003
Summary of Contents for RuiDeng DPS3003
- Page 1 Dear users, thank you for purchasing the constant Voltage/constant Current digital power supply produced by HANGZHOU RUIDENG TECHNOLOGIES CO., LTD, in order to let you know more about the full function of this product, get a better experience and avoid misuse.
- Page 2 Output Current ±(0.5%+5 个 digit) ±(0.8%+5digit) accuracy Output ripple typical 100mV VPP 150mV VPP Output Voltage 0.01V resolution Output Current 0.001A resolution Display module open Different hardness and thickness materials will be 71*39mm （ different, please test before batch use ）...
- Page 3 A: Voltage setting/Up Arrow/Shortcut to recall M1 Data Group. B: Data entry /Extract data from the specified Data Group C: Current setting / Down Arrow / Shortcut to recall M2 Data Group. D: 1.44 inch full color LCD screen. E: Rotary control / Data adjustment / Keypad lock. F: Output On / Off.
- Page 4 When the unit is first powered on, the Welcome screen is displayed followed shortly by the Main Interface screen. 1.6.1 Fast Voltage and Current Setting key to enter the fast Voltage setting mode. Press the rotary control to cycle Press through the characters available, place the cursor at the required character, turn the rotary control clockwise increases the value and anticlockwise decreases the value.
- Page 5 be saved in this Data Group.in the meanwhile t he Data Group Number is shown on the right Press key to exit. hand side of the screen. 1.6.2.4 M-PRE ON / OFF Setting Switch to , press and turn the rotary control to Data Group Number you want to check, then all the data will be shown to you, press rotary control again so that you can adjust M-PRE option.
- Page 6 1.7.4 Shortcut Keys to Select and Recall M1 or M2 Data Group Hold key or key for over 2 seconds to shortcut recall the M1 or M2 Data Group, and there will be Data Group Number displayed on the right side of the interface. 1.7.5 Select and Recall Any Specific Data Group.
- Page 7 2.2 Digital Power Communication Parameter Setting Hold key and then turn on the power to enter the communication parameter setting interface, press key or key to select the parameter, and then press the rotary control to enter the data modification. After setting the data, press key twice to exit, the communication parameters will be saved automatically.
-
Page 8: Bluetooth Communication
2.3 Bluetooth Communication The Bluetooth communication module follows the V2.1+EDR Bluetooth specification, connect digital power supply and communication module with cables (you need to enter the communication setting interface to initialize the communication parameters of the Bluetooth module if it is the first time to use Bluetooth communication function).The red LED of Bluetooth communication module starts to flash after the digital power is turned on, that means the Bluetooth can be searched. - Page 9 Select the connected Bluetooth device, check the Bluetooth serial port COM that the computer is using, and the COM port of the outgoing direction (DPS5015_001'Port') is the serial port of the Bluetooth connection.(Note: Win 7 system, select the Bluetooth device, right click to view the properties, display the following window, view the COM port of the Bluetooth settings, select the "outgoing direction"...
- Page 10 Note: this software can only work on Win7 or above. DPS3003: file download link: (no communication function) DPS3005: file download link: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file DPS5005: file download link: http://www.mediafire.com/folder/napmdzd4qt2dt/DPS5005_file DPS8005: file download link: http://www.mediafire.com/folder/i1766ch7ec97a/DPS8005_file 2.4.1 Open and Unzip the PC software Double click the Arial Unicode MS Font Pack and click Install to install the Font Pack.
- Page 11 2.5 Using Computer Software Double-click the shortcut icon on the desktop to open the computer software. 2.5.1 Introduction of Using Select the communication port (section 2.3 for Bluetooth connection, section 2.1 USB connection), baud rate, slave address (default 9600, 001), click “On-Line” to start communication, and automatically lock the digital power button after successful connection.
- Page 12 2.5.2 Introduction of Functions The computer software interface can be divided into basic functions and advanced functions. Basic functions include Voltage/Current setting, shortcut recall, brightness adjustment, voltage and current curve derivation. You can set Voltage/Current by turning the knob or enter an value. The graph on the right shows the real-time voltage and current curves (the curve will be stored for up to 24 hours).
- Page 13 Data Copy will copy chart data as shown below: Cleaning chart will clean chart data as shown below: Automatic adjustment of the X scale will adjust the X-axis scale automatically, as shown below: Exporting data to the clipboard will copy the data to the clipboard. Exporting data to Excel will export data as table file as shown below:...
- Page 14 Exporting simplified image as shown below: Advanced functions include data group reading and writing, automatic test, voltage scan, current scan and so on.
-
Page 15: Introduction Of App(Android)
3. Introduction of APP(Android) Applicable product model: DPS5005-USB-BT/DPS8005-USB-BT. 3.1 Application Setup SYSTEM: Android 5.0 or above 3.1.1 Application Download The Android application has been uploaded to the Google Store, you can searched for "DPS(H) Series" in Google Store. Domestic customers who cannot use Google Store can also download the file with the extension APK and install it on the phone. - Page 16 3.2.1 Click Icon You Can See Interface as Shown Below Z: Digital power supply detected AA: Export table file as shown above to the phone folder (SD Card directory, repeat the write, can generate a graph in Excel directly). AB: Multi-language option, click to select a language, currently 3 languages (Chinese (Simplified / Traditional), English, more languages will be updated...
- Page 17 4.Others APP for IOS has not been finished .You can send E-Mail to if you have any 1749808860@qq.com question.
