DPH Series Constant Voltage /Constant Current
Digital Power Supply Introductions
Dear users, thank you for purchasing the constant Voltage/constant Current digital power
supply produced by HANGZHOU RUIDENG TECHNOLOGIES CO., LTD, in order to let you know
more about the full function of this product, get a better experience and avoid misuse.
Please spend some time on reading this introduction. Keep it for checking again.
attention to these red sentences)
1. Production Introduction
1.1 Production Synopsis
DPS3012/DPS5015/DPS5020 combines analog adjustment and digital control, at the
same time it is compact and powerful, and becomes the first choice for many enthusiasts and
laboratory workers. The unit offers non-volatile power off parameter storage and 10
programmable preset memory Data Groups with a shortcut recall function for groups 1 and 2.

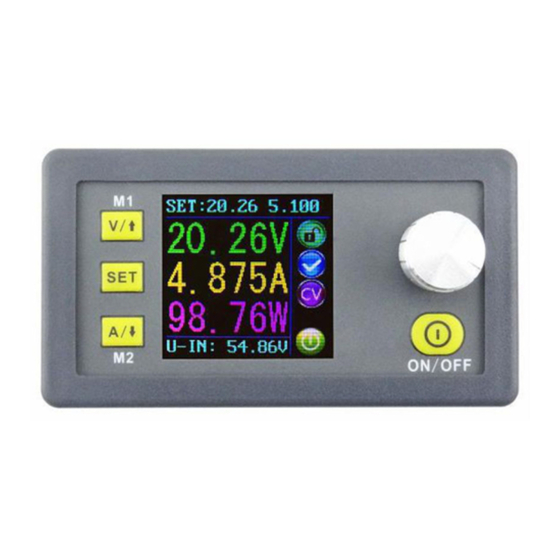

All these productions are designed with LCD display, so we can check set Voltage, set Current,
output Voltage, output current, output power, input Voltage and so on. On the right side of
the main interface, we can see output enabled or disabled, Constant Current or Constant
Voltage mode of operation, abnormal condition warning, keypad locked or unlocked state
and the Data Group in use. The data setting interface allows adjustment of Over-Current,
Over-Voltage and Over-Power protection values, Preset value, LCD brightness and whether
the power is turned on or the like.
DPH5005 has 3 versions, Non-communication version, USB communication version, USB
+ Bluetooth communication version. Communication version can be connected to PC,
Bluetooth version can be connected to Android mobile phone.
communication)
This module has many advantages, small size, advanced function, good visual effect,
high operability, high-precision, it can be used independently or be inset into the device and
been widely applied.
1.2 Series Product Parameters
产品型号
Input Voltage range
Output Voltage range
Output power range
Output Current range
Model: DPH3205/DPH5005
DPH5005
DC6-50V
0-50.00V
0-250W
0-5.000A
17 / 32
version: 2019-3-15
(Please pay
(Note: DPH3205 only has no
DPH3205
DC6-40V
0-32.00V
0-160W
0-5.000A
Advertisement
Table of Contents
Related Manuals for RuiDeng DPH Series
Summary of Contents for RuiDeng DPH Series
- Page 1 Dear users, thank you for purchasing the constant Voltage/constant Current digital power supply produced by HANGZHOU RUIDENG TECHNOLOGIES CO., LTD, in order to let you know more about the full function of this product, get a better experience and avoid misuse.
-
Page 2: Connection Description
Weight(packet included) 253g 217g Output Voltage accuracy digit ) ±(0.5%+3 Output Current accuracy digit ) ±(0.5%+5 Output Voltage resolution 0.01V Output Current resolution 0.001A Display module open size 79*43*38mm （Different hardness and thickness materials 79*39mm Power module size will be different, please test before batch use.）... -
Page 3: Panel Description
connected in the right way, otherwise it will not display properly. The input Voltage range is DC 0.00-50.00V. 50.00V DC is the maximum input Voltage limit and AC or AC Mains supply 220V must NEVER under any circumstances be connected to this unit .Do not reverse the battery when charging it. - Page 4 I:The actual value of the output Current N:Normal or abnormal status prompt J:The actual value of the output Power O:Constant Voltage or Constant Current status prompt K:The actual value of the input Voltage P: Data Group number in use prompt Q: Output enabled or disabled prompt R:Preset Output Voltage V:Preset Over-Power protection value...
- Page 5 Voltage and output Current Limit in the same way as used in the main interface. 1.6.2.1 Protection Values Setting Switch to (Over-Voltage Protection), (Over-Current Protection) or (Over-Power Protection) limits. We can set the value of Over-Voltage protection value, Over-Current protection value and Over-Power protection value. When any of the protection value limits are reached ,the output will be automatically disabled, and there will displayed on the interface;...
-
Page 6: Pc Software Installation And Use
ON is selected, the device will Power on with the Output enabled. Selecting When OFF is selected, the device will Power on with the Output disabled. 1.7 Function Description 1.7.1 Enable or Disable the Output At any time you can press key to enable or disable the Output when the keypad is unlocked. - Page 7 This software is designed by HANGZHOU RUIDENG TECHNOLOGIES CO., LTD, and it does not carry any virus. If your anti-virus software prompts, please allow all its functions, otherwise it will affect the normal operation of the software. Download address is detailed in section 2.4.
-
Page 8: Bluetooth Communication
ADDR: address code of digital power supply, range 001-255, default 001 (it won’t be used unless multi-machine communication). BAUD: communication Baud-rate, 2400, 4800,9600,19200 can be chosen. BPIN: Bluetooth pairing code, 0000-9999, default 1234, it is used when connecting to Bluetooth. 2.3 Bluetooth Communication The Bluetooth communication module follows the V2.1+EDR Bluetooth specification, connect digital power supply and communication module with cables... - Page 9 Enter the device's pairing code when connecting to Bluetooth. Default 1234. Select the connected Bluetooth device, check the Bluetooth serial port COM that the computer is using, and the COM port of the outgoing direction (DPS5015_001'Port') is the serial port of the Bluetooth connection.(Note: Win 7 system, select the Bluetooth device, right click to view the properties, display the following window, view the COM port of the Bluetooth settings, select the "outgoing direction"...
- Page 10 Note: The power supply voltage of communication interface is DC 3.3V and power supply ability is limit. Don’t connect other big power Bluetooth or WIFI module, otherwise it will be burnt. When using the Bluetooth communication function, if power off for digital power supply, you need to choose COM interface to connect Bluetooth module again after power on.
- Page 11 Double click the Arial Unicode MS Font Pack and click Install to install the Font Pack. 2.4.2 Double-click setup.exe to Set Up Computer Software 27 / 32...
- Page 12 2.5 Using Computer Software Double-click the shortcut icon on the desktop to open the computer software. 2.5.1 Introduction of Using Select the communication port (section 2.3 for Bluetooth connection, section 2.1 USB connection), baud rate, slave address (default 9600, 001), click “On-Line” to start communication, and automatically lock the digital power button after successful connection.
- Page 13 2.5.2 Introduction Of Functions The computer software interface can be divided into basic functions and advanced functions. Basic functions include Voltage/Current setting, shortcut recall, brightness adjustment, voltage and current curve derivation. You can set Voltage/Current by turning the knob or enter a value. The graph on the right shows the real-time voltage and current curves (the curve will be stored for up to 24 hours).
-
Page 14: Introduction Of App(Android)
3. Introduction of APP(Android) Applicable product model: DPH5005-USB-BT. 3.1 Application Setup SYSTEM: Android 5.0 or above 3.1.1 Application Download The Android application has been uploaded to the Google Store, you can searched for "DPS(H) Series" in Google Store. Domestic customers who cannot use Google Store can also download the file with the extension APK and install it on the phone. - Page 15 Z: Digital power supply detected AA: Export table file as shown above to the phone folder (SD Card directory, repeat the write, can generate a graph in Excel directly). AB: Multi-language option, click to select a language, currently 3 languages (Chinese (Simplified / Traditional), English, more languages will be updated...
- Page 16 4.Others APP for IOS has not been finished .You can send E-Mail to 1749808860@qq.com if you have any question. 32 / 32...
