RuiDeng DPS5005 Product Description

Product Description
DPS5005 Constant Voltage current Step-down Programmable control Power module buck converter color
LCD Display voltmeter DP50V5A Upgraded version
General Information
The constant voltage and constant current programmable control power supply module put the collection of analog
integration and digital control functions in one. Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its
adjustable output current range is 0-5.000A, step by 0.001A. This module has power-down stored function and can
store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared
with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD
display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage,
output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see
that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked
or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value,
overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size,
advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the
device and been widely applied.
Technical parameters
Input voltage range: 6.00-55.00V
Output current: 0-5.000A
Product Weight: about 113g
Open size: 71mm*39mm
Output current resolution: 0.001A
Output Current accuracy: ± (0.5% + 2 digit)
NOTE: You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current
circumstances, pay attention to heat elimination.

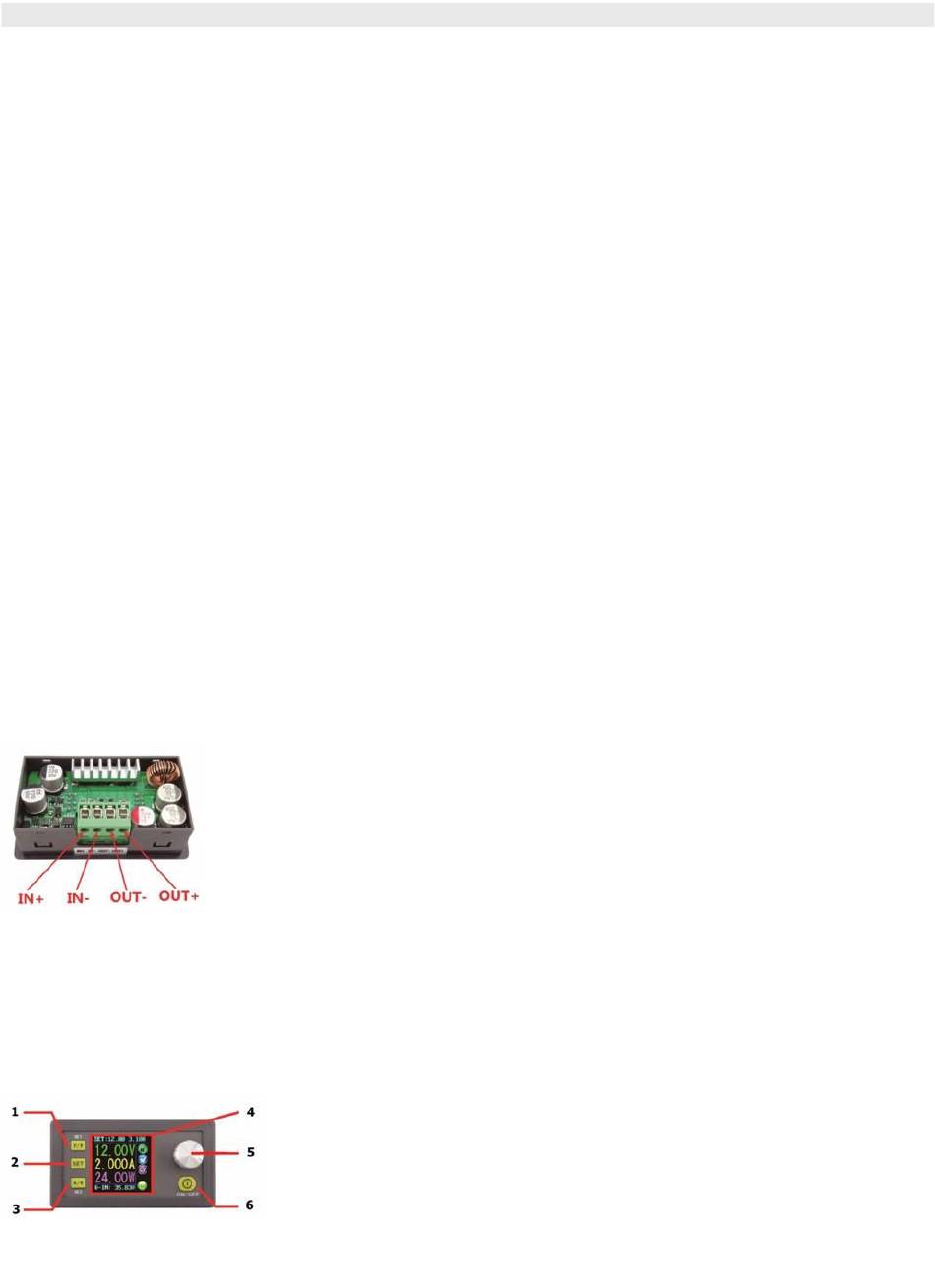

Connection description
IN+: Input positive
OUT+: Output positive:
Note: Input voltage range is DC 6-55V and 55v is the limit voltage; please leave a room to use. Or else it will be burnt.
The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse
connection protection and output short circuit protection, you can muse be in strict accordance with connection
description to connect. If you connect the supply power with output, the module will be burnt.

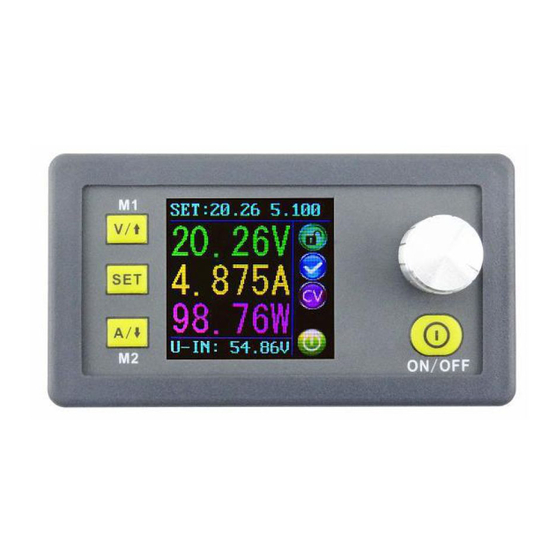

Panel and Display interface description
Panel description
1-Voltage setting/Page up to choose/Shortcut extract M1 data group
2-Data setting/ Extract value of the specified data group/Store value into the specified data group
Constant Voltage Constant Current
Programmable Control Supply Power Module
IN-: Input negative:
OUT-: Output negative
Output voltage range: 0V-50.00V
Output power range: 00.00-250.0W
Product Dimension: 79*43*48(mm) (L*W*H)
Output voltage resolution: 0.01V
Output Voltage accuracy: ± (0.5% + 1 digits)
Product model: DPS5005
