Hardware installation
2-1 Pre-Hardware installation
Before starting to use the computer with the motherboard installing the components on it,
please make sure complete the following steps:
1.
To verify the settings of your motherboard
2.
To install the CPU
3.
To install the system memory
4.
To install the expansion cards
5.
To connect with ribbon cables, panel wires, and power supply
6.
To setup BIOS
7.
To install software driver & utility

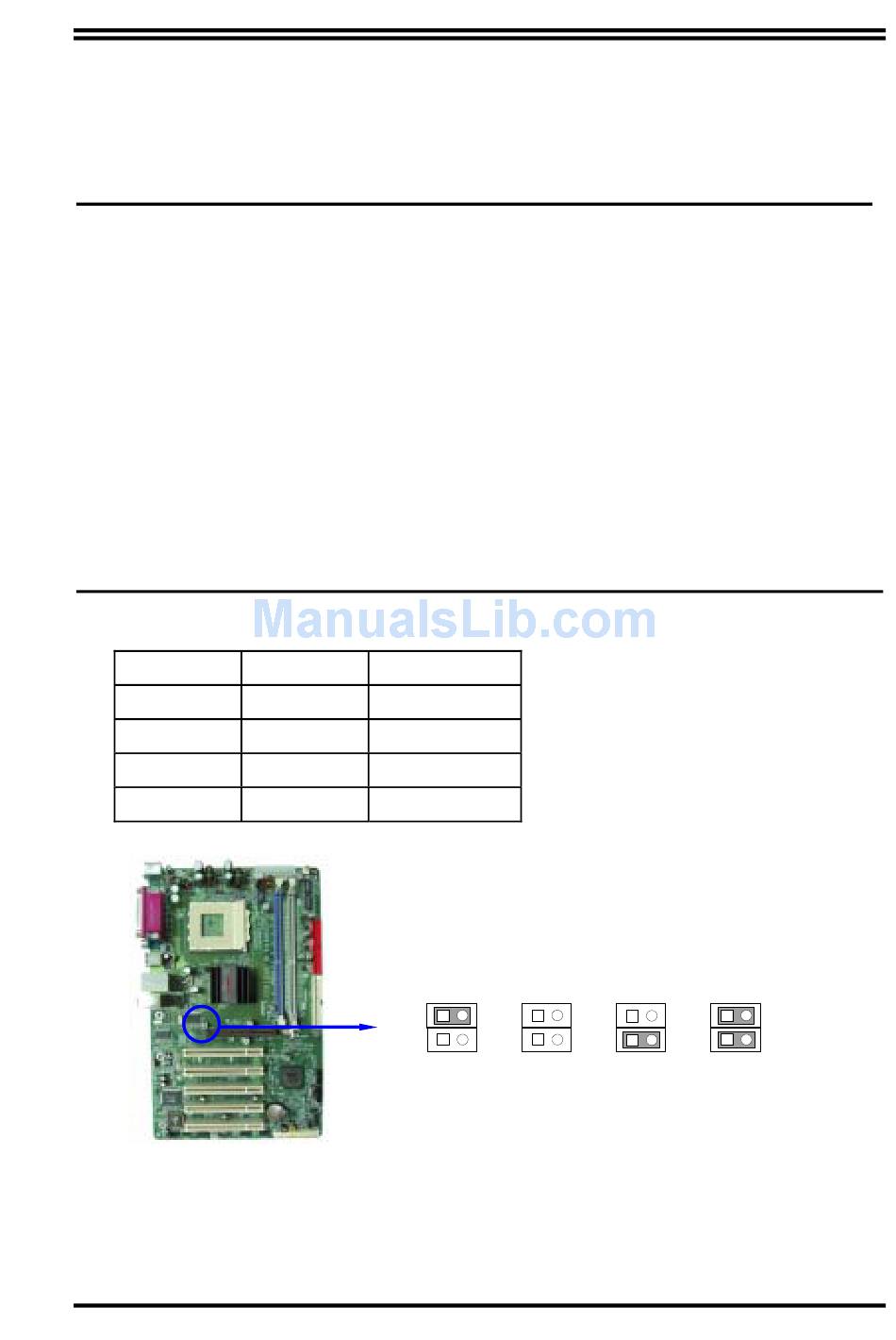

2-2 To verify the jumper settings of the motherboard
(1) CPU Front Side Bus Frequency Setting (2x2-pin) : JP2, JP3
JP2
ON
OFF
OFF
ON
Chapter 2
JP3
CPU CLK
OFF
100MHz
OFF
133MHz
ON
166MHz
ON
200MHz
JP2
JP3
1
100MHz
CPU Front Side Bus Frequency Setting
(Default)
JP2
JP2
JP3
JP3
2
1
2
1
133MHz
166MHz
(Default)
6
JP2
JP3
2
1
2
200MHz
