Layout Diagram & Jumper Setting - JETWAY V880DASR2A User Manual

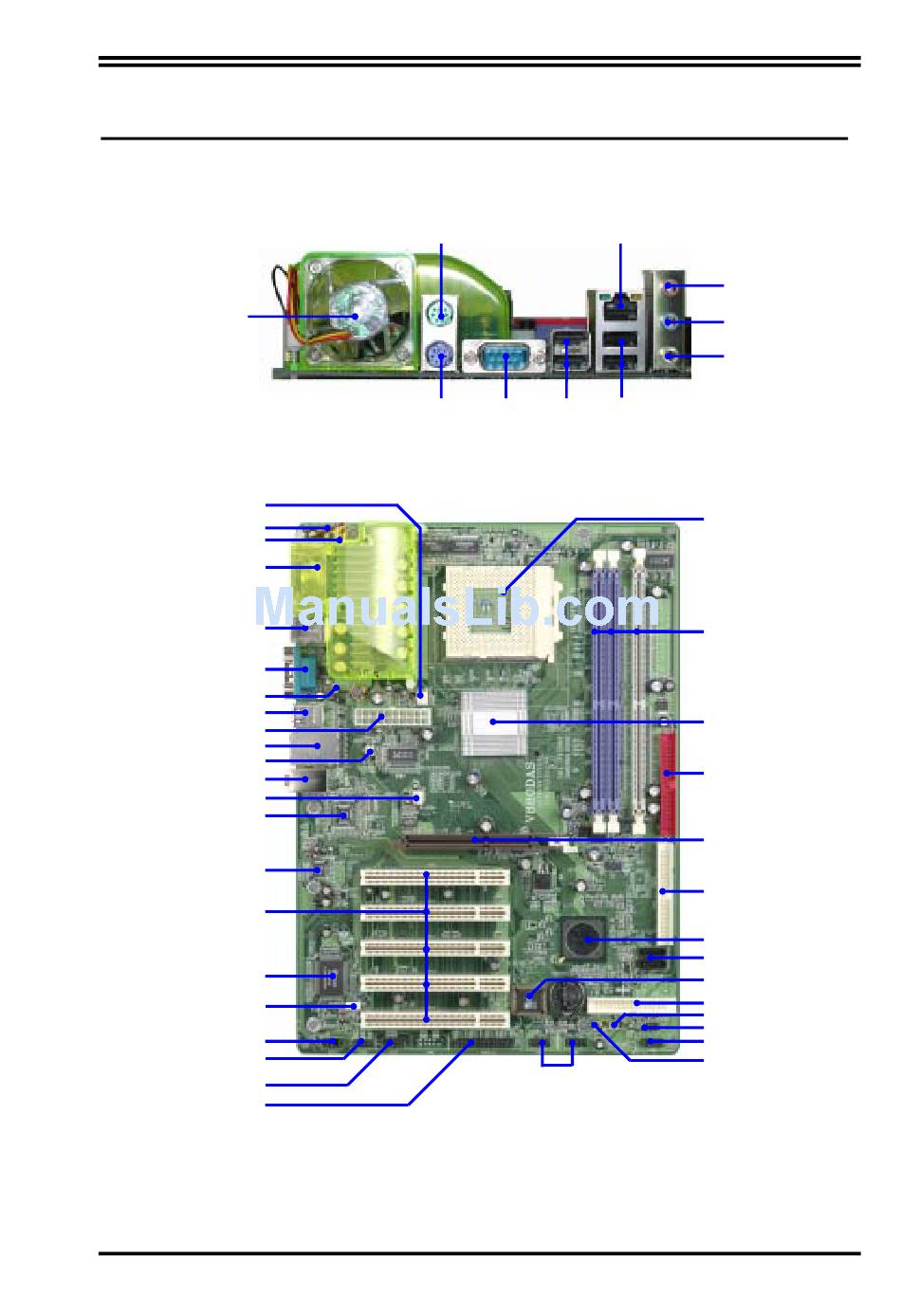

1-4 Layout Diagram & Jumper Setting
Magic Duct
CPU FAN
K/B Power ON Jumper (JP1)
SFAN2
Magic Duct
PS2 KB/Mouse Port
COM1 Connector
USB Power On Jumper (JP2)
USB Port
ATX Power Connector
USB Port/LAN Connector
CPU F.S.B. Frequency Selector
(JP3, JP4)
Audio Connector
SFAN1
VT6103L LAN Chip
AC97' Audio Codec
PCI Slot
Winbond 83687THF Chip
Wake On LAN
Front Panel Audio
CD Audio
SPDIF Connector
Parallel Port Connector
PS/2
Mouse
PS/2
COM1 USB1
Keyboard
USB Port
(USB2, USB3)
4
LAN
MIC
LINE-IN
LINE-OUT
USB
CPU Socket
DDR DIMM X3
VIA KT880 Chip
ATA 133 IDE Connector
(IDE1)
AGP 4X/8X Slot
ATA 133 IDE Connector
(IDE2)
VIA VT8237 Chip
Serial-ATA Connector (SATA1, 2)
4MBit Flash ROM BIOS
Floppy Connector
Clear CMOS (JBAT)
Speak/Power LED Connector
Front Panel Connector
USB Power On Jumper
(JP6)
