Hardware installation

2-1 Pre-Hardware installation

Before starting to use the computer with the motherboard installing the components on it,
please make sure complete the following steps:
1. To verify the settings of your motherboard
2. To install the CPU
3. To install the system memory
4. To install the expansion cards
5. To connect with ribbon cables, panel wires, and power supply
6. To setup BIOS
7. To install software driver & utility

2-2 To verify the jumper settings of the motherboard

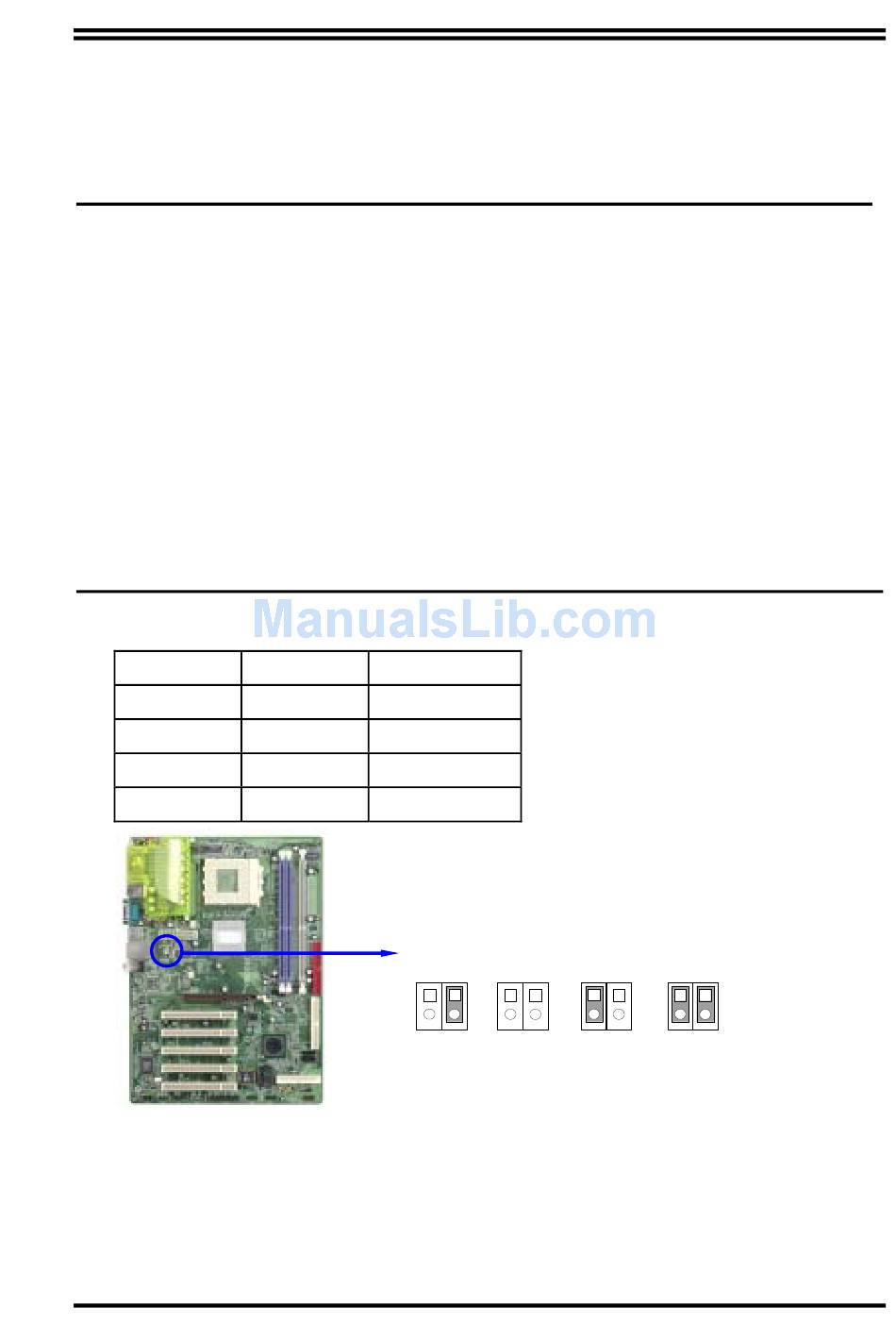

(1) CPU Front Side Bus Frequency Setting (2x2-pin) : JP3, JP4
JP3
OFF
OFF
ON
ON
Chapter 2
JP4 CPU CLK
ON 100MHz
OFF 133MHz
OFF 166MHz
ON 200MHz
JP3 JP4
1
2
100MHz
CPU Front Side Bus Frequency Setting
(Default)
JP3 JP4 JP3 JP4
1 1
2 2
133MHz 166MHz
(Default)
6
JP3 JP4
1
2
200MHz
