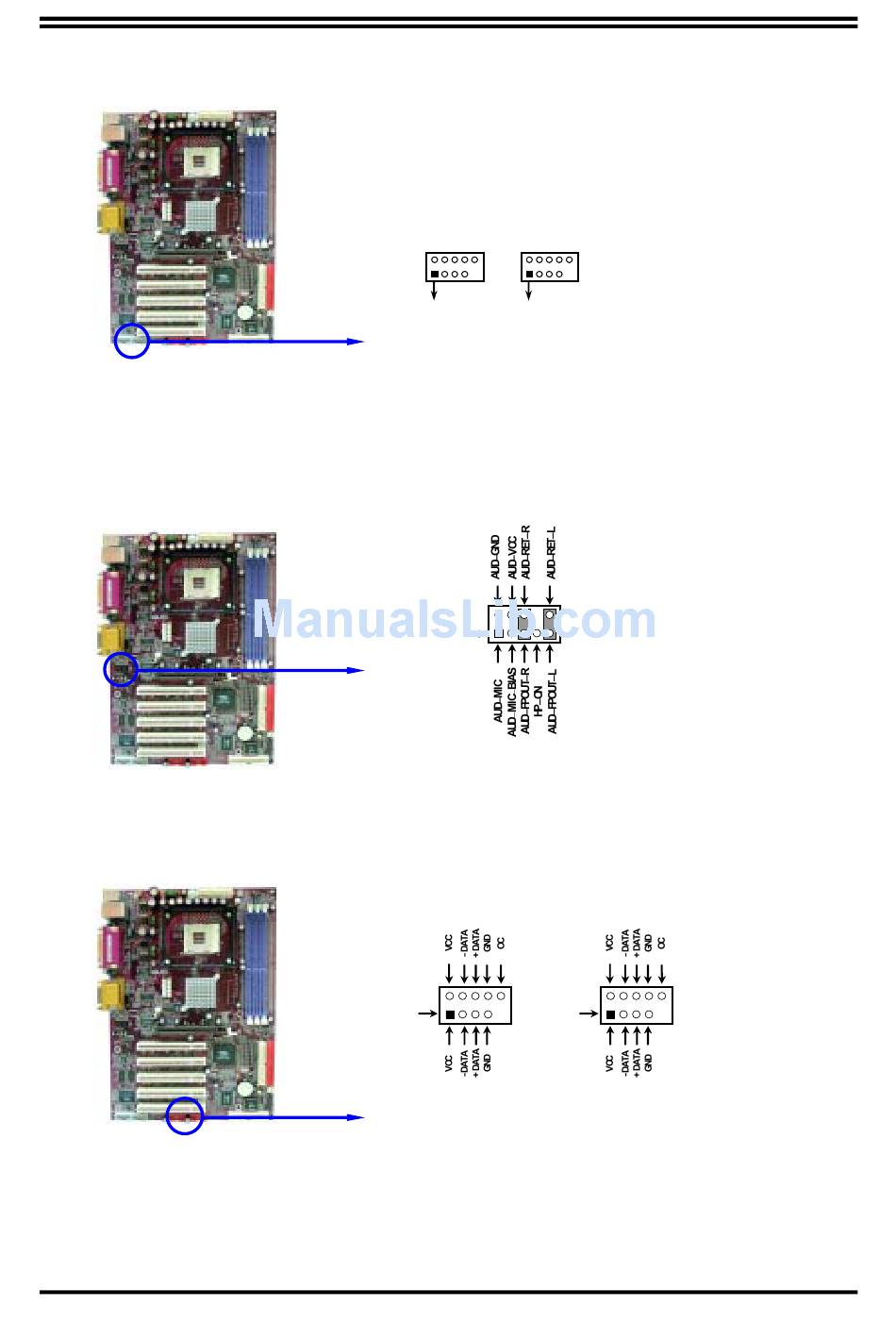

IEEE 1394A Port Header (9-pin) : 1394A/1394B (For P4X400DBZ only)
(2)
Line-Out/MIC Header for Front Panel (9-pin): AUDIO
This header connect to Front Panel Line-out, MIC connector with cable.
Without install the cable, this header default setting is 5-6 short, 9-10 short. When you
install the cable you have take off these jumpers.
(3)
USB Port Headers (9-pin) : USB1, USB2
These headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
(4)
IDE Activity LED: HD LED
Note: Orient the read marking on the
1394 ribbon cable to pin 1
1394A
1394B
2
10
2
9
Pin 1
Pin 1
IEE1394A Port Header
AUDIO
2
Pin 1
Line-Out, MIC Headers
USB1
Pin 1
USB Port Headers
15
10
9
10
9
USB2
Pin 1
