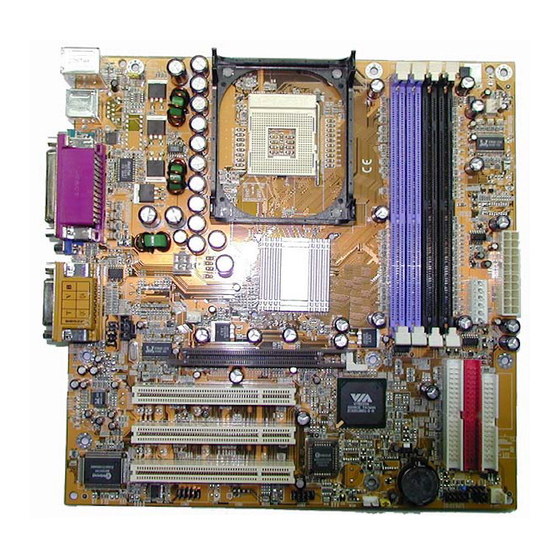

P4XFM/P4XFMU/P4MFM/P4MFMU
P4MFU533/P4MFP533
P4MFU533T/P4MFP533T
USER'S MANUAL
M/B For Socket 478 Pentium 4 Processor
NO. G03-P4XFMR9A
Release date: March 2003
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
