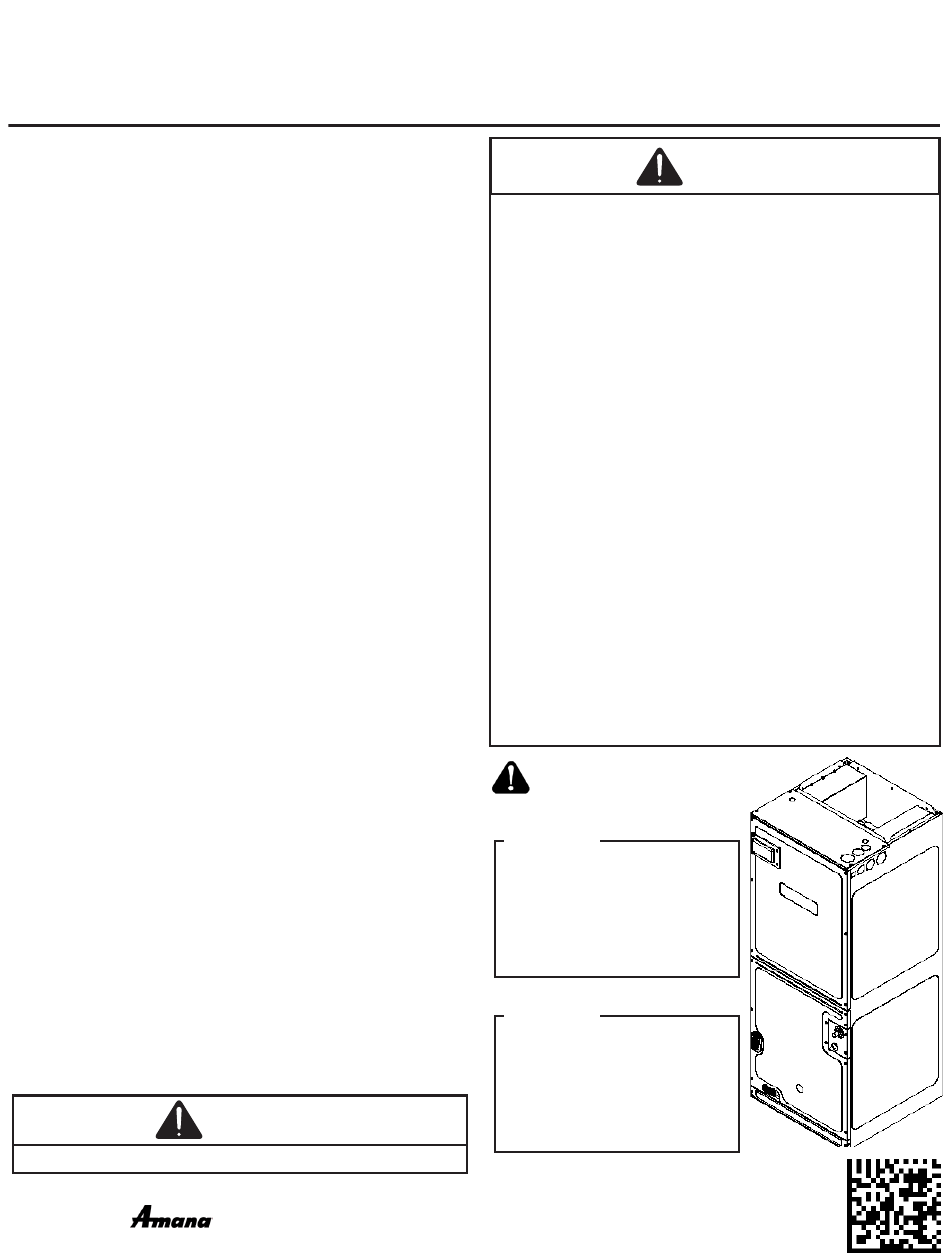

AHVE***P1300**
AIR HANDLERS
INSTALLATION & OPERATING INSTRUCTIONS
1 Important Safety Instructions ............................................................... 2
2 Shipping Inspection ............................................................................... 3
2.1 Parts ........................................................................................................ 3
2.2 Handling .................................................................................................. 3
3 Codes & Regulations ............................................................................. 3
4 Replacement Parts................................................................................. 4
5
Pre-Installation Considerations ........................................................... 4
5.1 Preparation .............................................................................................. 4
5.2 System Matches ...................................................................................... 4
5.3 Interconnecting Tubing ............................................................................ 4
5.4 Clearances .............................................................................................. 4
5.5 Horizontal Applications ............................................................................ 5
6
Installation Location ............................................................................. 5
6.1 Upflow Installation ................................................................................... 5
6.2 Horizontal Left Installation ....................................................................... 5
6.2.1 Instructions To Relocate A2L Sensor Bracket Assembly From Upflow
To Horizontal Left .......................................................................................... 5
6.3 Downflow/Horizontal Right Installation .................................................... 8
6.3.1 Instructions To Relocate A2L Sensor Bracket Assembly From
Downflow To Horizontal Right ....................................................................... 9
7 Refrigerant Lines ................................................................................... 9
7.1 Tubing Size .............................................................................................. 9
7.2 Tubing Preparation .................................................................................. 9
7.3 Tubing Connections ............................................................................... 10
8 Condensate Drain Lines ...................................................................... 11
9 Ductwork............................................................................................... 12
9.1 Return Ductwork .................................................................................... 12
10 Return Air Filters ................................................................................ 12
11 Electric Heat ....................................................................................... 12
12 Electrical and Control Wiring ............................................................ 14
12.1 Building Electrical Service Inspection .................................................. 14
12.2 Wire Sizing .......................................................................................... 14
12.3 Maximum Overcurrent Protection (MOP) ............................................ 14
12.4 Electrical Connections – Supply Voltage ............................................. 14
12.4.1 Air Handler Only (Non-Heat Kit Models) ........................................... 15
12.4.2 Air Handler - Non-Circuit Breaker Heat Kits ..................................... 15
12.4.3 Air Handler With Circuit Breaker Heat Kit ......................................... 15
12.5 Low Voltage Connections .................................................................... 15
13 Achieving 1.4% & 2% Low Leakage Rate ........................................ 15
14 Airflow Trim ........................................................................................ 15
15 Miscellaneous Start-Up Checklist .................................................... 16
15.1 Auxiliary Alarm Switch ......................................................................... 16
15.2 Circulator Blower ................................................................................. 17
15.3 Motor Orientation ................................................................................. 17
15.4 Accessory Contacts ............................................................................. 18
15.5 Leak Detection Output (Relay K4R) .................................................... 18
16 Troubleshooting .................................................................................. 19
16.1 Electrostatic Discharge (ESD) Precautions ....................................... 19
16.2 Diagnostic Chart ................................................................................. 19
16.3 Fault Recall......................................................................................... 19
17 Fully Communicating Amana® Brand System ................................. 20
17.1 Overview.............................................................................................. 20
17.2 Airflow Consideration ........................................................................... 20
17.3 Thermostat Wiring ............................................................................... 20
DO NOT BYPASS SAFETY DEVICES
WARNING
is a registered trademark of Maytag Corporation or its related companies and is used under license.
© 2024-2025
Daikin Comfort Technologies Manufacturing, L.P.
19001 Kermier Rd., Waller, TX 77484
www.goodmanmfg.com - or - www.amana-hac.com
P/N: IOA-4054B Date: January 2025
ONLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL,
ADJUST, SERVICE, MAINTENANCE OR REPAIR
(HEREINAFTER, "SERVICE") THE EQUIPMENT SPECIFIED IN
THIS MANUAL SHOULD SERVICE THE EQUIPMENT.
THIS EQUIPMENT IS NOT INTENDED FOR USE BY
PERSONS (INCLUDING CHILDREN) WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR
LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY
HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION
CONCERNING USE OF THE APPLIANCE BY A PERSON
RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT
THEY DO NOT PLAY WITH THE EQUIPMENT.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR
ANY INJURY OR PROPERTY DAMAGE ARISING FROM
IMPROPER SUPERVISION, SERVICE OR SERVICE
PROCEDURES. IF YOU SERVICE THIS UNIT, YOU ASSUME
RESPONSIBILITY FOR ANY INJURY OR PROPERTY
DAMAGE WHICH MAY RESULT. IN ADDITION, IN
JURISDICTIONS THAT REQUIRE ONE OR MORE LICENSES
TO SERVICE THE EQUIPMENT SPECIFIED IN THIS
MANUAL, ONLY LICENSED PERSONNEL SHOULD
SERVICE THE EQUIPMENT. IMPROPER SUPERVISION,
INSTALLATION, ADJUSTMENT, SERVICING, MAINTENANCE
OR REPAIR OF THE EQUIPMENT SPECIFIED IN THIS
MANUAL, OR ATTEMPTING TO INSTALL, ADJUST, SERVICE
OR REPAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL
WITHOUT PROPER SUPERVISION OR TRAINING MAY
RESULT IN PRODUCT DAMAGE, PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION.
NOTE
Specifications and performance
data listed herein are subject to
change without notice.
This equipment is only approved
for use with R-32 Refrigerant.
NOTICE
If an "Ed" error is encountered
on startup, verify that the electric
heater DIP switches have been
set to the appropriate heater
size. See Tables 11 and 14 for the
heater kit airflow delivery and DIP
switch settings.
All rights reserved.
WARNING
