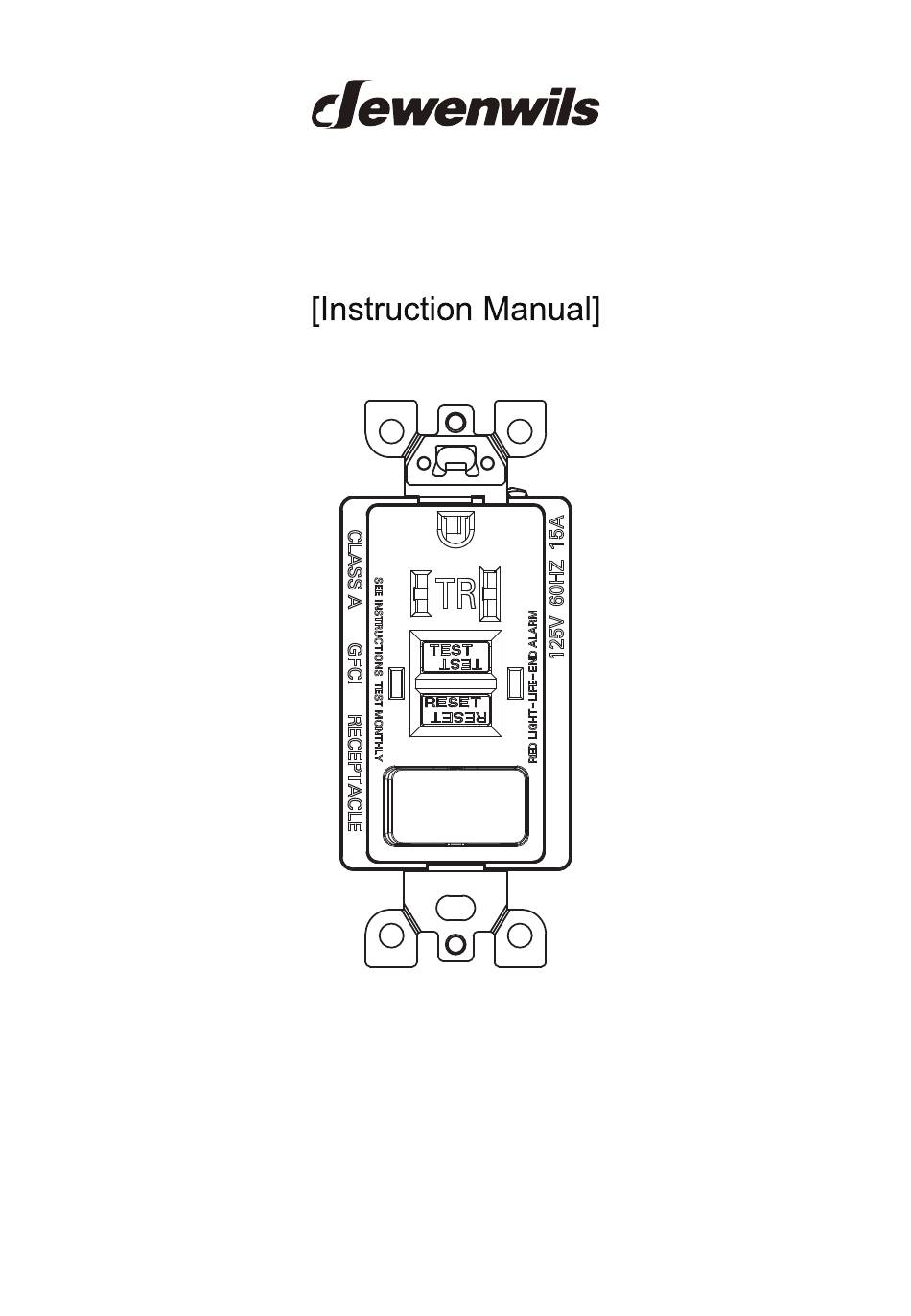

- Page 1 GFCI Receptacle with Combination Switch Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V40424...
- Page 2 Warning 1.To prevent severe shock or electrocution always turn the power OFF at the service panel before working with wiring. 2.Use this GFCI receptacle with copper or copper-clad wire. Do not use it with aluminum wire. 3.Do not install this GFCI receptacle on a circuit that powers life support equipment because if the GFCI trips it will shut down the equipment.
- Page 3 BACK VIEW Grounding terminal (green): Screw(terminal) colours: Connection for bare Green-grounding terminal copper or green wire. silver-white terminal Brass-hot terminals LINE LINE White terminal(silver): White terminal(silver): Connection for the Connection for the LINE cable's black wire. LINE cable's white wire. LOAD LOAD Hot terminal(brass):...
- Page 4 Procedure: box with two cables Placement in circuit: (4-6 wires) The GFCI's place in the circuit (a) Detach one cable's white and determines if it protects other hot wires from the receptacle receptacles in the circuit. and cap each one separately Sample circuit: with a wire connector.
- Page 5 LINE cable brings power to the GFCI Grounding connection to box (if box has a grounding terminal) Wire connector ABOUT WIRE CONNECTIONS: Screw terminal Wire 1inch Back wire holes SIDE WIRE Wire .6 inches Clockwise, 2/3 of the way around screw 2.
- Page 6 Connect the LINE cable wires to the LINE terminals: • The white wire connects to the White terminal (Silver) • The black wire connects to the Hot terminal (Brass) Connect the grounding wire (only if there is a grounding wire): •...
- Page 7 Connect the LINE cable wires to the LINE terminals: • The white wire connects to the White terminal (Silver) • The black wire connects to the Hot terminal (Brass) Connect the LOAD cable wires to the LOAD terminals: • The white wire connects to the White terminal (Silver) •...
- Page 8 Using the wiring method shown in the diagram, the switch on the product can control the power on and off of the GFCI outlet on the product. Warning •In this wiring configuration, only appliances rated for a voltage of 125V, a current of less than 6A, and a power rating of less than 750W can be plugged into the GFCI outlet.
- Page 9 (e) This is an auto-monitoring GFCI receptacle. It conducts an automatic test every 5 seconds, ensuring it is always ready to provide protection. The GFCI receptacle has reached its end of life when the GFCI: 1 – repeatedly trips when RESET is attempted 2 –...
