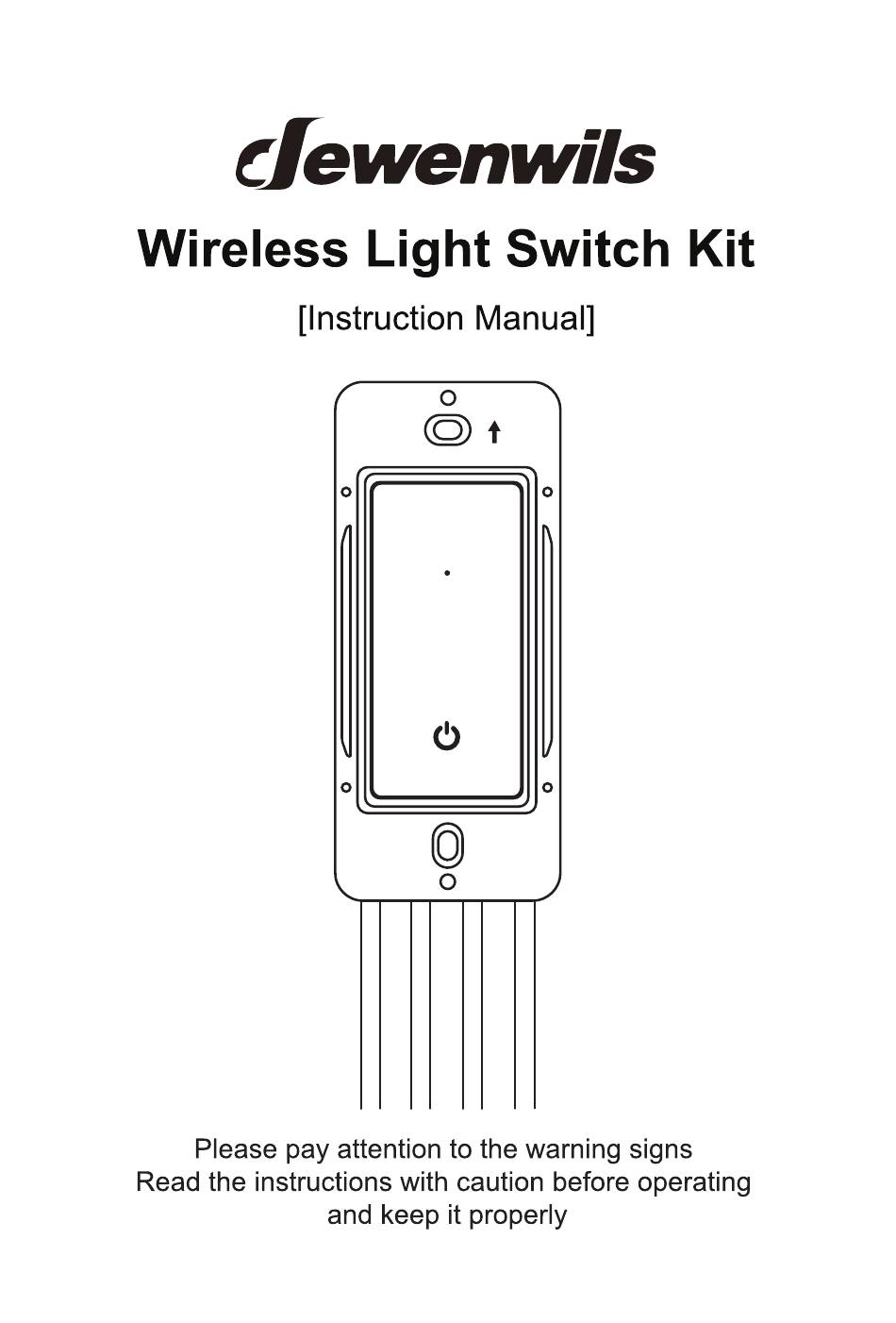

- Page 1 V40312...
- Page 2 Indicator Indicator Program/ON/OFF Button ON/OFF Button...
- Page 3 Wire the Wireless Light Switch Attention: Connection to a neutral wire is essential for the wireless switch to work.” If there is no neutral, please try call an electrician for help. 1.Before installation, turn off the individual circuit breaker that supplies power to the circuit you are working on.
- Page 4 Wiring method 2： POWER Wireless Light Traditional Switch Switch 3-Way Wiring Diagram The wireless switch must replace the existing switch that is FIRST in the circuit and receives constant power. The SECOND switch receives power ONLY when both switches are HOT and power is supplied to the load.
- Page 5 Note:The following wiring methods will cause the wireless light switch to not work properly. POWER Wireless Light Traditional Switch Switch POWER Wireless Light Wireless Light Switch Switch POWER Wireless Light Traditional Dimmer or Smart Dimmer Switch Operating Instructions 1.Remove the isolation tab in the battery compartment of the transmitter.
- Page 6 Note: 1.The program button of the receiver can also be used as a manual switch. 2.The receiver will remain "OFF" after a power cut to save energy. 1.Separate the upper and lower shells of the Wall Switch. Way1 Way2...
- Page 7 2.Install Wall Plate Way1: Secure the lower housing of the wall switch to the wall using the provided mounting screws. Way2: Secure the lower housing of the wall switch inside the wall box using the provided mounting screws. 3.Attach the upper shell to the lower shell. 4.Attach the transmitter to the base.
- Page 8 5.Press the ON/OFF button on the wall switch remote control to turn the receiver on and off.
- Page 9 immediate use...
- Page 10 2.Release the program button and then press the button on the remote control.
-
Page 11: Battery Handling And Usage
Replacing the battery If you find the receiver works abnormally or the indicator on the remote control becomes dim, please replace the battery. - Turn the remote control to the back.(The black circle is the buckle). PUSH PULL OUT - Push the buckle to the right while pulling out the battery cover. - Remove the battery compartment cover away from the remote. -
Page 12: Troubleshooting
·NON-RECHARGEABLE BATTERIES ARE NOTTO BE RECHARGED. ·DO NOTFORCE DISCHARGE, RECHARGE, DISASSEMBLE, HEATABOVE (MANUFACTURER'S SPECIFIED TEMPERATURE RATING) OR INCINERATE. DOING SO MAY RESULTDUE TO VENTING, LEAKAGE OR EXPLOSION RESULTING IN CHEMICAL BURNS. · ENSURE THE BATTERIES ARE INSTALLED CORRECTLY ACCORDING TO POLARITY (+AND-). ·DO NOT MIX OLDAND NEW BATTERIES,DIFFERENT BRANDS OR TYPES OF BATTERIES, SUCH AS ALKALINE,CARBON-ZINC,OR RECHARGEABLE BATTERIES. -
Page 13: Specifications
1. If the wire switch receiver is unresponsive to the remote control, please refer to the "Canceling Programming" and "Programming the Receiver" sections in the manual to reprogram the receiver. 2. Make sure the receiver and appliance are properly connected and powered on. - Page 14 the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
-
Page 15: One Year Limited Warranty
One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date. Please note that the warranty does not cover damage caused by personal misuse or improper installation. Please attach your Order ID and Name so that our dedicated customer service team can help you better.
