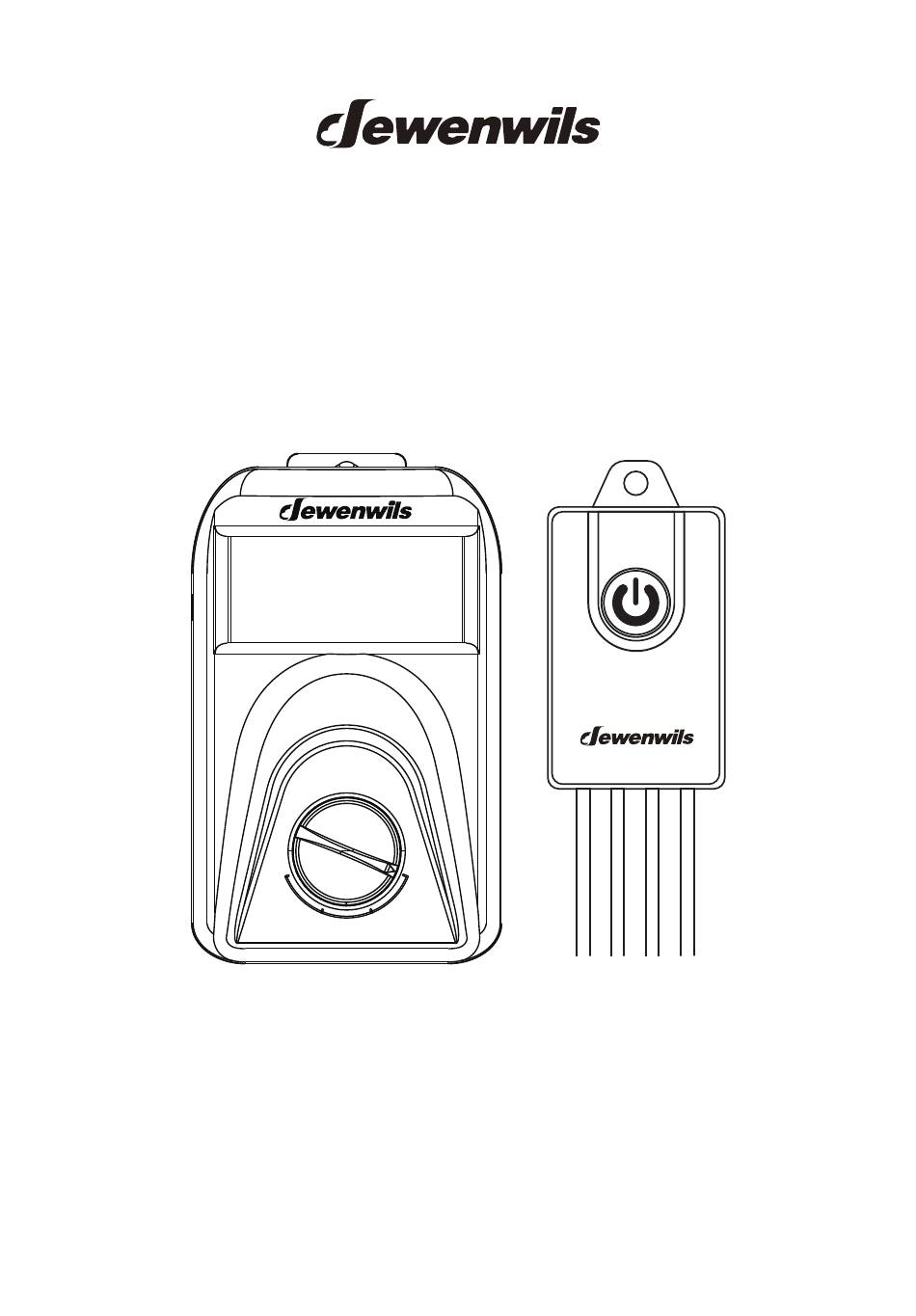

- Page 1 Wireless Motion Sensor Light Switch [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31008...
- Page 2 Warning: To reduce the risk of fire, electric shock, or personal injury,please strictly follow the instructions. 1.Indoor use only.Avoid high humidity, high temperature, and areas with a high magnetic field. 2.Always be sure to cut off the power before installing the receiver. 3.
- Page 3 DC 5V power supply port Please use a power adapter with 3.5 x 1.35mm DC head Time Delay Dial Key Pairing Button Battery Function Case Knob Switch Function Introduction The motion/light sensor transmitter has the following 4 modes. Motion Detection Mode: The receiver will be on whenever the sensor detects motion, whether day or night.
- Page 4 Note: To activate the desired function, please rotate the knob switch to the corresponding letter inscribed for that mode. Method of using time delay function When using the "PIR" or "NTM" mode, toggle the "Delayed" switch (on the back of the transmitter) to select the amount of time that the receiver can remain on after the last detected motion, 1 minute, 5 minutes, 15 minutes or 30 minutes are available.
- Page 5 Single Pole Wiring Diagram Line/Hot RF controller Power Load Max.:15A 120V~/60Hz Neutral Input Output Black Ground Load White Neutral White L(Black) N(White) N(White) L(Red) G(Green) Find the NEUTRAL Wires Neutral wire is required to install the wireless light switch.Most likely a bundle of one or more white wires in the wall.
- Page 6 2.At the input "L" Black line is the hot wire,"N" White line is the neutral wire. At the output "L" Red line is the hot wire,"N" White line is the neutral wire. Do not connect the "L" (hot wire) and "IN" (neutral wire)mistakenly. 3.Connect the power to the "input"...
- Page 7 2.Select the desired mode. 3.Hang the transmitter on the fixed bracket. Attention: 1. The transmitter infrared sensing probe can not penetrate glass, walls, wooden doors, screens and other objects; 2. The transmitter installation location should be away from high temperature, high humidity, high magnetic and other air temperature change sensitive places.
- Page 9 1.Press the program button on the receiver for 3 seconds until the indicator light starts to flash slowly. 2.Release the program button, then press the Pairing Button on the back of the transmitter.
- Page 10 4.Repeat Step 1-3 to pair multiple transmitters and receivers. Replacing Battery If you find that the receiver does not work properly or the transmitter does not work, please replace the batteries. Recommended to use "NiMH batteries". Note: 1.Do not mix old and new batteries. 2.Do not mix Alkaline Batteries, Super Heavy Duty Batteries (Zinc-Carbon) or Rechargeable Batteries (NiCd, NiMH, etc.) together.
- Page 11 FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,...
