Summary of Contents for Dewenwils HWLS11N

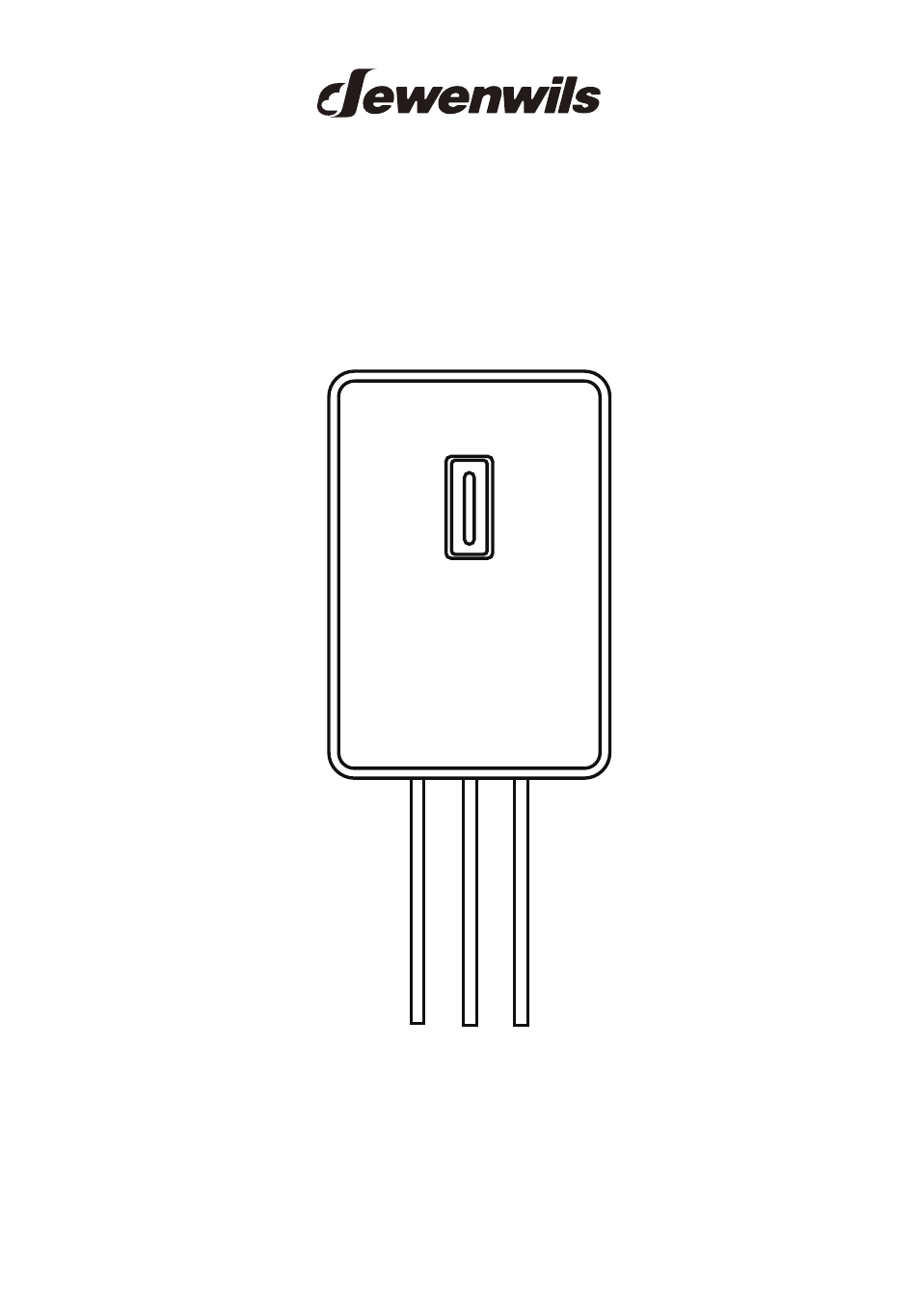

- Page 1 Wireless Light Switch Kit [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V40523...
-
Page 2: Product Layout
WARNING: To reduce the risk of fire, electric shock, or personal injury,please strictly follow the instructions. 1. Indoor use only. Avoid high humidity, high temperature, and areas with a high magnetic field. 2. Always be sure to cut off the power before installing the receiver. 3. -
Page 3: Power Input
Wall Remote Control Transmitter Wiring Diagram Power Input (AC100-125V) Line N(White) L(Black) N(White) N(White) L(Red) Load... - Page 4 Find the NEUTRAL Wires Neutral wire is required to install the wireless light switch.Most likely a bundle of one or more white wires in the wall. Note: If there is no neutral, please try another location or call an electrician for help.
-
Page 5: Programming The Receiver
Programming the Receiver Note: The transmitter and receiver have been pre-programmed for immediate use, but the configuration can be customized to meet your needs. To program a remote transmitter and receiver: 1.Press the program button on the receiver for 3 seconds until the indicator light starts to flash slowly. - Page 6 3.Programming / paring is successful when the indicator light stops blinking. Note: Each set of ON or OFF button can be paired with and control several receivers;Each receiver can be paired and controlled by multiple transmitters. Cancel All Programming Cancel all the programs so that no remote transmitter can control it. 1.Press the program button on the receiver for 6 seconds until the indicator light starts to flash rapidly.(Note: The light flashes from slowly to rapidly.) 2.Release the program button and then press it again.The indicator light...
-
Page 7: Replacing The Battery
No Interference Remote control outlets adopt variable learning codes technology.The codes will be changed each time after re-programming. If this remote control outlet happens to be in the same channels with other RF remote devices, just re-program it and the interference will be eliminated. Replacing the battery If you find the receiver works abnormally or the indicator on the remote control becomes dim, please replace the battery. - Page 8 OR DEATH. ·CALL A LOCAL POISON CONTROL CENTER FOR TREATMENT INFORMATION. ·COMPATIBLE BATTERY TYPE CR2032 LITHIUM BATTERY. ·NOMINAL BATTERY VOLTAGE 3V. ·NON-RECHARGEABLE BATTERIES ARE NOT TO BE RECHARGED. ·DO NOT FORCE DISCHARGE,RECHARGE, DISASSEMBLE,HEAT (ABOVE MANUFACTURER'S SPECIFIED TEMPERATURE RATING) OR INCINERATE. DOING SO MAY RESULT DUE TO VENTING,LEAKAGE OR EXPLOSION RESULTING IN CHEMICAL BURNS.
-
Page 9: Troubleshooting
Troubleshooting In the case that one receiver is unresponsive to the remote control, please follow the steps below to resolve the issue: 1. If the wire switch receiver is unresponsive to the remote control, please refer to the "Canceling Programming" and "Programming the Receiver" sections in the manual to reprogram the receiver. -
Page 10: Safety Information
Safety Information Federal Communications Commission Interference Statement.This equipment has been tested and found to comply with the limits for Class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and. -
Page 11: One Year Limited Warranty
suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
