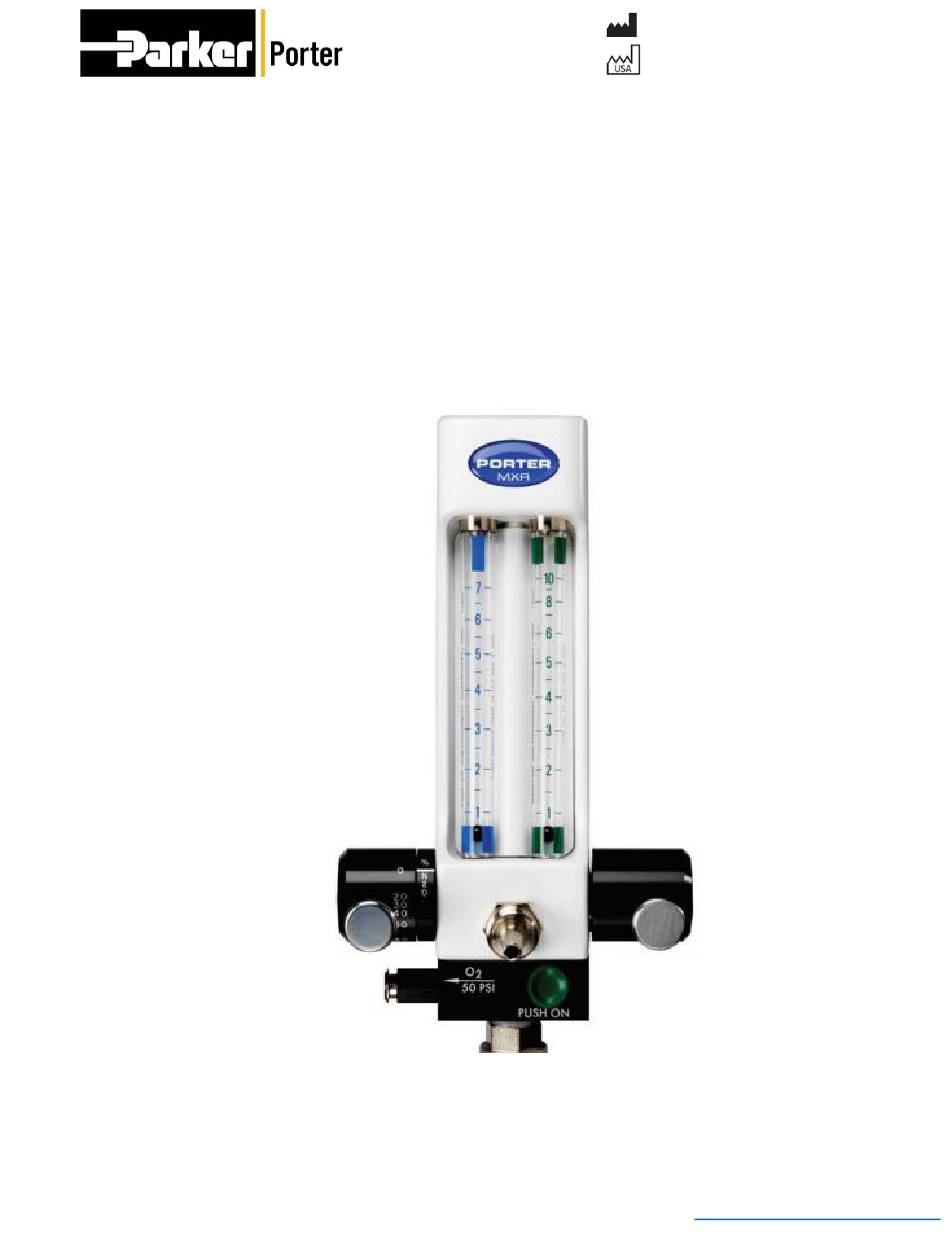

- Page 1 Parker Hannifin Corporation 245 Township Line Road Hatfield, PA 19440 USA Office 215-723-4000 ® Porter MXR Nitrous Oxide/Oxygen Sedation Flowmeter Instructions for Use and Installation Guide FM-825-English Rev. P www.porterinstrument.com 15JAN2025...
- Page 2 Representation Parker Hannifin Corporation Precision Fluidics Division Legal Manufacturer 245 Township Line Road Hatfield, PA 19440 USA Office: (215) 723-4000 European EMERGO Europe Communities Westervoortsedijk 60 Authorized 6827 AT Arnhem, The Netherlands Representative Tel: +31 70 345 8570 Compliance with conformity assessment on quality Conformité...
- Page 3 READ INSTRUCTIONS FOR USE COMPLETELY BEFORE OPERATING THIS DEVICE This document contains warnings, cautions, instructions for use, and maintenance information that the user must completely comprehend before using this device. Failure to properly operate and maintain this device may result in patient/user harm and/or damage to equipment. Table of Contents 1.
- Page 4 1. Device Information Intended Use/Intended Purpose The Porter MXR Flowmeter is intended for use as a continuous flow system to deliver a mixture of nitrous oxide and oxygen gases to a conscious, spontaneously breathing patient. Models The MXR Flowmeter is available in 5 models (described below). Flowmeters are available with different fitting configurations and maximum nitrous oxide (N2O).
- Page 5 User Interface Description Flowmeter Tube O Flowmeter Tube Flow Control Knob Concentration Control Knob Emergency Air Intake Valve Non-Rebreathing Valve Gas Flow On/Off Switch (Push On) Flush Button Quick Connect Breathing Circuit Port Breathing Bag Port General Description/Principles of Operation The MXR Flowmeter is a pneumatically driven gas mixing device that delivers a mixture of nitrous oxide (N O) and oxygen (O...
- Page 6 Use of the Device The MXR Flowmeter is to be used by a healthcare professional trained in the use and administration of N O and O gases. The device is designed for use in a gas delivery and scavenging system for pain management and / or minimal conscious sedation, which is ideal for short, minimally invasive procedures to alleviate patient anxiety or minor pain and discomfort.
- Page 7 Emergency Air Intake Valve: In the event that the O gas supply is depleted or disconnected, and delivery of mixed gas is stopped, an Emergency Air Intake Valve will open that allows the patient to breathe room air through the breathing circuit. WARNING: The MXR Flowmeter is not intended or expected to be used during an MR exam and has not been evaluated for safety and compatibility in the MR environment.
- Page 8 Specifications Dimensions Weight Base: 7.0 in W x 8.75 in H x 5.0 in D 5.6 lbs (2.54 kg) (17.78 cm W x 22.23 cm H x 12.70 cm D) Mixture Settings Delivery Flow Rate O: 1 LPM – 7 LPM O: 0% - 50% / 70% : 1 LPM –...
- Page 9 Mounting the MXR Flowmeter Wall Arm Mount 1 Remove cap from the mounting post assembly. Place angle mount (located on rear of Flowmeter) over post. Replace cap on top of mounting post. 1) Position the small diameter of cap (1) down to allow for swivel mounting.
- Page 10 Connecting Supply Lines WARNING: Always use clean, dry, medical grade gases and never oil or grease any part of the device. WARNING: Do not change the connection fitting type or diameter of the supply hoses. The Diameter Indexed Safety System (DISS) is designed to prevent misconnection of O and O supply lines Gas Supply Line Connection...
- Page 11 Optional Directional “Y” Valve Connection Verify that the sealing O-ring is in place. Place directional “Y” valve adapter (1) over the patient connector port of the MXR Flowmeter. Ensure adapter is fully seated on connector. Attach right angle adaptor (2) to each of the gas outlet connections (3).
- Page 12 3. Instructions for Use Setup and Prechecks WARNING: To minimize the risk of fire or explosion: • Always ensure cylinder valves are clear of dust and dirt prior to connection. One method to clear dust and dirt is to briefly “crack” the cylinder valve open to blow out any debris in the line before installing the cylinder.
- Page 13 Operating Instructions Turn On/Off Switch (1) Adjust the Concentration Control Knob (2) to 0% N Adjust Flow Control Knob (3) to set the desired O flow rate. Before the procedure starts, desired, press the O Flush Button (4) to pre-fill the breathing bag (if connected) with 100% O ensuring the patient’s first breath is not from an...
- Page 14 4. Maintenance The MXR Flowmeter requires proper maintenance, pre-checks, and servicing according to the following table. It is recommended to return the device to the manufacturer for servicing every 2 years. Once the device reaches an age of 20 years, a failed pre-check will indicate that the device has reached the end of its useful life.
- Page 15 Concentration Control Knob Test: Set Concentration Control Knob to 50%. Set Flow Control Knob to 2 – 3 L/min. Ball indicators will be at about the same height. If ball indicators are not at about the same height, contact your authorized distributor for service and troubleshooting.
- Page 16 Cleaning The MXR Flowmeter must be cleaned between each use in order to prevent the spread of infections. Cleaning the device has been validated with Super Sani-Cloth Germicidal wipes. WARNING: The following warning applies to the device and any device’s components and accessories: •...
- Page 17 5. Symbols Glossary The following symbols may use throughout this document, as well as on device labels and packaging. Symbol Title of Symbol Description of Symbol Indicates the medical device manufacturer and is accompanied by the name and address of the Manufacturer manufacturer.
- Page 18 Symbol Title of Symbol Description of Symbol Indicates the need for the user to consult the instructions for use for important closeary information such as warnings and precautions that cannot be Caution presented on the medical device itself. (EN ISO 15223-1:2021, clause 5.4.4) Indicates important cautionary or warning information to the user that is presented in the instructions for Caution/Warning...
- Page 19 Parker Hannifin Corporation. Parker Hannifin Corporation shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the product or otherwise, if, prior to such damage, injury or loss, the product was (1) damaged or misused;...
