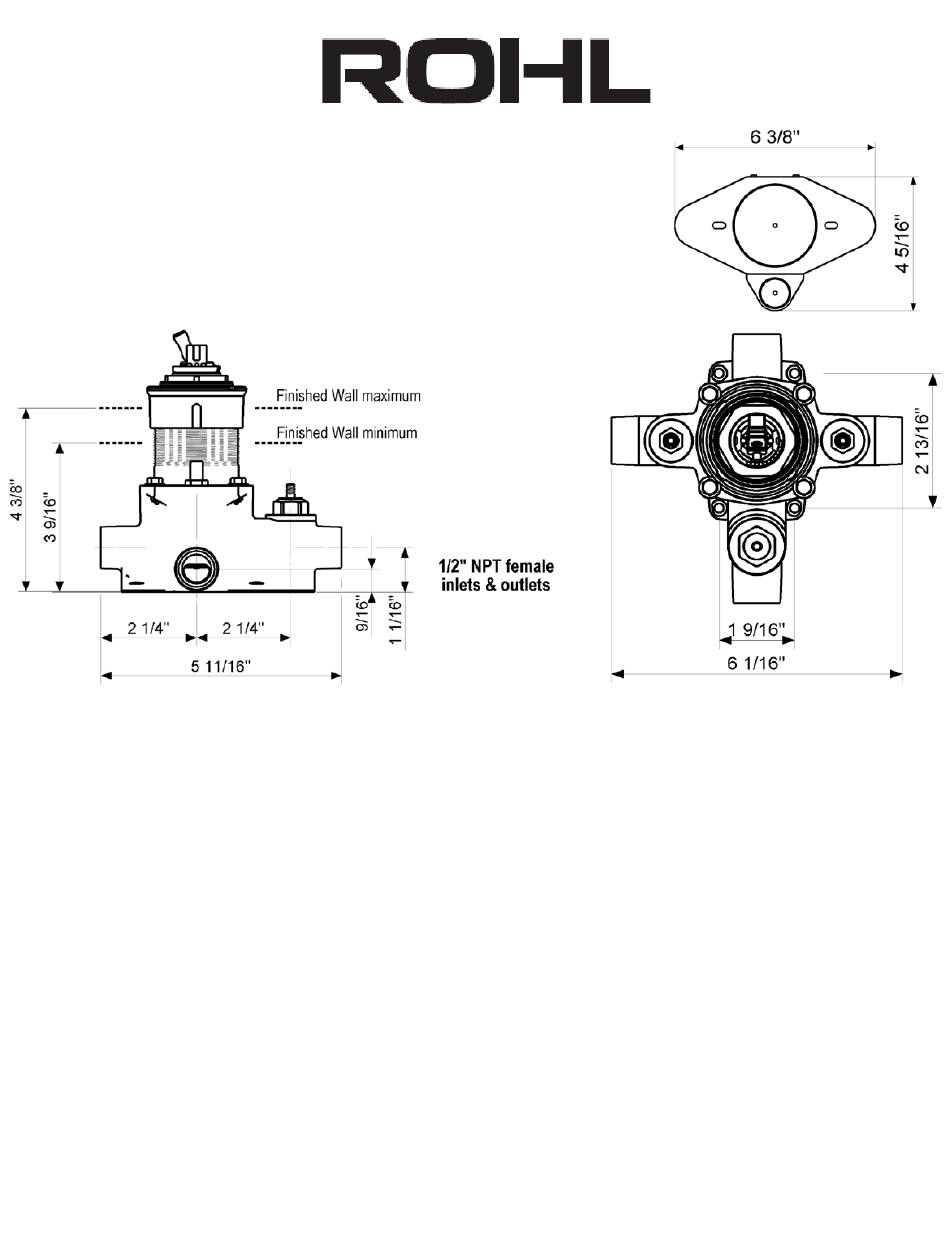

Mudquard Dimensions
ROHL R2014C
Pressure Balance
Shower Mixer with Diverter
For R2015 or MB1939 trim sets
1559 Sunland, Costa Mesa, CA 92626
Ph (714) 557-1933 Fax (714) 557-8635
Web site: www.rohlhome.com
ROUGH ONLY MUST ORDER TRIM SET TO COMPLETE SHOWER PACKAGE
41654 03/07
Advertisement
Related Manuals for Rohl R2014C
Summary of Contents for Rohl R2014C
- Page 1 Mudquard Dimensions ROHL R2014C Pressure Balance Shower Mixer with Diverter For R2015 or MB1939 trim sets 1559 Sunland, Costa Mesa, CA 92626 Ph (714) 557-1933 Fax (714) 557-8635 Web site: www.rohlhome.com ROUGH ONLY MUST ORDER TRIM SET TO COMPLETE SHOWER PACKAGE...
- Page 2 R2014C ROHL DESCRIPTION NUMBER Faceplate Nut R945440 Threaded Ring Nut R946454 Pressure balance flow control cartridge R9260912 Flanged bolt set of 4 R945554 Upper body complete R9551560 A-036 'O'ring R9200036 12 x 2 metric 'O' ring set of 4 R920122...
- Page 3 GENERAL NOTES: 1. The R2014 is the rough only. Purchase the correct trim set to complete the package. 2. The diverter (shower) outlet is at the top 3. Do not disassemble the valve. It has been tested at the factory and does not leak. Disassembly of the valve may cause a leak.
- Page 4 GUARANTEE TO THE CONSUMER: WARRANTY: Rohl LLC warrants this product to be free from defects in materials or workmanship for as long as the original consumer purchaser owns their home. Rohl LLC will provide free of charge, at its option, replacement part/s or product (or a comparable alternative product) to replace those which have proven defective in materials or workmanship.
