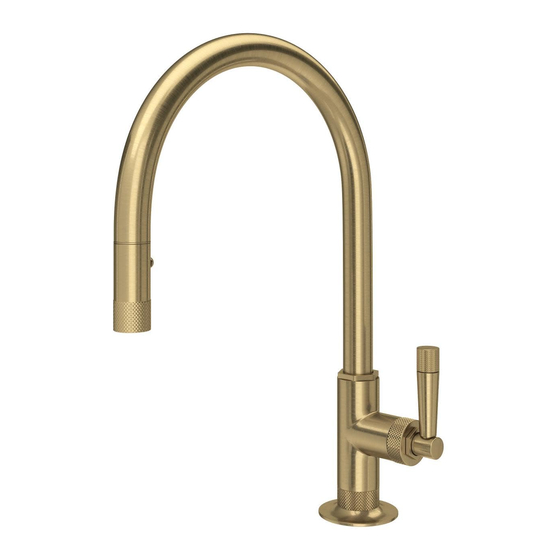

Pull-down Main Kitchen and Bar/Food PreP Faucets
MB7930LM
The faucet can dispense water temperatures up to
208.4° F (98° C) depending on the setting of your hot
water tank. Use care when operating this appliance.
Michael BerMan Graceline
MB7930LM
15"
9 1/16"
7"
Ø1 3/8"
HOLE
9/16"
RECOMMENDED WORKING PRESSURE
Min 1.5bar / 22psi | Max 5bar / 75psi
1 3/4"
MAX
9/16"
Advertisement
Related Manuals for Rohl Michael Berman Graceline MB7930LM
Summary of Contents for Rohl Michael Berman Graceline MB7930LM
- Page 1 Michael BerMan Graceline Pull-down Main Kitchen and Bar/Food PreP Faucets MB7930LM MB7930LM 9 1/16” 15” 1 3/4” 7” Ø1 3/8” HOLE 9/16” 9/16” The faucet can dispense water temperatures up to RECOMMENDED WORKING PRESSURE 208.4° F (98° C) depending on the setting of your hot Min 1.5bar / 22psi | Max 5bar / 75psi water tank.
-
Page 2: Installation
Michael Berman Graceline Collection Installation & User Guide Congratulations on the purchace of your ROHL product. Correctly installed and with sensible care, this product will give you many years of trouble free service. IMPORTANT INFORMATION Before you proceed... We recommend you engage the services of a registered plumber / builder to install this product. - Page 3 Michael Berman Graceline Collection Installation & User Guide 4 Installation Planning Ensure there is ample room in the space under the work surface for the hoses and weight to move freely. Test that the spray head extends far enough by pulling it out. The spray head should retract smoothly and fit back in place comfortably.
- Page 4 Michael Berman Graceline Collection Installation & User Guide MB7930LM Ø15/16 3” 3/16 9” 10/16 1” 25/64 2” 35/64 1” 21/64 9/16"...
- Page 5 Michael Berman Graceline Collection Installation & User Guide MB7930SLM Ø15/16 6” 11/16 3” 3/16 1” 21/64 1” 25/64 2” 35/64 9/16"...
- Page 6 Accessories and spare parts Installation & User Guide MB7930LM...
- Page 7 Accessories and spare parts Installation & User Guide MB7930SLM...
- Page 8 Please contact the local retailer or showroom where you purchased this product for all warranty related claims. sPare Parts & serVice We would like to thank you for purchasing a Rohl product and take this opportunity to invite you to look at other luxury products.
