9.20860*
9.13841
9.26860*
9.01840*
9.18381*
9.12840*
9.28512
RINSE VERSION
904885U
Issue 3
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
The Contemporary Kitchen Collection
Installation & User Guide
Contemporary Mimas Mono Sink
• U.4841LS-2

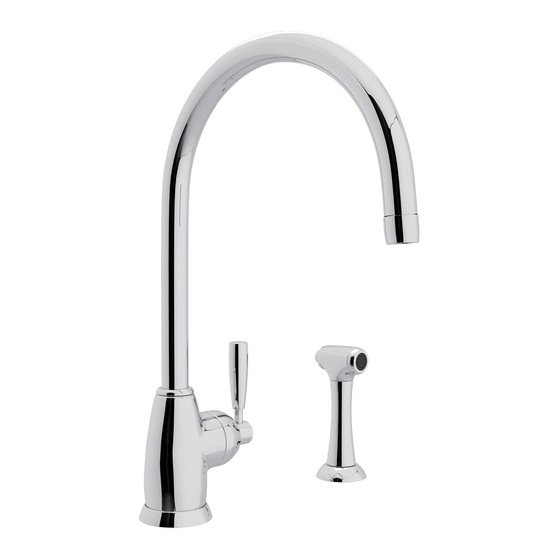

C-Spout Mono Mixer
• U.4846LS-2
C-Spout W/Rinse
• U.4842LS-2 Bar Spout Mixer
1. 3/8"
HOLE
COLD IN
HOT IN
1/2"
1/2"
1. 3/8"
HOLE
Temp Range:
Min 1°C/34°F
Max 85°C/185°F
Recommended
HOT IN
Working Pressure:
1/2"
Max5bar/75psi
Min 1bar/15psi
Ideal performance obtained with equal hot & cold pressures.
Mixer with Rinse
1.3/8"
HOLE
COLD IN
1/2"
HOT IN
1/2"
COLD IN
1/2"
www.rohlhome.com
1.1/8" HOLE
3
Advertisement
Related Manuals for Rohl PERRIN & ROWE MAYFAIR LONDON U.4841LS-2
Summary of Contents for Rohl PERRIN & ROWE MAYFAIR LONDON U.4841LS-2
- Page 1 1/2" Min 1bar/15psi atalogue. Ideal performance obtained with equal hot & cold pressures. 904885U Issue 3 Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
- Page 2 Do not use proprietary abrasive liquids Ensure all connections are firmly tightened products with ammonia bleach or lime guarantee. Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
- Page 3 You will damage the plated finish and void your guarantee. Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
