Rohl CA2201LMAPC-2 Installation Instructions

After installation:.
1.
Test the faucet for leaks.
Test the pop-up escutcheon for leaks with the water running.
Care and Maintenance: After use, wipe down with a soft, dry cloth.
For all chrome plated surfaces clean this product with warm soapy water and then dry with a dry
soft cloth.
Nickel plated, satin and Inca brass finishes should be cleaned with a soft cloth and warm
water. Then dry with a dry soft cloth.
Do not use cream cleaners or cleaning agents containing a corrosive acid or scouring agent
including: Softscrub, Comet, Ajax and Bonami, as these may damage the surface of the faucet.
Do not use any spray cleaners with ammonia or alcohol like Windex, 409 or Fantastik.
Any use of unsuitable cleaning agents causing damage to the surface will not be covered by the
warranty.
WARRANTY:
Warranty is limited lifetime. See ROHL website for details. (www.rohlhome.com)
A basic in-line filter system is required for the house to protect any debris from entering the
water supply line to the house (i.e. due to construction or service work on the street
water main).
ROHL LLC 3 Parker, Irvine, CA 92618
714-557-1933 www.rohlhome.com

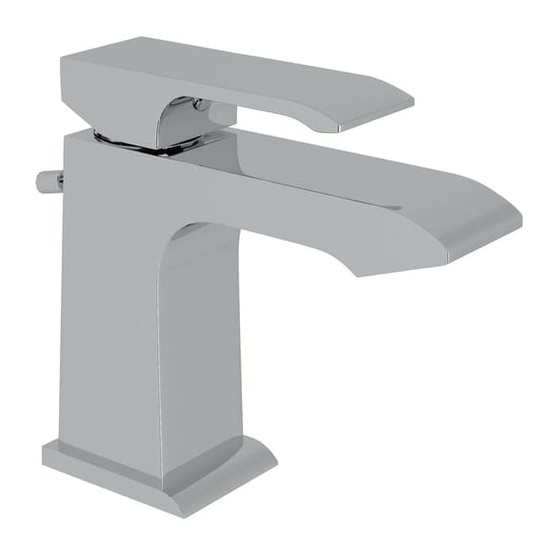

ROHL CASWELL SINGLE LEVER
LAVATORY FAUCET
CA2201LMAPC-2, CA2201LMPN-2, CA2201LMSTN-2
INSTALLATION INSTRUCTIONS
Please leave instructions with the home owner once installed.
SYSTEM REQUIREMENTS
To ensure the optimum performance and customer satisfaction, please adhere to the
following:
Flush out all pipe work prior to installation.
Maximum operating pressure
NOTE: Pressures over 75psi will require that the house have a pressure regulator installed
to limit the pressure below 75psi.
Maximum hot water temperature
If the water temperature exceeds 145°F an approved tempering valve must be fitted.
Maximum flow rate limited to 1.5 US gallons/minute at 60psi flow pressure.
75psi
145°F
#12345 01/14
