The Traditional Countr y Kitchen Collection
I n s t a l l a t i o n & U s e r G u i d e
U.4703X, U.4704L, U.4705X, U.4706L, U.4707X, U.4708L
C o n g r a t u l a t i o n s o n t h e p u r c h a s e o f y o u r P e r r i n & R o w e k i t c h e n t a p !
Correctly installed and with sensible care, it will give many years of trouble free
service.
Before you proceed... We recommend you engage the services of a registered plumber
to install this product.
Read the instructions and diagrams in this leaflet carefully.
Preparation
1) Flush the plumbing system before installing the tap. This is to avoid plumbing
residues clogging or possibly damaging the ceramic valves. It is especially
important where extensive plumbing work has been carried out.
For ease of possible future servicing, we recommend the fitting of conveniently
placed isolating valves.
Check List
G Temperature of the hot water supply does not exceed 185 F.
G Recommended minimum water supply pressure 15psi.
G Ideal performance obtained with equal hot and cold pressures.
G Recommended maximum water supply pressure - 75psi.
Minoan Monobloc Assembly- Refer to Figure 1.
2) Hot supply should be on the left when viewed from the front of the fitting.
3) Monobloc mixers require a 17/16" diameter hole through the surface they are to
be installed on. Maximum counter-top thickness 21/4".
4) Insert the flexible connections through the hole ensuring that the base ring and
seal are in place between the mixer and mounting surface. Connect these to the
relevant supply lines.
5) From the underside of the counter-top, place the clamp plate on securing stud
and using the box spanner supplied, put fixing nut in spanner and tighten until
mixer is held firmly in position.
See Figure 1.
Rinse
7) The rinse units require a 13/16" diameter hole through the surface they are to be
installed on. Assemble rinse unit socket ensuring the base seal is in place under
body. Attach the tapered end of the flex to the rinse unit. Check that the Non-
Return valve is fitted in the externally threaded end of the flex. If not, push the
Non-return valve into the bore, ensuring that it is correctly orientated. Pass the
flex through the socket, and screw the externally threaded end to the remaining
hose at the base of the mixer tap.
7 /
1
16 "
Diameter
Hole
Clamp Plate
Figure 1. Installation of Centrebody
9"
(Bar Faucet 6")
Ø2
"
3 /8
Ø1
" Hole
7 /16
" NPSM
1 / 2

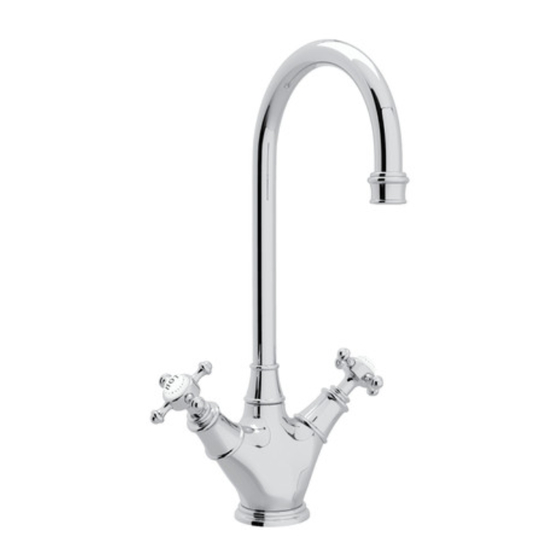

Monbloc Sink Mixer with Crosshead Handles U.4705X
9"
Ø2
"
3 /8
Ø2"
Ø1
" Hole
Ø1
" Hole
7 /16
3 /16
Hose Length
47
"
1 /4
" NPSM
1 / 2
N.R.V
Monobloc Sink Mixer with Lever handles and Rinse
Base Seal
Securing Stud
Nut
Box Spanner
1
" Max
3 /4
U.4708L
