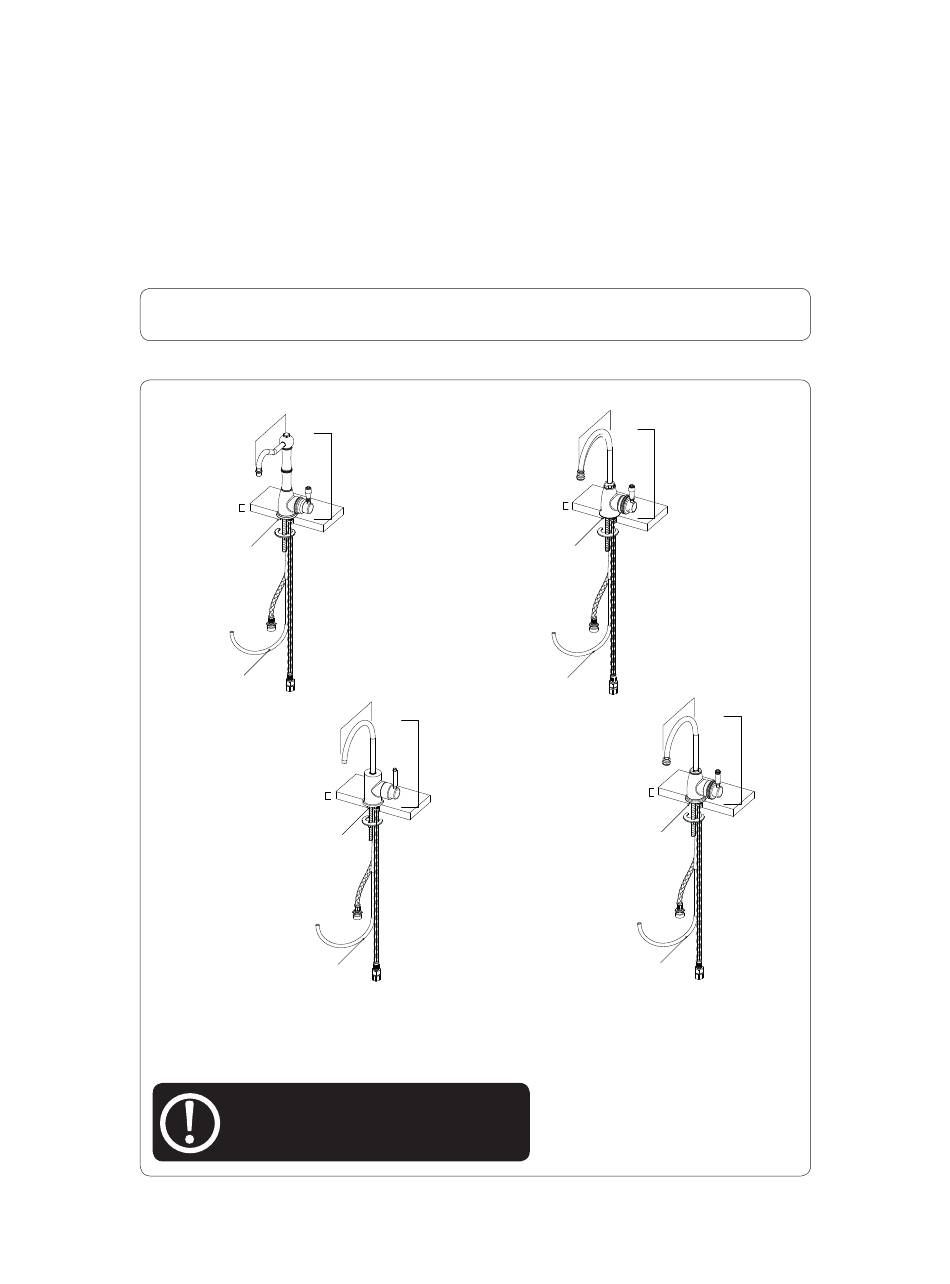

FOR USE ONLY WITH PERRIN AND ROWE HOT WATER TANK
G1445
5.5"
2MAX
1.2/8"
HOLE
1/4"
2MAX
1.2/8"
HOLE
G7545
1/4"
SCALDING HAZARD: The tap dispenses water up to
208.4°F (98°C), which can instantly cause scalds or
burns. Use care when operating this appliance.
HOT WATER DISPENSER COLLECTION
G1655
9.2"
5.5"
10"
MB7945
5.5"
10"
2MAX
1.2/8"
HOLE
1/4"
5.5"
2MAX
1.2/8"
HOLE
1/4"
RECOMMENDED WORKING PRESSURE
Min 1.5bar / 22psi | Max 5bar / 75psi
10"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rohl PERRIN ROWE G1655
Summary of Contents for Rohl PERRIN ROWE G1655
- Page 1 HOT WATER DISPENSER COLLECTION FOR USE ONLY WITH PERRIN AND ROWE HOT WATER TANK G1445 G1655 5.5” 5.5” 10” 9.2” 2MAX 2MAX 1.2/8” 1.2/8” HOLE HOLE 1/4” 1/4” 5.5” 5.5” 10” 10” 2MAX 2MAX 1.2/8” 1.2/8” HOLE HOLE 1/4” G7545 1/4”...
- Page 2 The Hot Water Dispenser Collection Installation & User Guide Congratulations on the purchace pf your ROHL product. Correctly installed and with sensible care, this product will give you many years of trouble free service. IMPORTANT INFORMATION Before you proceed... We recommend you engage the services of a registered plumber / builder to install this product.
- Page 3 The Hot Water Dispenser Collection Installation & User Guide Feed the tubes down through the hole. In the work surface until the base seal and base ring are at rest. From under the sink, place the semi- circular clamping plate and fixing nuts onto the threaded stud.
- Page 4 Electronic Instant Hot Water Appliance Installation, Operation and Care Instructions Please read these instructions fully before commencing the installation and operation of the Electronic Instant Hot Water Appliance...
-
Page 5: What You Need To Know Before You Start
We are delighted that you have chosen the electronic instant hot water appliance to compli- ment your instant hot water Dispenser. This unique electronic instant hot water appliance will save you time and effort when requiring near boiling water for making tea and coffee and we are sure you will discover many new uses each day. -
Page 6: Components Included
SAFETY INSTRUCTIONS PLEASE READ BEFORE YOU START The alert symbols displayed on the right point to important safety information to make you aware of potential hazards that can cause serious injury or death. Please pay special attention to the infor- mation following these warning alerts. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY When using all electrical appliances, basic safety precautions should always be followed including the information below: To protect against electrical shock, do not place cord, plugs or unit near or in water or other liquids and do not operate the electronic instant hot water appliance controls or power socket with wet hands. -
Page 8: Installation Requirements
INSTALLATION REQUIREMENTS Electrical Requirements A standard 120v electrical outlet is required under the sink. If possible, use a separate circuit dedicated to your Hot Tank. It is recommended that a separate circuit serving only your electronic instant hot water appliance be provided or use an outlet that can be turned on/off by a switch. -
Page 9: Installation
PREPERATION FOR INSTALLATION Unlike other household hot water appliances, this electronic instant hot water appliance is Non Pressurised for safety reasons. For this electronic instant hot water appliance, the Instant Hot Dispenser is placed before the electronic instant hot water appliance, creating an “open vent”... - Page 10 Step 2 – Connect Dispenser The electronic instant hot water appliance inlet connection is a 3/8” BSP male threaded connector. The outlet connector is a 3/8” BSP male thread connector. Check the connections type and size on the instant hot water Dispenser for the inlet and outlet connections.
- Page 11 INSTALLATION CONTINUED Step 4 – Electrical Connection Ensure that the installation area is dry and no water has spilled. Connect the plug to the power socket and turn on the power socket at the switch. The electronic instant hot water appliance display panel will now light up with the on / off button illuminated.
- Page 12 MAINTENANCE AND CARE INSTRUCTIONS CONTINUED Flushing the Instant Hot Water Tank It is recommended that the user flushes through the system completely by drawing off the instant hot water and allowing to reheat and repeating the process for a further 2 or 3 times to ensure the system is fully operational.
-
Page 13: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE WHAT TO DO Water and Steam is spitting Unit is boiling Turn instant hot water Dis- from the instant hot water penser handle on and release at Dispenser spout least 1 pint of water. Adjust the water temperature on the display to a lower setting. - Page 14 TROUBLE SHOOTING CONTINUED PROBLEM POSSIBLE CAUSE WHAT TO DO Slow Flow from the spout Water Filter may be The water filter must be clogged from impurities changed every 6 months or this in the inlet mains water will void the guarantee Water does not flow straight The electronic instant hot After a large volume of water...
- Page 15 • • Instant Hot Tap • • CARTRIDGE REPLACMENT The filter cartridge in your instant hot tap system needs to be changed every six months in order to ensure the system works at its optimum performance. Changing the filter cartridge is a simple matter: 1.
- Page 16 • Instant Hot Tap • • • Filter Installation IT IS VERY IMPORTANT THAT BEFORE YOU START INSTALLING THIS Fixing Mounting Bracket FILTER SYSTEM YOU ENSURE YOU HAVE READ THE INSTALL GUIDES THAT CAME WITH THE TAP AND THE HEATER TANK. First you will need to remove the filter sump.
