www.ti.com
EVM User's Guide: AWR2944EVM, AWR2944PEVM
AWR2944/AWR2944P Evaluation Module
Description

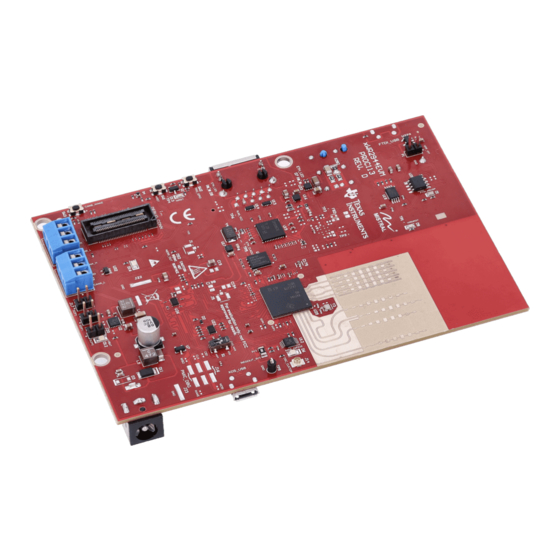

The AWR2944/AWR2944P evaluation module
(EVM) is an easy-to-use platform for evaluating
the AWR2944/AWR2944P mmWave system-on-
chip (SoC) radar sensor, which has direct
connectivity to the DCA1000EVM (sold separately).
The AWR2944EVM/AWR2944PEVM kit contains
everything required to start developing software
for the on-chip C66x digital signal processor
(DSP), ARM
®
Cortex
®
-R5F controller, and hardware
accelerator (HWA 2.0 in AWR2944, HWA 2.1 in
AWR2944P). Also included is onboard emulation for
programming and debugging, as well as onboard
buttons and LEDs for quick integration of a simple
user interface.
SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024
Submit Document Feedback
Features
•
76GHz to 81GHz mmWave radar sensor
•
Onboard four-transmit four-receive (4TX/4RX)
antenna
•
On-chip C66x DSP core and Arm Cortex-R5F
controller
•
On-chip hardware accelerator (HWA 2.0)
•
Direct interface with DCA1000EVM

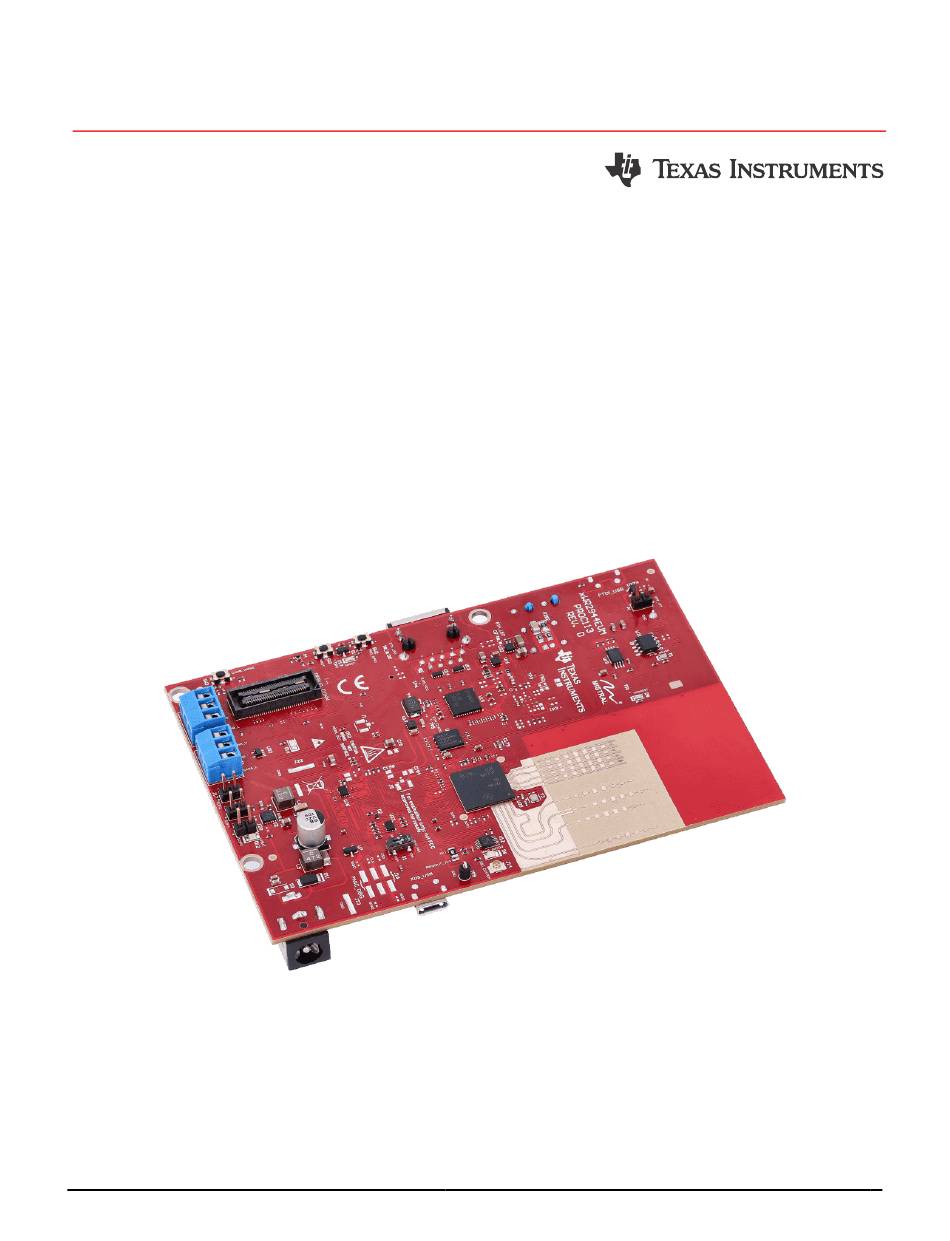

AWR2944EVM
Copyright © 2024 Texas Instruments Incorporated
AWR2944/AWR2944P Evaluation Module
Description
1
Advertisement
Related Manuals for Texas Instruments AWR2944
Summary of Contents for Texas Instruments AWR2944
- Page 1 ® Cortex ® -R5F controller, and hardware accelerator (HWA 2.0 in AWR2944, HWA 2.1 in AWR2944P). Also included is onboard emulation for programming and debugging, as well as onboard buttons and LEDs for quick integration of a simple user interface.
- Page 2 The following power supply has been tested to work with the AWR2944EVM: SDI65-12-U-P5. 1.3.2 mmWave Out-of-Box (OOB) Demo TI provides sample demo codes to easily get started with the AWR2944 evaluation module (EVM) and to experience the functionality of the AWR2944 radar sensor. For details on getting started with these demos, see www.ti.com/tool/mmwave-sdk.
- Page 3 During operation, a minimum separation distance of 20 centimeters must be maintained between the user and the EVM. Figure 2-1. AWR2944EVM Front View SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 4 Hardware www.ti.com Figure 2-2. AWR2944EVM Back View AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 5 Hardware Figure 2-3. AWR2944PEVM Front View SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 6 Hardware www.ti.com Figure 2-4. AWR2944PEVM Back View AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 7 RS232, XTAL MSS/BSS Logger, External CLK JTAG Debug 60-pin TM4C1294NCPDT option Connector XDS110 FT4232H FTDI Figure 2-5. AWR2944EVM Block Diagram SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 8 EVM in the supplied ESD bag when not in use. Handle using an antistatic wristband. Operate on an antistatic work surface. For more information on proper handling, refer to SSYA010A. AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 9 To use this interface, the JTAG lines from the AWR2944EVM/AWR2944PEVM needs to be muxed to MIPI 60-pin connector. Refer to Section 2.8.1 for more details. SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 10 Pin Number Description MIPI_VREF_DEBUG MIPI_TMS MIPI_TCK MIPI_TDO MIPI_TDI MIPI_NRST MIPI_RTCK MIPI_TRSTPD MIPI_JTAG_NRST MIPI_VREF_DEBUG TRACE_CLK MIPI_DBG_DETECT TRACE_CTL TRACE_DATA0 TRACE_DATA1 TRACE_DATA2 TRACE_DATA3 TRACE_DATA4 AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 11 The SPI is multiplexed to the Debug Connector. For more details refer to Section 2.8.1. Figure 2-9. 60-pin Debug Connector SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 12 GPADC7 GPADC8 GPADC9 MSS_SPIB_CS1 SOP1_MSS_SPIB_CS2 MSS_GPIO_0 MSS_GPIO_1 LVDS_TX2_CLK_P AR_WRMRST LVDS_TX2_CLK_N AR_NERROUT LVDS_TX1_P MSS_I2CA_SCL LVDS_TX1_N MSS_I2CA_SDA MSS_EPWMB0 LVDS_TX0_P MSS_EPWMA1 LVDS_TX0_N MSS_GPIO_3 AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 13 Table 2-4 provides the pin assignment details for the CAN_B connector. Table 2-4. J2 Pin Assignment Pin Number Description CAN_L CAN_H SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 14 • IEEE 1588 Synchronous Ethernet support The Ethernet port is interfaced to the AWR2944 through the Ethernet PHY and is used to stream the captured data over the network to the host PC. The AWR2944PEVM is similar to the AWR2944EVM, except that the DP83TC812R-Q1 is replaced by a DP83TG720S 1Gbps Ethernet PHY device that can be interfaced with via the J4 connector.
- Page 15 The automotive Ethernet PHY (U4) and port (J4) on the AWR2944EVM have not been tested by Texas Instruments to be compliant with any regional standards such as Radio Equipment Directive 2014/53/EU. If the user wishes to populate the components necessary to utilize this port, then users can do any necessary testing to verify that the port is compliant with all applicable regional standards before use.
- Page 16 2.4.5.1.1 ECO needed to source 25MHz clock from AWR2944P to DP83TG720S 1. Populate R385 2. Populate R212 3. Remove crystal Y5 AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 17 USB cables, power cycle the EVM, and plug in the USB cables to resolve the issue. The AWR2944EVM/AWR2944PEVM has two standard micro USB connectors. Micro USB Connector J10 provides access to the AWR2944 UART, SPI, I2C, RS232, and SOP interfaces through the FTDI chip. Table 2-7. J10 Pin Assignment...
- Page 18 XDSET_ID Figure 2-15. XDS USB Port 2.4.7 OSC_CLKOUT Connector (J14) Connector J14 provides access to measure oscillator clock out signal from the AWR2944 device. Figure 2-16. OSC Clock Port AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright ©...
- Page 19 2.4.9 Voltage Rails Ripple Measurement Connectors (J1, J5) (DNP) J1 provides access to measure ripple on 1V0_FILTERED (1.0 analog RF supply for AWR2944) voltage rail. J5 provides access to measure ripple on 1V8_FILTERED (1.8V analog supply for AWR2944) voltage rail.
- Page 20 2-20). Similarly, the horizontal 6dB beamwidth is approximately ±45 degrees (see Figure 2-19) and the elevation 6dB-beamwidth is approximately ±5 degrees (see Figure 2-20). Figure 2-19. Azimuth Radiation Pattern AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 21 Hardware Figure 2-20. Elevation Radiation Pattern 2.6 PMIC Power to the AWR2944 is provided by the LP877451-Q1 PMIC. This is a functional safety compliant PMIC that supports ASIL-C/SIL-2 applications. For more details, visit the LP87745-Q1 product page (https://www.ti.com/ product/LP87745-Q1).
- Page 22 (COM and LPT). Figure 2-21. XDS110 COM Ports XDS110 debug probe and data port are detected under Texas Instruments Debug Probes. Figure 2-22. TI Debug Probes If the PC is unable to recognize the above COM ports, then install the latest EMUpack.
- Page 23 COM port numbers, as shown in Figure 2-24. Figure 2-24. Installed FTDI Drivers SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 24 When using the AWR2944EVM/AWR2944PEVM with the DCA1000 EVM, the following settings must be used. 1. Set the AWR2944EVM/AWR2944PEVM to SOP2 mode. Figure 2-26. SOP2 Mode AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 25 MIPI 60-pin connector (J19). When set to ‘XDS’ position, the JTAG interface is routed to the XDS110 USB interface (J8) SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 26 Table 2-12. A closed jumper refers to a ‘1’ and open the jumper refers to a ‘0’ state of the SOP signal going to the AWR2944 device. Note The SOP[2:0] pins can also be controlled via the onboard FTDI. In this case, the FTDI settings override the jumper settings.
- Page 27 2.10.3 I2C Connections The board features temperature sensor for measuring onboard temperature, current sensors for current measurement for 1.2V, 1.8V, 3.3V, 1V0_RF1, and 1V0_RF2 AWR2944 supply rails and EEPROM for storing board ID. These are connected to the AWR2944EVM/AWR2944PEVM through I2C bus.
- Page 28 This LED indicates the presence of 12V supply input. Green 5V Supply This LED indicates the presence of 5V supply output. AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 29 Open drain fail safe warm reset signal. Green GPIO_2 Glows when the GPIO_2 is logic-1. Yellow FTDI_SUSPEND_N Glows when FTDI is in suspend state. SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 30 (HWA 2.1), TI provides a software development kit (SDK) that includes demo codes, software drivers, emulation packages for debug, and more. These can be found at mmwave-sdk. AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 31 AWR2944EVM Database and Layout Files. To view the schematics, assembly drawings, and BOM, see AWR2944PEVM Schematic, Assembly Files, and BOM. SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 32 The AWR2944EVM has not been assessed for the interactive control of a vehicle and any such use requires an additional assessment of applicable functional safety of the vehicle’s control systems. AWR2944/AWR2944P Evaluation Module SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 33 Changed from 5 centimeters to 20 centimeters....................3 • Changed minimum separation distance in note to 20 centimeters..............3 • Added automotive Ethernet PHY (U4) note......................15 SPRUJ22C – NOVEMBER 2021 – REVISED SEPTEMBER 2024 AWR2944/AWR2944P Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 34 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 35 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 36 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 37 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 38 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 39 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
