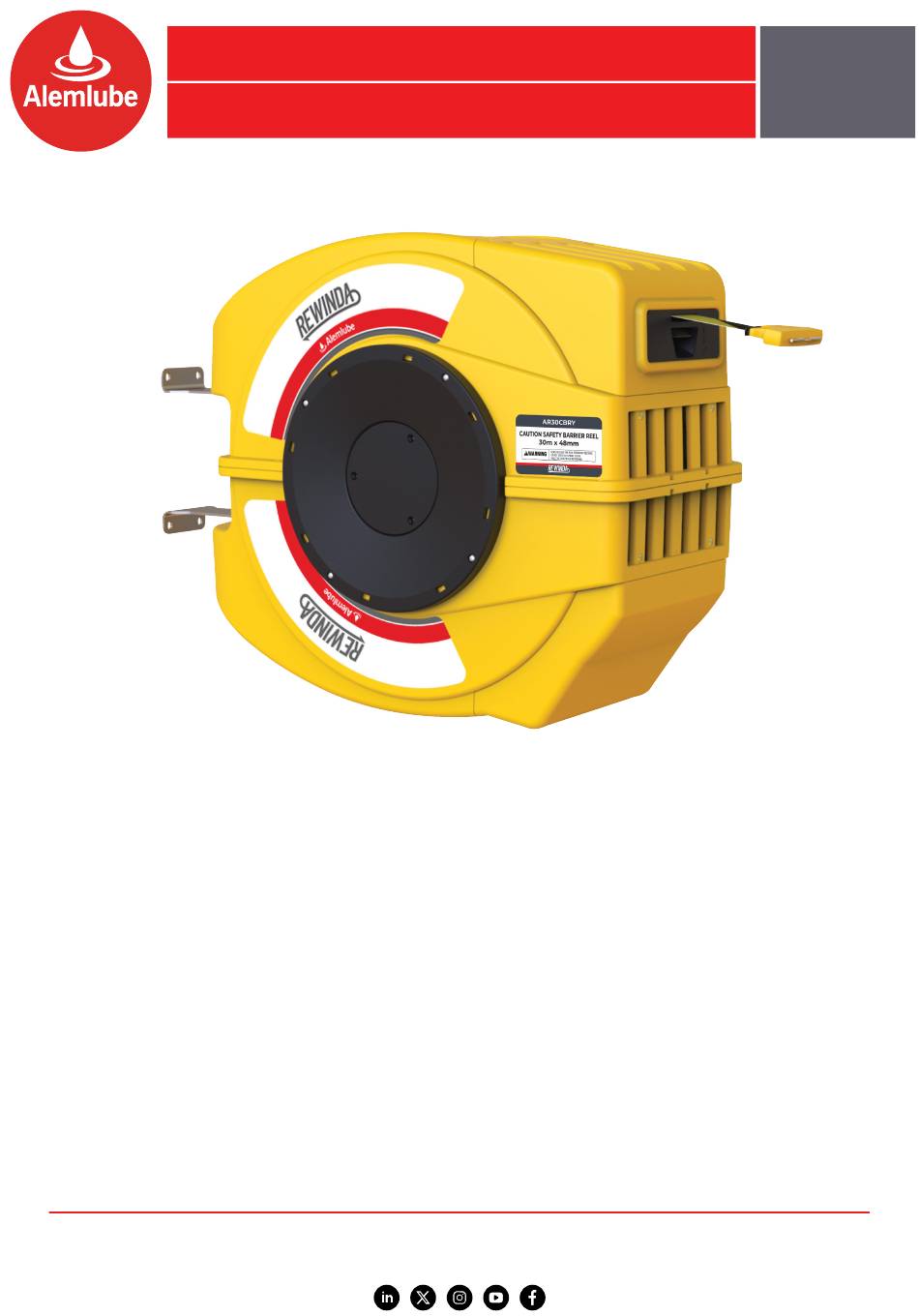

CAUTION SAFETY BARRIER REEL
Alemlube is pleased to announce the release of our new Rewinda Series of hose, cable & barrier reels.
The range has been researched, designed & engineered in conjunction with our long-standing,
industry leading plastic covered hose reel partner with the result being an exciting range of innovative,
safe, ergonomic, durable and aesthetically pleasing hose reels.
Replacing the S Series as released in 2008, this new versatile & complete range meets market needs
and is set to exceed industry expectations.
The patented speed rewind control system, as included on all models, ensures that the hose retracts
at a safe & steady speed, resulting in a safe operating environment, minimising the chance of damage
to workshop equipment, and in some instances, customers' vehicles.
The unique, & also patented, stop-at-any-point latching system secures the hose at the exact desired
length each and every time, the sliding guide system ensures that the hose returns neatly and evenly
onto the barrel assembly, and the next level UV stabilised covers won't fade over time.
The Gen3 hybrid polymer hose & hose bend restrictors (the latter on all models) ensure a long service
life for your hose assemblies.
With a 10 year warranty on materials & workmanship and a no exclusions 2 year warranty on wearing
parts such as o'rings, seals, hose assemblies, springs and bushes, the new Rewinda Series of hose reels
is set to be the new on-point hose storage and retrieval solution in mining, construction, Ag, transport
and automotive sectors in Australia, New Zealand and Papua New Guinea.
NSW/ACT (02) 9677 1555
WA (08) 9302 4199
OWNER'S MANUAL
QLD/PNG (07) 3491 2600
SA/NT (08) 8241 7111
VIC/TAS (03) 8787 8288
NZ (09) 447 1007
AR30CBRY
April 2025
www.alemlube.com.au
www.alemlube.co.nz
1
Advertisement
Related Manuals for Alemlube AR30CBRY
Summary of Contents for Alemlube AR30CBRY
- Page 1 CAUTION SAFETY BARRIER REEL April 2025 Alemlube is pleased to announce the release of our new Rewinda Series of hose, cable & barrier reels. The range has been researched, designed & engineered in conjunction with our long-standing, industry leading plastic covered hose reel partner with the result being an exciting range of innovative, safe, ergonomic, durable and aesthetically pleasing hose reels.
-
Page 2: General Safety Regulations
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL READ INSTRUCTIONS BEFORE OPERATING GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Installation Instructions
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 3. INSTALLATION INSTRUCTIONS This product is mainly used for isolation of construction section, dangerous section, traffic accident and emergency, and it is the barrier of electric power maintenance, road administra- tal protection project. It can be used for delineation of accident site or warning standard special area. -
Page 4: Installation
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 5. INSTALLATION Installation of Reel (Fig.02) 1. You will need to purchase appropriate hardware for the mounting of your new reel. 2. The reel base has four 7mm (9/32") drilled holes for mounting on a suitable flat surface. -
Page 5: Operation
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 6. Ensure the elastic clip is installed properly, and is located at the lower end of the handle on the housing. (Fig.04) Fig.04 Elastic Clip Upper Axle Handle Elastic Clip Screw M6 (Self Provided) - Page 6 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL Fixation Method The reel contains accessory package (including magnet, eye screw and expansion plug). The fixing method is various and flexible, and it is suitable for most working situation. 1.The fixing pin on the reel can be directly hooked into the slot hole, or the belt can be clamped with the pin after wrapping the object with a warning tape (Fig.06).
-
Page 7: Maintenance
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 7. MAINTENANCE 1. Make sure the tape is in proper working order. 2. Clean the tape with a cloth dipped in warm water to remove dirt or deposits and ensure correct rewinding. 3. Do not use detergents or solvents which could prove incompatible with reel materials. - Page 8 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 8.2 Replace the Stop-at-any-point/Slow Retraction Assembly WARNING Tip: No need to release spring force before replacing. 1. Remove the screws on the end cap and take out the end cap. 2. Remove the 4 screws on the side cover, rotate the side cover counterclockwise, and remove the side cover (Fig.12).
- Page 9 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 4. Move the large gear ring to the side to give adequate space, making it easier to remove the stop-at-any-point/slow retraction assembly and the reel body connection screws. (Fig.14) Fig.14 Slow Retraction Assembly...
- Page 10 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 6. Install the screws on the large gear ring. (The large gear ring could be replaced if there is a need). (Fig.16) Fig.16 Large Gear Ring 7. Insert the protrusion of the side cover into the slot on the housing (see figure), rotate clockwise, and install the screws.
-
Page 11: Limited Warranty
OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL 9. LIMITED WARRANTY 1. The manufacturer warrantees this safety barrier reel against defects in material and craftsmanship, for a period of 60 months from date of purchase, but not including safety barrier reel and wearing parts. - Page 12 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL Parts & Drawing Breakdown for AR30CBRY AR30CBRY-11 AR30CBRY-12 AR30CBRY-13 AR30CBRY-14 AR30CBRY-15 AR30CBRY-16 AR30CBRY-17 AR30CBRY-18 AR30CBRY-10 AR30CBRY-09 AR30CBRY-19 AR30CBRY-08 AR30CBRY-07 AR30CBRY-20 AR30CBRY-06 AR30CBRY-05 AR30CBRY-04 AR30CBRY-21 AR30CBRY-03 AR30CBRY-22 AR30CBRY-02 AR30CBRY-24 AR30CBRY-27 AR30CBRY-01 AR30CBRY-29 AR30CBRY-28 AR30CBRY-26...
- Page 13 OWNER’S MANUAL AR30CBRY CAUTION SAFETY BARRIER REEL Ordering Spare Parts Parts List – Model AR30CBRY Part Number Product Description Quantity AR30CBRY-01 Screw PT4.0x12F AR30CBRY-02 Left Cover AR30CBRY-03 Screw M6x30 AR30CBRY-04 Pre-tensioned End Cap AR30CBRY-05 Shaft Ring AR30CBRY-06 Main Axle AR30CBRY-07...
