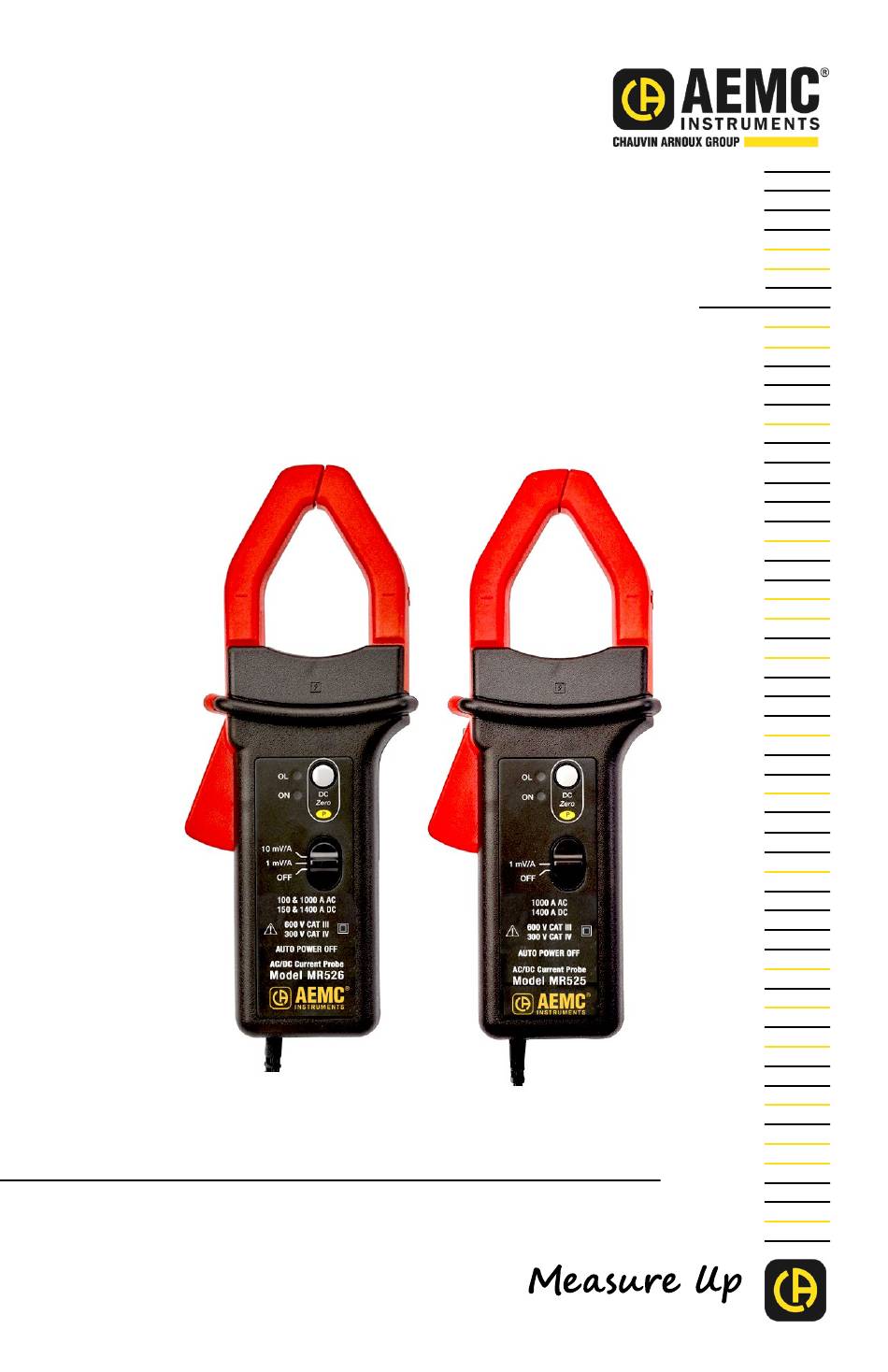

- Page 1 User Manual ENGLISH AC/DC Current Probes Models MR525 & MR526 CURRENT MEASUREMENT PROBES WITH AEMC INSTRUMENTS ® GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 Refer to our repair and calibration section at www.aemc.com/calibration. Serial #: Catalog #: 1200.81 / 1200.83 Model #: MR525 / MR526 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc.
- Page 4 TABLE OF CONTENTS 1. INTRODUCTION ................6 1.1 SYMBOLS AND DEFINITIONS ..........6 1.2 DEFINITION OF MEASUREMENT CATEGORIES (CAT)..6 1.3 PRECAUTIONS FOR USE ............7 1.4 RECEIVING YOUR SHIPMENT ..........7 1.5 ORDERING INFORMATION ............. 7 1.5.1 Accessories / Replacement Parts ........7 2.
- Page 5 5. MAINTENANCE ................23 5.1 CLEANING ................23 5.2 BATTERY REPLACEMENT ............. 23 5.3 REPAIR AND CALIBRATION ..........24 5.4 TECHNICAL ASSISTANCE ............. 24 5.5 LIMITED WARRANTY .............. 25 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 6 CAT II: Corresponds to measurements performed on circuits directly connected to the electrical distribution system. Example: measurements on household appliances and portable tools. AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at:...
- Page 7 1.5.1 Accessories / Replacement Parts Cable – 6 ft USB type A to Micro type B ........... Cat. #2138.66 Adapter – US Wall plug to USB ............Cat. #2153.78 AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www.

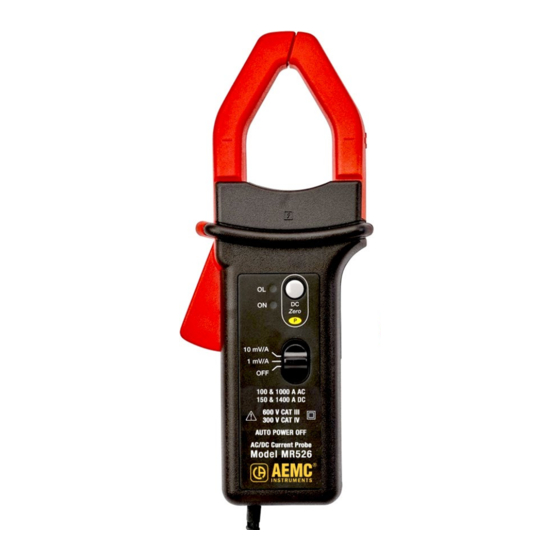

- Page 8 2. PRODUCT FEATURES 2.1 DESCRIPTION The Models MR525 and MR526 are clamp-on current probes that measure DC currents up to 1400 A, AC currents up to 1000 Arms (1400 Apeak), and combined AC+DC currents without opening the circuit. They indicate the shape and amplitude of the current measured in the form of a voltage.
- Page 9 (see § 3.4). Slide switch (2-position for MR525, 3-position for MR526) USB port Trigger Hand guard Mobile jaw (moves when the trigger is pressed) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 10 When operating on external power, the Auto Standby feature is disabled. The color of the ON indicator signals whether automatic standby is enabled (green) or disabled (yellow). AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com...
- Page 11 3.3 TURNING ON THE INSTRUMENT Turn on the clamp by pushing the slide switch to the 1 mV/A or 10 mV/A setting: ■ 1 mV/A corresponds to the 1400 A range (MR525 and MR526) ■ 10 mV/A corresponds to the 150 A range (MR526) ■...
- Page 12 = 100 A 1 mV/A Reading (mV) = Current (A) Range (mV/A) 150 A Range (10 mV): 100 mV = 10 A 10 mV/A AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 13 Phase error (45 to 65) Hz Specified (3 to 200) Aac (200 to 1000) Aac Measurement Range Phase shift ≤ -2 ° ≤ -1.5 ° AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 14 Typical amplitude error curve at 60 Hz Error (%) Current (A) Typical amplitude error curve in DC Error (%) 1000 10000 Current (A) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 15 Insertion impedance <0.01 mΩ 0.05 mΩ 0.14 mΩ 3.4 mΩ Typical amplitude error versus frequency curve at 60 A Error (%) Frequency (Hz) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 16 ≤ ±1.5 % R ≤ ±1.5 % R Phase error (45 to 65 Hz) Specified (1 to 100) Measurement Range Phase shift ≤ -2 ° AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 17 Typical amplitude error vs current curve at 60 Hz Error (%) Current (A) Typical amplitude error vs current curve in DC Error (%) Current (A) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 18 <0.01 mΩ 0.05 mΩ 0.14 mΩ 3.4 mΩ impedance Typical amplitude error versus frequency curve at 30 A Error (%) Frequency (Hz) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 19 Conductor temperature: ≤194 °F, 230 °F peak (90 °C, 110 °C peak) ■ Temperature of the jaws: ≤176 °F (80 °C) Curve of derating versus frequency Current (A) 1000 Frequency (kHz) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 20 The average battery life is 50 hours with an alkaline battery. The instrument can also be powered by an external supply (5 Vdc, 100 mA) via the type B micro-USB connector. AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www.
- Page 21 2 = Operating range 3 = Storage range Indoor use Degree of pollution: 2 Altitude: <6500 ft (2000 m) Transport altitude: ≤40,000 ft (12,000 m) AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 22 Type of current sensor per IEC/EN 61010-2-032 or BS EN 61326-1: (type A) 4.10 ELECTROMAGNETIC COMPATIBILITY The device is in conformity with standard IEC/EN 61326-1 or BS EN 61326-1. AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com...
- Page 23 Replace the battery compartment cover. NOTE: Depleted batteries must not be treated as ordinary household waste. Take them to the appropriate collection point for recycling AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at:...
- Page 24 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 25 Caution: To protect yourself against in‑transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC/DC Current Probes Models MR525 & MR526 - User Manual GlobalTestSupply www. .com uality Products Online at:...
- Page 26 NOTES: GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 27 NOTES: GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 28 08/24 99-MAN 100523 v06 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: +1 (603) 749-6434 • +1 (800) 343-1391 • Fax: +1 (603) 742-2346 www.aemc.com © 2019 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ®...
