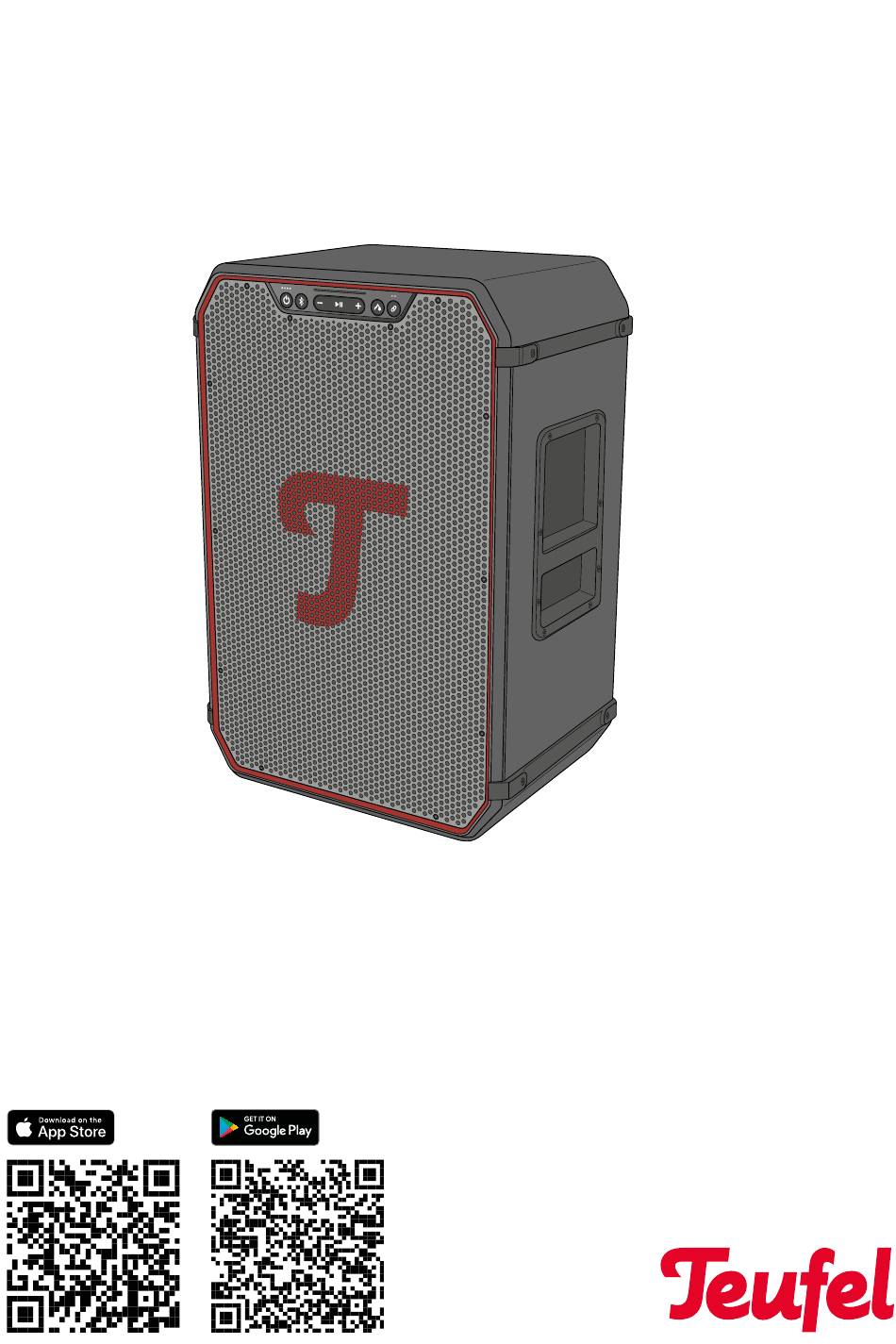

- Page 1 Technical description and user manual ROCKSTER® NEO Bluetooth® loudspeaker...
- Page 2 Table of contents Basic notes and information .....4 Teufel Go app ......... 16 Functions of the Teufel Go app ..16 For your information ......4 Applicability of the user manual ..4 Operation ..........17 Data protection and Controlling playback ......17 advertising declaration ......5 Starting playback ......17...
- Page 3 Power supply (battery) ......27 Charging the battery ......27 Displaying the charge level on the loudspeaker ....... 28 Displaying the charge level on the battery ....... 28 Remove and insert battery ....28 ECO mode .........29 Activating/deactivating ECO mode........29 Using a power bank ......30 Power bank functions (during mains operation) ....30...
- Page 4 Lautsprecher brands by Lautsprecher Teufel is under Teufel GmbH. licence. © Lautsprecher Teufel GmbH Teufel ROCKSTER® NEO UM EN V1.0 PD Applicability of the user manual This user manual applies exclusively to the loudspeaker ROCKSTER® NEO hereinafter also referred to as the "loudspeaker".
- Page 5 Data protection and Contact advertising declaration If you have any questions, suggestions or criticisms, please contact us at: Lautsprecher Teufel GmbH does not store Lautsprecher Teufel GmbH any personal data and is not involved in BIKINI Berlin any promotional mailings.
- Page 6 Safety Intended use Explanation of warnings The loudspeaker is used to play back and The action-related warnings warn against amplify audio signals from an external residual dangers and precede a dangerous audio source via Bluetooth® or a cable action step. connection.
- Page 7 Scope of supply Scope of supply (1) ROCKSTER® NEO (2) Battery (3) Mains cable (C13 / 1.5 m) ► Check the scope of supply for completeness. ► Check the scope of supply for damage. ► Keep the original packaging during the warranty period. •...
- Page 8 Operating and display elements Operating and display elements No. Screen (4) Battery status LEDs → Displaying the charge level on the loudspeaker – p. 28 (5) Volume LEDs Indicate the volume (6) Party Link LEDs → Party Link – p. 23 Legend (actuation): 1.5 s = Press once = hold pressed down (1.5 s) = Press twice = hold pressed down (4 s) = Press three times = hold pressed down (8 s)
- Page 9 Button Function Actuation 1.5 s → Switching on and off – p. 13 → Displaying the charge level on the loudspeaker – p. 28 → Changing Bluetooth® devices – p. 15 1.5 s → Coupling devices (pairing) – p. 14 → Deleting the Bluetooth® list – p. 15 Decrease the volume HOLD → Adjusting the volume – p. 18 → Pausing and restarting/muting playback – p. 17 (10) → Playing the previous track – p. 17 → Playing the next track – p. 17 Increase the volume HOLD (11) → Adjusting the volume – p. 18 Activate/deactivate Outdoor sound mode → Outdoor sound mode – p. 19 (12) Activate/deactivate Eco mode → ECO mode – p. 29 Activate/deactivate Party Link 1.5 s → Party Link – p. 23...
- Page 10 Connections 19 20 Connections on the back • ROCKSTER® NEO...
- Page 11 No. Button / controller Function Actuation (14) Charge level → Displaying the charge level on the battery – p. 28 (15) Charge level LEDs (16) INPUT 1 Gain controller input signal 1 (17) Signal level LED → Setting the input signal setting – p. 18 → Microphone (MIC) – p. 22 INPUT 1 switch (18) for selecting input INSTR → Instrument (INSTR) – p. 21 source LINE → LINE (analogue) – p. 20 (19) INPUT 2...
- Page 12 Start-up Carrying and setting up Connection ATTENTION Material damage due to trip hazard! An awkwardly laid mains cable can become a trip hazard and potentially pull down and damage the loudspeaker. ► Lay the mains cable in such a way that it does not become a trip hazard for people and animals.
- Page 13 Switching on and off 1. Open the cover (27) and engage in the battery cover bracket (28). 2. Connect the mains cable (3) to the mains connection (26). 3. Connect the mains cable (3) to a mains socket. ☑ The loudspeaker is connected. NOTE As soon as the loudspeaker is connected to a mains socket, the battery starts...
- Page 14 Bluetooth®. NOTE NOTE The automatic switch-off time (Auto Off) Only use the Bluetooth® function in can be adjusted via the Teufel Go app. places where wireless radio transmission is permitted. Coupling devices (pairing) Coupling (pairing) connects the audio source with the loudspeaker.
- Page 15 4. Select the loudspeaker "ROCKSTER NEO" in the list of ► Press the button (8) twice. Bluetooth® devices. The button (8) flashes blue once.
- Page 16 The loudspeaker can be set up in the Functions of the Teufel Go app Teufel Go app. The loudspeaker can also The Teufel Go app can be used for the be operated via the app. following functions: 1. Download the Teufel Go app.
- Page 17 Operation Controlling playback Playing the previous track ► Press the button (10) 3 times. ☑ The current track is started from the beginning. (If the track has been played for more than 3 seconds.) ☑ The previous track is started. (If the track has been played for less than 3 seconds.) Playing the next track...
- Page 18 Adjusting the volume Setting the input signal setting Adjusting the volume ► Press the button (9). Connecting the audio source ► To lower/increase the volume The signal level LEDs (17)/(20) indicate gradually (faster), press and hold the audio level of the connected source. the button (9).
- Page 19 Outdoor sound mode Activate/deactivate Outdoor sound mode Outdoor sound mode adapts the sound for outdoor use: Deep bass is reduced, while upper bass tones and mid to high frequencies are accentuated for loudness perception so that the sound remains powerful and present, even outdoors. Activating Outdoor sound mode ►...
- Page 20 Playback sources (source) 1. Connect the audio source to one of NOTE the XLR combination sockets (23)/(24) This loudspeaker is versatile and allows using a balanced or unbalanced stereo you to listen to multiple audio sources at cable with a 6.3 mm jack plug, or an the same time.
- Page 21 ☑ Instrument (INSTR) If a signal is present, the loudspeaker activates playback automatically. A compatible instrument (e.g. electric 3. Adjust the volume using the guitar) is connected to the loudspeaker button (9) / (11) and the audio via the instrument playback feature. level using the corresponding gain controller (16)/(19).
- Page 22 Microphone (MIC) NOTE Adjust the input volume using the A microphone can be connected to the corresponding gain controller (16)/(19) loudspeaker via the MIC input. so that the signal sounds clear and clean (not distorted), even during loud passages. The corresponding signal level LED (17)/(20) should light up continuously white.
- Page 23 NOTE broadcaster or make specific adjustments The Party Link function can also be on each connected loudspeaker (e.g. managed from the Teufel Go app. volume settings). Activating the Party Link function Deactivating the Party Link function 1. Connect an external audio source to ►...
- Page 24 Party Link Stereo 4. Press the button (13) on the second loudspeaker twice. The first Party Link LED (6) on the first loudspeaker lights up white. The loudspeaker becomes channel L. The second Party Link LED (6) on the second loudspeaker lights up white. The loudspeaker becomes channel R.
- Page 25 Party Link Wired SETTING UP Party Link via a cable connection. NOTE Compatible XLR cables for connecting loudspeakers are available in the "Accessories" section of our online shop. LINE / COMPANION OUT INPUT 1 LINE / COMPANION OUT INPUT 1 Party Link Wired In MASTER COMPANION mode, several loudspeakers can be connected to one...
- Page 26 3. Connect an XLR cable to the LINE/COMPANION OUT socket (25) on loudspeaker 1. 4. Connect an XLR cable to one of the XLR combination sockets (23)/(24) on loudspeaker 2. ☑ Party Link is set up via a cable connection. NOTE Repeat steps 3 and 4 to connect other loudspeakers.
- Page 27 Power supply (battery) Charging the battery WARNING Risk of personal injury and material The integrated rechargeable battery starts damage caused by exploding batteries! charging as soon as the loudspeaker is connected to a mains socket. Batteries (especially lithium batteries) can catch fire or explode if handled improperly, resulting in injury and loudspeaker failure.
- Page 28 Remove and insert battery Displaying the charge level on the loudspeaker The battery installed at the rear can be removed. Removing battery Charge level on the loudspeaker The battery status LEDs (4) can indicate the current charge level of the battery. ►...
- Page 29 ECO mode Insert battery When ECO mode is activated, power consumption is reduced to extend the loudspeaker's battery life. • Maximum achievable volume is reduced. • Playback of frequency ranges with high power requirements is limited. Activating/deactivating ECO mode Insert battery 1.
- Page 30 Using a power bank Power bank functions (during mains operation) Requirements for charging the connected device during mains operation: ■ Loudspeaker is connected to a suitable mains socket, ■ Loudspeaker is switched on. Power bank functions (during battery operation) Requirements for charging the connected device during battery operation: ■...
- Page 31 Cleaning and care ATTENTION Storage Material damage due to improper Storing the loudspeaker for a longer cleaning! period without mains connection (e.g. in The use of unsuitable cleaning agents can winter): lead to the discolouration and destruction 1. Fully charge the battery of the surface.
- Page 32 Troubleshooting ► Follow the instructions below to eliminate possible faults: Malfunction Possible cause Remedy The loudspeaker does The battery is ► Connect the loudspeaker and not start. discharged. charge the battery. → Charging the battery – p. 27 Battery is not inserted ► Insert battery correctly. → Remove and insert battery – p. 28 correctly.
- Page 33 Malfunction Possible cause Remedy Playback on the audio Volume limiter on the ► Deactivate the volume limiter. source is too quiet. audio source is active ► Follow the manufacturer's (Android systems only). documentation accompanying the audio source. ► Loudspeaker does not A system error has → Resetting to factory settings – ...
- Page 34 Transmitting power Bluetooth® 2400–2483.5 MHz <13 dBm/20 mW Lautsprecher Teufel GmbH hereby declares that the type of radio equipment ROCKSTER® NEO complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: teufel.de/konformitaetserklaerungen...
- Page 35 • ROCKSTER® NEO...
- Page 36 International: 00800 200 300 40 (toll-free) teufelaudio.com Online support: teufelaudio.com/support teufel.de teufel.de/support teufel.ch teufelaudio.at Contact: teufelaudio.nl teufelaudio.com/contact teufel.de/kontakt teufelaudio.be teufelaudio.fr All information is provided without teufelaudio.pl guarantee. teufelaudio.it Subject to technical changes. teufelaudio.es Typographical and other errors excepted. Teufel ROCKSTER® NEO UM EN V1.0 PD...
