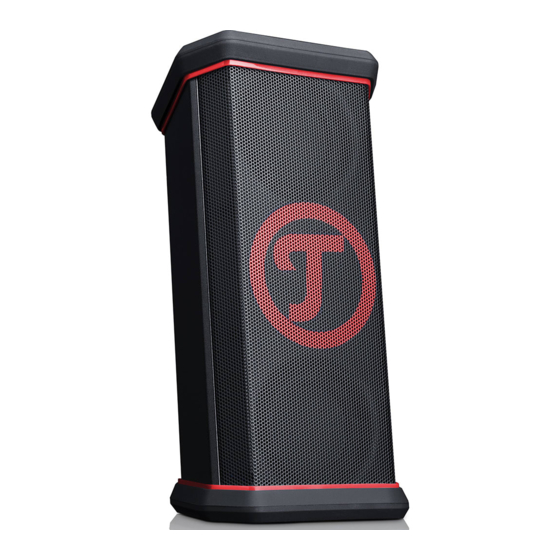

Teufel Rockster XS User Manual

Technical Description and
Contents
User Manual
General notes and information ....................... 2
For your safety ................................................. 5
Operational controls and connections .........10
Charging the rechargeable battery ...............14
Operation .......................................................16
Care and cleaning .........................................25
Protecting the environment ..........................26
Technical data ...............................................27
Declaration of conformity ..............................27
General Notes And Information
Notice
The information in this document may change
without prior notice and in no way constitutes
any liability on the part of Lautsprecher Teufel
ROCKSTER XS
GmbH.
No part of this user manual may be repro-
duced in any form or be broadcasted in any
Mobile active Bluetooth ® outdoor
way electronically, mechanically, by photocopy
speaker
or recording without the written permission of
Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0, November 2017
page 8
– When the volume is set high, always
device is not working properly or has
been dropped. keep a certain distance from the device
– Only operate the ROCKSTER XS under
and never place your ears directly on
the speaker.
the following ambient conditions:
– If the signal source device is set to full
• max. ambient temperature of 40 °C
• max. 2,000 m above sea level. volume, it may produce very high sound
Health hazard: The ROCKSTER XS pressure. This may have psychological
consequences and also cause physical
permanently generates magnetic
injury. Children and pets are particularly
fields that may interfere with pace-
at risk. Set your signal source device
makers and implanted defibrillators.
volume control to a low setting before
– Make sure that the ROCKSTER XS and
turning on the power.
pacemaker/defibrillator are always at a
minimum distance of 10 cm.
NOTICE
– If necessary, consult your physician and
At a high volume, the ROCKSTER XS
ask about effects on implants such as
can produce vibrations and thus
pacemakers or defibrillators.
move around on a smooth surface.
– Always set up your ROCKSTER XS so
CAUTION
that it cannot fall down or is able to
The use of the product may cause
knock down other devices (Smartphone
accidents or disturbances in certain
etc.).
locations.
– Do not use the device in environments
where there is a risk of explosion.
– Only use Bluetooth® in locations where
wireless radio transmission is allowed.
Extended listening at high vol-
umes may lead to hearing loss.
– To avoid damage to health, avoid ex-
tended listening at high volumes.
page 2 page 3
Trademarks
®
All trademarks are the property of their re-
spective owners.
®
Bluetooth and the Bluetooth symbol
are trademarks of Bluetooth SIG, Inc.
aptX ® and the aptX symbol are
trademarks of CSR plc or associated
companies and may be protected in
multiple countries.
Original packaging
If you wish to exercise your eight-week right of
return, we ask that you be absolutely sure to
hold onto the packaging. We can only accept
the return of a device WITH THE ORIGINAL
PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint we will need the follow-
ing information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with
the product) or on the order confirmation re-
ceived as a PDF document, e.g. 4322543
2. Serial number or batch number
Located on the device packaging, e.g. serial
no.: KB20240129A-123.
Thank you for your support!
page 9 page 10
Operational Controls And
Connections
(1) (2) (3)
(7)
(1) Push once: back to the start of the track;
Push twice: skip to the previous track (not
with AUX connection)
(2)
button
If the device is switched off: push briefly to
switch the device on.
If the device is switched on: push briefly
to display the rechargeable battery charge
level.
Push and hold to switch the device off.
(3) Next track (not with AUX connection)
(4) Play/Pause button
Interrupt/continue playback (not with AUX
connection)
page 4
Contact For Your Safety
Please contact our customer service depart-
ment with any questions, suggestions, or
complaints: Proper use
Lautsprecher Teufel GmbH
The ROCKSTER XS is designed to play back
BIKINI Berlin
music and speech from an external player.
Budapester Str. 44
Devices can be connected via Bluetooth
10787 Berlin (Germany)
or AUX cable.
Phone 00800 - 200 300 40 (toll-free)
The ROCKSTER XS is protected against
splashing water and dust and may also
Fax: +49 (0)30 / 300 930 930
be used outdoors. However, protect your
Service: www.teufelaudio.com/service
ROCKSTER XS from heavy or enduring rain.
Contact: www.teufelaudio.com/contact
Only use the ROCKSTER XS as described
in this user manual. Any other use will be
Before operating the speaker, please
deemed as not in accordance with the instruc-
first read the safety notes and user
tions and may lead to damage of property or
manual carefully. Only in this way, can
even persons.
you ensure that all functions are used in a safe
The manufacturer accepts no liability for dam-
and reliable manner. Store the user manual in
age caused by improper use.
a safe place and also be sure to pass it on to
The ROCKSTER XS is intended for private use.
any subsequent owner.
Explanation of terms
Package contents
You can find the following signal terms in this
1 × ROCKSTER XS
user manual:
1 × USB charger
Input: 100–240 V; Output: DC 5 V/2.1 A
1 × USB cable
This signal term indicates a moder-
(A plug to a Micro B plug)
ate risk, which, if not avoided, may
• Check that all items have been delivered
result in death or severe injury.
and that nothing is damaged. If necessary,
please contact our service team (see "Con-
tact").
This signal term indicates a low risk,
• Never operate a damaged device.
which, if not avoided, may result in
minor or moderate injury.
page 11
Bottom
(5) Increase the volume
(6) Push and hold the
button
for approx. 3 seconds:
®
Activate Bluetooth pairing and, if appli-
cable, disconnect the existing Bluetooth ®
connection.
Push and hold for approx. 10 seconds:
®
Delete the list of Bluetooth devices paired
to date.
(4) (7) Reduce the volume
(5)
(6)
(8) AUX jack (3.5 mm) for connecting an
(9) Type A USB jack for providing power to an
(10) Type B micro USB jack for charging
page 5 page 6
NOTICE
This signal term warns you of poten-
tial damage.
Safety notes
This chapter contains general safety notes
®
, USB
which you should always observe to protect
yourself and third parties. Also observe the
warning notes in each chapter of this user
manual.
WARNING
Touching live parts can result in se-
vere injury or death.
– Only use accessories recommended by
the manufacturer.
– Only use the enclosed AC adapter plug
or an AC adapter plug with an identical
construction. Make sure that the cor-
rect voltage is present. More detailed
information is available directly on the
AC adapter plug.
– Check the AC adapter plug regularly
for damage. Do not use the AC adapter
WARNING
plug in any case if its housing is defec-
tive or exhibits other visible damage.
– Only use the AC adapter plug indoors
and not in wet rooms; protect it from
dripping and splash water.
CAUTION
– Never open the housing of the AC
adapter plug or of the ROCKSTER XS.
– Pull the mains adapter out of the socket
in the event of an incoming storm or if
page 12 page 13
LEDs
ROCKSTER XS
LAUTSPRECHER TEUFEL GMBH
BUDAPESTER STRASSE 44
10787 BERLIN - GERMANY
(15)
(8) (9) (10)
(11) Power LED lights up when the
external player via an audio cable with a ROCKSTER XS has been switched on
3.5 mm jack plug (12) Display of the rechargeable battery
charge level
external player (e.g. smartphone)
Rechargeable bat-
tery charge level
the rechargeable battery built into the
76–100 %
ROCKSTER XS as well as for operation as
51–75 %
a sound card on a PC or MAC
26–50 %
11–25 %
≤ 10 %
(13) Display for the right stereo speaker in
Stereo Connect mode
(14) Bluetooth ® LED illuminates continuously:
The connection has been established
blinks slowly: Pairing mode
blinks quickly: List of the devices paired
so far will be deleted
(15) Display for the left stereo speaker in the
Stereo Connect mode
page 7
you do not intend to use the device for a
prolonged period of time.
Danger of explosion: Rechargeable
batteries (particularly lithium batter-
ies) can explode if used improperly.
– Keep the ROCKSTER XS away from heat
sources (e.g. ovens, radiators, amplifi-
ers etc.).
Do not expose the ROCKSTER XS to
direct sunlight.
Never attempt to dispose of the
ROCKSTER XS by burning it.
– Only use the accessories and equip-
ment parts (e.g. the rechargeable
battery) offered or recommended by the
manufacturer.
– Protect the rechargeable battery
against intense heat such as direct
sunlight, fire etc.
– Do not place open flames such as
burning candles or similar on the
ROCKSTER XS.
– Do not use the ROCKSTER XS near
water.
– If the housing is defective, stop using
the ROCKSTER XS and store it so that it
is not accessible for children.
– Only have qualified personnel per-
form all repair and maintenance work.
Inspection and/or repair is necessary if
the ROCKSTER XS has been damaged
in some way, e.g. if moisture or small
parts have penetrated the device, the
page 14
Charging The Rechargeable
Battery
(11)
ROCKSTER XS
LAUTSPRECHER TEUFEL GMBH
(12) BUDAPESTER STRASSE 44
10787 BERLIN - GERMANY
(13)
(14)
(10)
The rechargeable battery in your
ROCKSTER XS is charged via the USB cable.
Use the enclosed USB charger to charge it for
approx. 3 h before first use.
• To charge the device, connect the USB jack
Illuminated LEDs
(10) with the USB jack of the enclosed USB
charger. Use the enclosed USB cable to do so.
• • • •
• You can also charge it using the USB port
• • •
of your PC. However, this will significantly
• •
increase the charging time.
•
• LED is flashing The charge level of the rechargeable battery is
indicated by the 4 LEDs (12) during the charg-
ing process.
LEDs
When the When the
Charge level
device is device is
switched on switched off
100 % • • • • all LEDs are off
76–99 % • • • • • • • •
51–75 % • • • • • •
26–50 % • • • •
≤ 25 % • •
