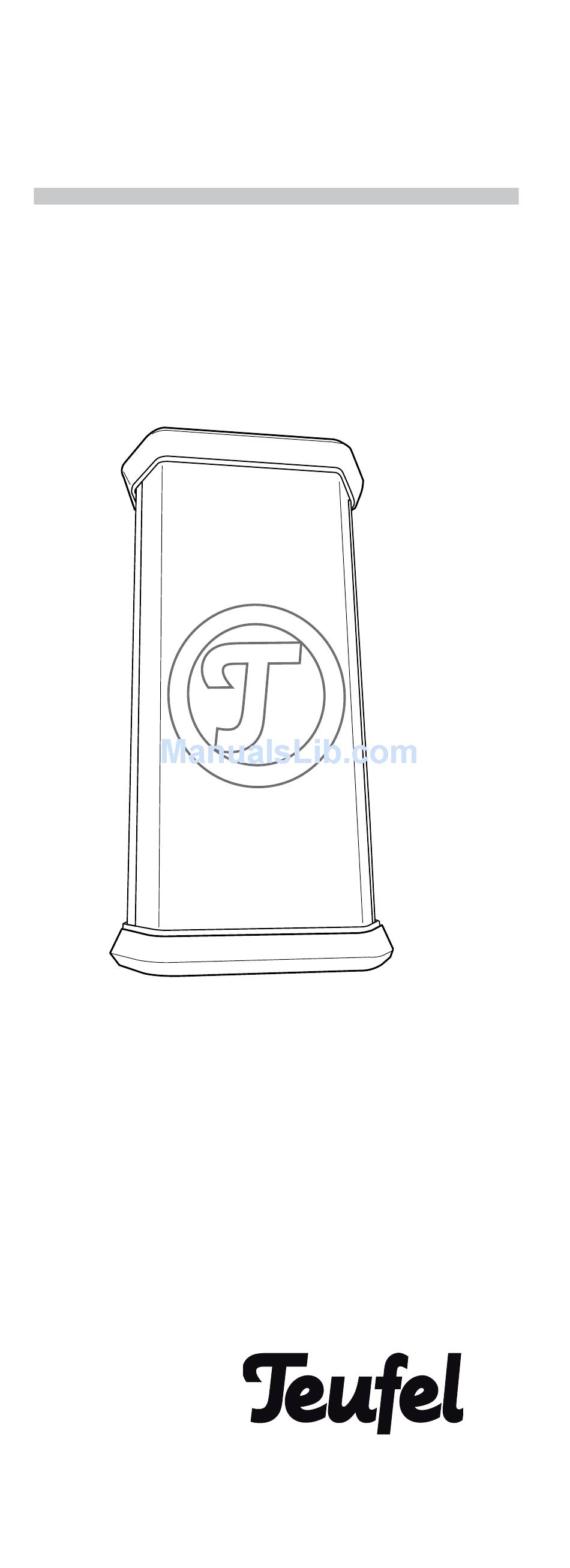

- Page 1 Technical Description and Operating Instructions ROCKSTER XS Mobile Active Bluetooth Outdoor Speaker...
-
Page 2: Table Of Contents
Notice The information in this document may change without prior notice and in no way constitutes any liability on the part of Lautsprecher Teufel GmbH. No part of these instructions may be repro- duced in any form or be broadcasted in any... - Page 3 Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH BIKINI Berlin Budapester Str. 44 10787 Berlin (Germany) Phone: 00800 - 200 300 40 (toll-free) Fax: +49 (0)30 / 300 930 930 E-Mail: service@teufelaudio.com www.teufelaudio.com • ROCKSTER XS...
- Page 4 However, you must protect your ROCKSTER XS against strong and persistent rain. Only use the ROCKSTER XS as described in this user manual. Any other use will be deemed as not in accordance with the instructions and may lead to physical damage or even injury of persons.
-
Page 5: For Your Safety
– Use only the supplied mains adapter. Make sure that the mains voltage is correct. More detailed information is available directly on the mains adapter. – Check the mains adapter regularly for damage. Never use the mains adapt- • ROCKSTER XS... - Page 6 Risk of explosion: Batteries (particularly lithium batter- ies) can explode if used improperly. – Do not install the ROCKSTER XS near any heat sources such as radiators, heat registers, stoves, or other ap- paratus (including amplifiers) that produce heat.
- Page 7 – Only use the ROCKSTER XS under the following conditions: • Ambient temperature: max. 40 °C • Maximum height above sea level:...
- Page 8 CAUTION An unsuitable location could lead to damage. – Do not use the ROCKSTER XS in envi- ronments with a risk of explosion. – Only use Bluetooth in locations where wireless transmission is permitted. Extended listening at high vol- umes may lead to hearing loss.
-
Page 9: Control Elements And Connections
Notice: This function is only available during operation with internal battery. If the ROCKSTER XS charges itself, the USB type A jack is deactivated. AUX input jack (3.5 mm) for connecting an external player via an audio cable with a 3.5 mm jack plug. - Page 10 Bluetooth connection (press and hold for 3 s). Outdoor mode on/off (higher maximum volume, optimized for outdoor use). When on, the LED below the button lights up red). Volume up (+) / volume down (–). NFC contact zone • ROCKSTER XS...
-
Page 11: Charging The Rechargeable Battery
Charging the Rechargeable Battery The rechargeable battery in your ROCKSTER XS is charged via the USB cable. Charge it for ap- prox. 3 h before first use. • To charge the device, connect the USB jack with the USB jack of the enclosed USB charg- er. -
Page 12: Operation
If the ROCKSTER XS has been switched on, the red LED will illuminate. It will turn off when unit shuts down. Tip: You should always turn off your ROCKSTER XS when it is not in use to save battery power. ® Bluetooth pairing... - Page 13 The blue LED is now continuously illumi- nated and your ROCKSTER XS will play back all sounds that would otherwise be played by your external player. To terminate the Bluetooth connection, hold the button down for approx. 3 seconds. Restoring the connection with a paired...
-
Page 14: Other Functions
Automatic deactivation When the ROCKSTER XS is not in operation and you do not push any button, the ROCKSTER XS will switch to energy-saving mode after approx. 20 minutes (the red LED will only be slightly lit). - Page 15 ROCKSTER XS at the same time. The exter- nal player on which playback was last started always has precedence. 1. Pair external player 1 with the ROCKSTER XS. 2. Pair external player 2 with the ROCKSTER XS too. 3. Connect external player 1 again with the ROCKSTER XS (select it from the list of paired devices).
- Page 16 ® “Stereo Connect” via Bluetooth You can enjoy your music in stereo with a sec- ond ROCKSTER XS. For this, you must first con- nect the two ROCKSTER XS with one another. Requirements: • Before you activate the “Stereo Connect”...
- Page 17 – Do not in any case use solvents or abrasive cleaners. To clean your ROCKSTER XS • Turn the ROCKSTER XS off and remove all cable connections before you start cleaning. • Ideally, you can remove any dust or light dirt with a dry microfibre cloth.
-
Page 18: Protecting The Environment
• Power supply: 5 V DC, 2.1 A max • Battery: Li-Ion 7.4 V/4400 mAh • Dimensions (L×W×H): 176 x 87 x 70 mm You can find further technical data on our web- site. Technical changes reserved! • ROCKSTER XS... -
Page 19: Declaration Of Conformity
DIN EN 61000-3-2:2010 DIN EN 61000-3-3:2014 DIN EN 60065:2011 DIN EN 62133: 2013 DIN EN 62321: 2009 ETSI EN 301489-1 ETSI EN 300328 V 1.8.1: Verordnung 1275/2008 Verordnung 0125/2009 Ausstellungsdatum / 09. Oktober 2015 Date of issue: • ROCKSTER XS... -
Page 20: Lautsprecher Teufel Gmbh
Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH BIKINI Berlin Budapester Str. 44 10787 Berlin (Germany) Phone: 00800 - 200 300 40 (toll-free) Fax: +49 (0)30 - 300 930 930 www.teufelaudio.com No responsibility is assumed for the correct- ness of this information.
