TUMBLE DRYER
Dryer
Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
MODEL:
MD20EH80WB-A3
EN
Advertisement
Table of Contents
Related Manuals for Midea MD20EH80WB-A3
Summary of Contents for Midea MD20EH80WB-A3

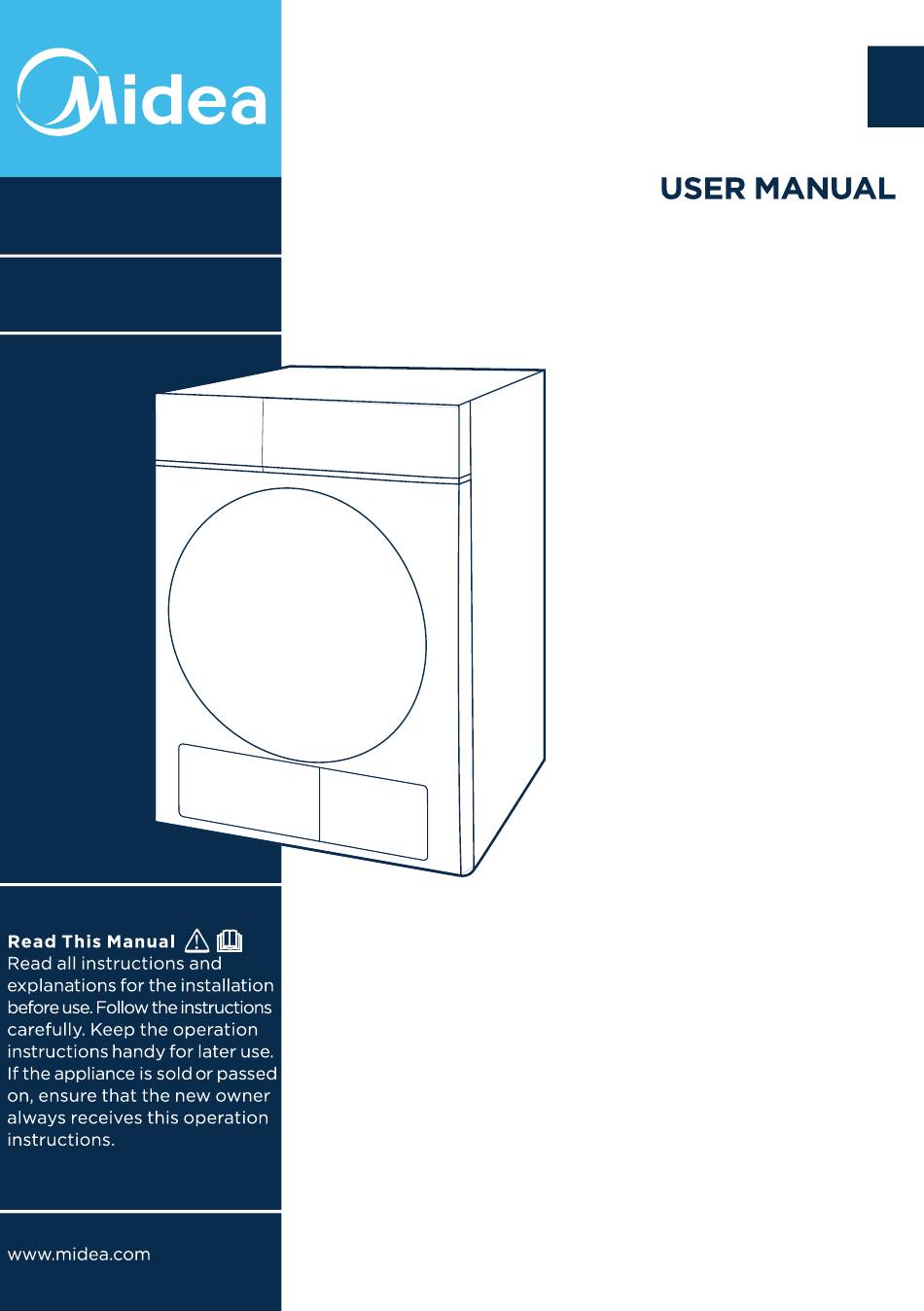

- Page 1 Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure that the new owner always receives this manual. MODEL: MD20EH80WB-A3...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Drying ..........Control Panel ............Option..............Display..............Programmes............Drying Programmes Table ........Consumption Data........... App Setup And Operation......... MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ -
Page 3: Intended Use
SAFETY INSTRUCTIONS Safety Instructions CAUTION: RISK OF FIRE ! ！ WARNING! To prevent any damages to your and others' life or property, you have to follow the safety notes. Intended use • This heat pump dryer is intended for drying typical amounts of household laundry, which have been washed with water. -
Page 4: Electric Shock Hazard
SAFETY INSTRUCTIONS ！ WARNING! Electric shock hazard • Before connecting the tumble dryer, ensure that the connection parameter on the rating plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician. •... - Page 5 SAFETY INSTRUCTIONS • WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. • Do not connect the appliance to the mains electricity supply by an extension lead, multi-socket adapter or similar.
- Page 6 SAFETY INSTRUCTIONS • Do not operate the dryer without the door filters. • Do not dry the clothes before being spun. • Do not expose the dryer directly under the sun. • Do not install the dryer in humid and drenching environment. •...
- Page 7 SAFETY INSTRUCTIONS • Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
-
Page 8: Safety With Children
SAFETY INSTRUCTIONS Safety with children • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 9 SAFETY INSTRUCTIONS UV Radiation Safety • This warning only covers products which contain a UV-C lamp and which have a germs reduction function with UV-C lamp. • The device contains a lamp that emits UV-C rays. Do not look at the source of light while the lamp is operating! •...
- Page 10 SAFETY INSTRUCTIONS • In cases where UV-C lamp and related parts need to be replaced (expiration of lamp life, break of lamp glass, etc.), call the technical service. Do not try to replace the parts by yourself. When waiting for technical service, make sure the machine cover is closed and the plug is disconnected! •...
-
Page 11: Correct Disposal Of This Product
The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites. Rated capacity Model 8.0kg MD20EH80WB-A3... -
Page 12: Installation
INSTALLATION Product Description Power cord Top board Control panel Water container Door Drum Door filters Maintenance cover Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail. Accessories The following parts are optional for specific models. If your dryer has following parts, please wear gloves to install them... -
Page 13: Installation Position
INSTALLATION Transport Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for transport. If the dryer can't be transported erectly, the dryer can be tilted to right less than 30°. Risk of injury and damage! Improper handling of the appliance may result in injury. -
Page 14: Level Adjusting
INSTALLATION 4. To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface. 5. The feet must never be removed. Level Adjusting Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. -
Page 15: Operation
OPERATION Quick Start Note! Before using, make sure the tumble dryer is installed correctly. Before Drying plug in load close the door Drying After Drying Buzzer beep and "End"on display. open the door and pull out the pour out clean the filters power off take out laundry container... -
Page 16: Before Each Drying
OPERATION Before Each Drying 1.Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy. 2.For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme. 3.Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc. - Page 17 OPERATION The reference weight of dry clothes (weight per item) Sweater Jacket Jeans Bath Towel (mixed 800g) ( cotton 800g ) (800g) (cotton 900g ) Shirt Single bedsheet Work clothes Pyjamas (cotton 300g ) (cotton 600g ) ( 1120g) ( 200g) Socks T-Shirt Underwear...
-
Page 18: Control Panel
OPERATION Control Panel... - Page 19 OPERATION Option Delay Delay This function is used for delaying the start of the drying programme up to 24 hours. When the delayed programme starts, the time starts to countdown on the display and the delay icon illuminate. 1.Load your laundry and make sure the machine door is closed. 2.Press the 【...
- Page 20 OPERATION Anti-Crease Anti-Crease At the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120 minutes (selected). This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except【Wool】,【Airfresh】 and【Time Dry】 all the other programmes have this function.
- Page 21 OPERATION UV Hygiene Hygiene 【 】 After selecting the program, you can choose the UV Hygiene function according 【 】 to your needs. Press UV Hygiene to select this function. Press it again to cancel. After selecting the 【UV Hygiene】 function, germs are removed during the drying process, making the clothes cleaner and safer.
-
Page 22: Display
OPERATION Display Delay Child Lock Remaining Time indicator/Error message Clean filters warning Empty water container warning Intensity iron dry,cupboard dry,extra dry Lamp Signal Anti-Crease Wireless Network Remote Control Hygiene Airfresh Cotton suitable for cotton and linen loads Wool suitable for wool loads Synthetics suitable for synthetics... -
Page 23: Programmes
OPERATION Programmes Before starting the appliance 1.Inset the plug into the socket. 2.Put your laundry loosely inside the drum. 3.Colse the door.Take care not to trap any items. 4.Switch on the machine. Programme selector 1.When the LED display screen brightens up, rotate the programme knob to select the desired programme. -
Page 24: Drying Programmes Table
OPERATION Drying Programmes Table Programmes can be set in App Programme Application/Properties Delay Time Load For single or multi-layer cotton laundry to be dried Extra completely for direct storage. 8.0kg For single layer cotton laundry to remain damp for Iron ironing. -
Page 25: Consumption Data
1000rpm 2:00 0.81 8.0kg 1000rpm 3:50 1.80 Cotton Extra 4.0kg 2:20 1.10 1000rpm 8.0kg 2:50 1.40 1000rpm Cotton Iron MD20EH80WB-A3 4.0kg 1000rpm 1:40 0.80 Synthetics Extra 3.5kg 800rpm 1:40 0.80 3.5kg 800rpm 1:30 0.65 Synthetics Cupboard Synthetics Iron 3.5kg 800rpm 1:20 0.55... -
Page 26: App Setup And Operation
APP SETUP AND OPERATION Use Your Appliance With the SmartHome App Before you start, make sure that: 1. Your smartphone is connected to home wireless network,and you know the network password. 2. You are near the home appliance. 3. The 2.4GHz band wireless signal is enabled on your wireless router. Follow the below steps to enter the remote control state Download the SmartHome App On an app market (Google Play Store, Apple App Store),... - Page 27 APP SETUP AND OPERATION Start the Remote Control Rotate the knob randomly to indicate one of the programs, and press [ continuously until the remote control icon light up in the knob display, which means it has entered the remote control state and you can start to control remotely. Wireless Network Status Light Slowly flashing Waiting for connection...
-
Page 28: Cleaning And Care
！ WARNING! • Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the " " icon will light. After the container is emptied, the dryer can be restarted by pressing 【Start/Pause】button. -
Page 29: Maintenance
MAINTENANCE Clean the heat exchanger ！ WARNING! Do not touch the heat exchanger with your hand, which may cause an injury. • As necessary, approx. once every 3 months, remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached. •... - Page 30 MAINTENANCE Clean Tumble dryer ！ WARNING! • Disconnect the power cord before cleaning! • Clean the dryer with a wet cloth which is only damped by clean water. • Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
-
Page 31: Trouble Shooting
MAINTENANCE Trouble Shooting Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it. Display Reason Solutions... - Page 32 MAINTENANCE Problem Solution • Check if the mains plug is inserted. •Display is not on • Check if the power supply works. • Check the selected programme . • Press the 【On/Off】button. • Check the water container. If it's full, please pour out the condensate water and restart the dryer.
-
Page 33: Technical Specifications
MAINTENANCE Technical Specifications Model MD20EH80WB-A3 Parameter Dimension(L*W*H) 600 595 *845(mm) +2°C ~ +35°C Ambient temperature Rated input power 750W Rated voltage 220-240V~ Rated frequency 50Hz Refrigerant R290 Weight of product 45kg Rated capacity 8.0kg CO - eq 0.00t Quantity of refrigerant... -
Page 34: Product Information Sheet
MAINTENANCE Product Information Sheet Measured according to EN 61121 and EU Regulation 2533/2023, 2534/2023. Energy efficiency class on a scale from A (more efficient) to G (least efficient). - Page 36 V1.0 16138200A19809...
