RRH62000
This document provides guidelines for integrating the RRH62000 into a customer's design, such as HVACs,
personal monitors, smoke detectors, or air purifiers, etc. These guidelines will help users obtain the best
performance of the RRH62000.
Contents
1.
The RRH62000 ................................................................................................................................................ 2
2.
Package Outline Drawing .............................................................................................................................. 2
3.
Adhesives ....................................................................................................................................................... 2
4.
Housing Materials .......................................................................................................................................... 3
5.
Orientation of the Module ............................................................................................................................. 3
6.
Mounting Examples ....................................................................................................................................... 3
7.
Revision History ............................................................................................................................................ 4
R36UH0012ED0100 Rev.1.00
May 31, 2024
Design Guide
Page 1
© 2024 Renesas Electronics

Advertisement

loading
Need help?

Need help?

Do you have a question about the RRH62000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas RRH62000

  • Page 1 Design Guide RRH62000 This document provides guidelines for integrating the RRH62000 into a customer’s design, such as HVACs, personal monitors, smoke detectors, or air purifiers, etc. These guidelines will help users obtain the best performance of the RRH62000. Contents The RRH62000 ..............................2 Package Outline Drawing ..........................

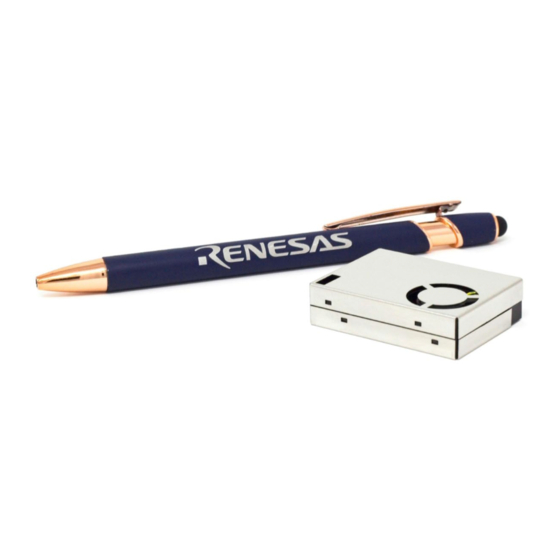

  • Page 2 RRH62000 Design Guide 1. The RRH62000 Figure 1 shows the RRH62000 module. Ensure to point the front side of the device with the inlet and outlet towards the ambient air. The backside contains the 6-pin connector (ACES 51468-0064N-001) which is compatible with the JST GHR series.
  • Page 3 Figure 3 shows the recommended installation orientations. This ensures that the heavier particles are properly expelled from the air duct. Orienting the inlet and outlet downwards forces the RRH62000 to suck in particles against gravity, resulting in under-reporting of the heavier particles. Also, when using the sensor in an air duct, make sure that the passing air does not carry the expelled particles back to the inlet.
  • Page 4 RRH62000 Design Guide 7. Revision History Revision Date Description 1.00 May 31, 2024 Initial release. Page 4 R36UH0012ED0100 Rev.1.00 May 31, 2024...
  • Page 5 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
