Summary of Contents for MAXHUB XBar U50

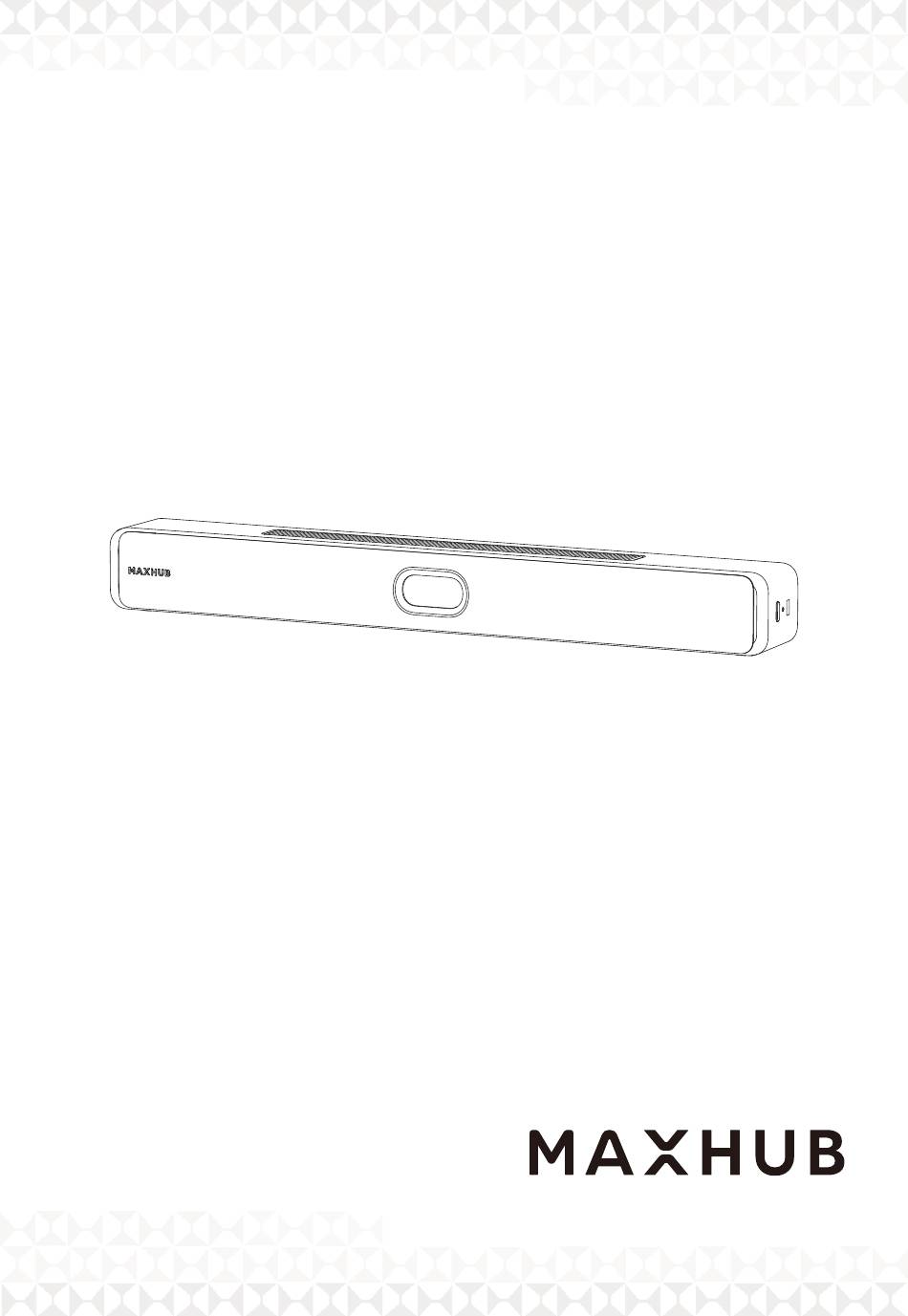

- Page 1 MAXHUB XBar U50 Quick Start Guide V2.0...
- Page 2 Table of Contents I. Package Contents ......02 II. Product Introduction ....... 03 III. Installation ...........07 IV. Wiring Diagram ......... 23...
- Page 3 Hereby, Guangzhou Shirui Electronics Co., Ltd. declares that the this product is compliant with the essential requirements. The complete Declaration of Conformity may be requested through the following postal ad- dress: MAXHUB EUROPE B.V. BEURSPLEIN 37, 3011AA ROTTERDAM, NETHERLANDS.
- Page 4 I. Package Contents Please check that the following items are included in the package: XBar U50 ×1 Quick Start Guide ×1 Positioning Card ×1 Remote Control Power Adapter ×1 Power Cord ×3 USB B-A Cable ×1 (AAA battery (1.5 m / 4.92 ft) (1.5 m / 4.92 ft)
- Page 5 II. Product Introduction Front Right Back...
- Page 6 Item Description Dual-lens camera with auto privacy Camera shutter. Indicator Light Indicates the state of the device. 1) In the off state: Press once to turn on. Power Button 2) In the on state: Press and hold for 5 seconds to turn off. Press and hold for 5 seconds to restore Reset Key Hole factory settings.
- Page 7 Remote Control: Item Description Camera Turn camera on/off. Microphone Microphone mute/unmute. Volume +/- Volume up/down. Direction Adjust the camera angle. To switch between the AI modes: Auto Framing, Speaker Camera AI Tracking, Intelligent Focus, Mode Smart Gather and Manual Mode. Number/ 1.
- Page 8 LED Status: LED Status Indication Power on / Standby / White solid Microphone unmute Green fast flash (On and Off flash Incoming call for 0.3s alternately) Green solid In a call Red solid Microphone mute White breathing (gradually brightening and dimming over 4s, Firmware upgrade then remaining dim for 1s.)
- Page 9 III. Installation When connecting the XBar U50 to other devices, you need to assemble the cable cover on the back of the U50. Step 1: Turn the screws D-ring counterclockwise and remove the rear cover. Step 2: Connect to other devices with the corresponding cables and arrange the cables properly.
- Page 10 Step 3: Place the cable cover back and turn the screws D-ring clockwise until the rear cover is securely attached to the device. Before installing the device, please make sure that the following accessories are included in the package: a×1 Mounting Bracket ×1 TV-Clip Mount ×1 TV-Clip Screw...
- Page 11 Step 1: Determine the position of the XBar U50 Mounting height affects your camera view. So you need to install U50 at a proper position: 1) Keep the distance between the XBar U50 and the TV set at least 1 cm (0.4 inch). ≥ 1 cm (0.4 in)
- Page 12 2) Confirm the XBar U50 mounting position according to the installation height. Installation Height Position 1.1 ~ 1.2 m (3.6 ~ 3.9 ft) Below the TV 1.8 ~ 2 m (5.9 ~ 6.6 ft) Above the TV Below the TV 1.1 m <...
- Page 13 Step 2: Mount the U50 to the wall Stick the positioning card onto the mounting position and drill 4 punching holes. Drilling position Positioning Card Recommended drilling hole size: Hole diameter: 6 mm Hole depth: 32mm Insert 4 pieces of wall anchors c into the punching holes.
- Page 14 Open the mounting bracket at 90° to the wall, and fix the bracket to the installed wall anchors with 4 wall screws d. 90° d×4 Option 1: Mount the XBar U50 below the TV. Attach the U50 to the assembled bracket, and secure with two wing thumb screws b. b×2...
- Page 15 Option 2: Mount the XBar U50 above the TV. 1) Open the bracket panel at 90° and secure the XBar U50 to the bracket with two wing thumb screws b. 90° b×2 2) Plug in the cables as needed and rotate the XBar U50 down to the bracket.
- Page 16 Option 2: Mount on a Flat Surface Open the mounting bracket at 90° to the wall, and remove the four screws from the joint to seperate the two parts into A and B. 90° Rotate A part 180°, and then insert the four screws back into the joint and tighten them.
- Page 17 Attach the assembled bracket to the U50, and secure with two wing thumb screws b. b×2 Rotate B part back 90° to make sure that the bracket is level with the bottom of the U50.
- Page 18 Option 3: Mount on a TV or Display * Step 1-2 is the same as mounting on a flat surface. Open the mounting bracket at 90° to the wall, and remove the four screws from the joint to seperate the two parts into A and B.
- Page 19 Fix the TV-clip mount to the mounting bracket with a TV-clip screw a. a×1 Attach the assembled bracket to the U50, and secure with two wing thumb screws b. b×2...
- Page 20 Remove the release film of the double-sided adhesive on the TV-clip mount, and attach the assembled bracket to the back of the TV. Front Back NOTE 1. Ensure that the adhesive area is clean and oil-free. 2. The adhesive area on the TV needs to be larger than the double-sided tap.
- Page 21 Adjust the Camera Tilt It is recommended to adjust the bracket angle within 10° up or down for your camera view. 10˚ 10˚ Reference Angle: √ × ×...
- Page 22 Option 4: Mount on the TV VESA (Optional) Please purchase the following accessories seperately before TV VESA mounting: Screw Package M4×6 Machine Screw ×8 1/4” Inch Screw ×2 M8×25 Machine Screw ×4 8.5 × 20 Washer ×2 3×150mm Nylon Cable Ties ×2 WIB20 Anti-slip Pad Upper and Lower...
- Page 23 You can mount the XBar U50 above the display or below the display with the WIB20 bracket: Above the Display: Display mouting on the wall Display mouting on the mobile stand Below the Display: Display mouting on the wall Display mouting on the mobile stand...
- Page 24 Firmware Upgrade You can update the firmware version through the Align application. On the XBar U50 Upgrade page, you can update the firmware version via Local Upgrade and Online Upgrade. For local upgrade, you can download the firmware from the download centre of the website: https://...
- Page 25 IV. Wiring Diagram Option 1: Connect to your PC Display Power cable XBar U50 HDMI cable USB B-A cable Laptop...
- Page 26 Option 2: Connect to the Meeting System XBar U50 Power cable USB B-A cable HDMI cable Mini-PC Display Ethernet cable Control Panel...
- Page 27 Option 3: MAXHUB CMA Display+XBar U50 BYOD Bundle (Optional) a. Wired BYOD Mode Power cable XBar U50 USB B-A cable CMA Display USB-C cable Laptop...
- Page 28 Wireless BYOD Mode CMA Display USB B-A cable Power cable XBar U50 Laptop NOTE The Wi-Fi dongle need to be purchased seperately.
- Page 29 MAXHUB MAXHUB.Global maxhub-overseas/...
