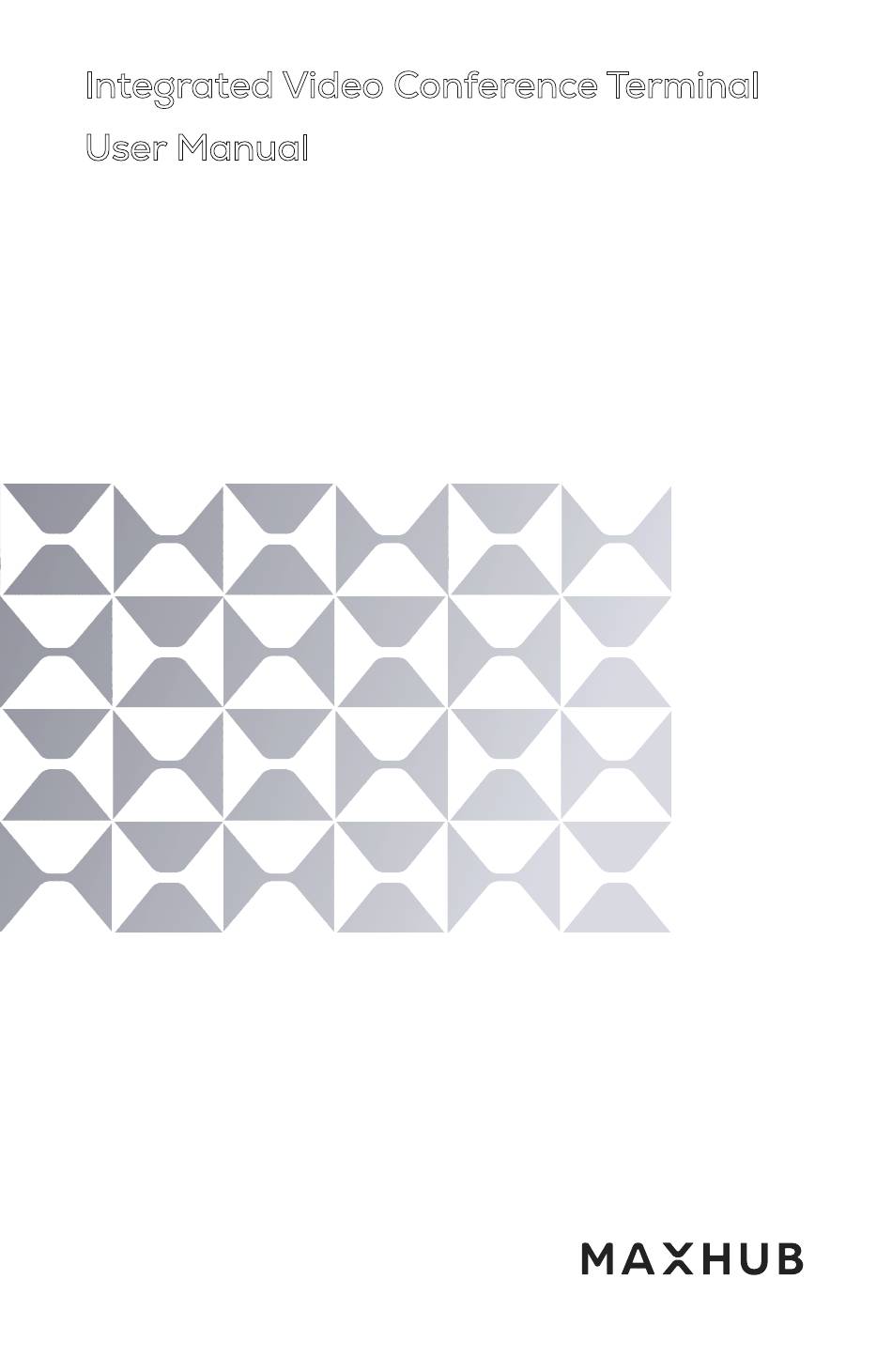

- Page 1 Integrated Video Conference Terminal User Manual Note: All the pictures in this manual are for reference only, please refer to the actual product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Warning and Precautions............1 2. Statement...................2 3. Package Content................2 4. FCC Caution..................3 5. Federal Communication Commission Interference Statement....3 6. Product Information................5 7. Remote Control...................6 8. Mount....................7 9. How to Connect..................9 10. Meeting Room Use Cases...............11 11. FIrmware Update................12 12. -
Page 3: Safety Warning And Precautions
1. Safety Warning and Precautions Before using and operating this device, please read thoroughly and comply with the following precautions in order to prevent accidents or abnormal operation. ① Operating Environment •DO NOT place the product in dusty and humid environments in case of internal short circuit. -
Page 4: Statement
④ The company reserves the rights to improve and change the appearance and design of the product without notice. Operating Notes: IMPORTANT: Visit HTTP://www.maxhub.com for the latest firmware updates and User Manual. Warranty: To view the product warranty, please use the following link: HTTP://www.maxhub.com... -
Page 5: Fcc Caution
4. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5. - Page 6 This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health.
-
Page 7: Product Information
6. Product Information POWER (PD) AUDIO OUT Camera Indicator light PIR: In power-on mode, it will automatically enter standby state if no moving object is detected within 3meters within 30minutes; In standby mode, it automatically starts up when detecting moving objects within 3meters. Lockhole Power Button: In startup mode, press the power button to mute. -
Page 8: Remote Control
7. Remote Control : Power Button, press to enter Energy-saving state, Press and hold for 2 seconds to power off. : Volume Button, press to adjust the system volume. : Digital Zooming, press to digitally zoom the camera. After zooming in, the direction button may move the camera image. -
Page 9: Mount
Number keys : Digital input . : Turn on/off the microphone. : It needs to be used with MAXHUB ALIGN: Turn on DOA: Auto Framing and voice tracking; DOA OFF: Auto Framing. Note: The default is to turn on. - Page 10 Method 2: Place Integrated Video Conference Terminal on a table and fix the bracket to it. Attach the bracket to the wall with the included screws, or any appropriate type of screws wall for your wall type. Mounting Integrated Video Conference Terminal to the bracket fixed on the wall.
-
Page 11: How To Connect
9. How to Connect 9.1. Hardware connection Please connect the device as shown below before use. ① Connect the power jack of the power adaptor to the product. ② Use the included USB-C cable to connect this product to the computer. ③... - Page 12 ① Open the video application (eg: Zoom, Teams, Meetup) ② Select MAXHUB UC S07 as the main camera source ③ Select MAHXUB UC S07 as the main speaker and microphone source ④ You may use the Remote Control to adjust the sounds or control the camera view.
-
Page 13: Meeting Room Use Cases
10. Meeting Room Use Cases 10.1. Bring Your Own Device (BYOD) Meeting Room Set Up •UC S07 features a high-quality 4K camera, 8 microphone array and a Tweeter+Woffer combo speaker, into a single device that makes setting up your BYOD meeting room a breeze. -
Page 14: Firmware Update
11. FIrmware Update Firmware updates improve performance and add new functionality of the Product. Please download and install the MAXHUB Align software to perform firmware update. MAXUB Align software can also be used to control and configuring the audio and video attributes of the product. For details instruction please visit HTTP://www.maxhub.com for the latest... -
Page 15: Led Light Bar Status Indicator
12. LED light bar Status Indicator UC S07 System Status LED light bar indicator Product booting up Blue light pulsing from left to right Fully booted up and ready Solid White Product in use - Mic and Camera both on... -
Page 16: Common Faults And Troubleshooting
After indicating the direction, it will turn back to white color Why the image is fliped? Set the flip vertically and Reverse mount How can I fix it? horizontally in the MAXHUB Align... - Page 17 WWW.maxhub.com/en/ maxhub-overseas/ MAXHUB MAXHUB.Global...
