Sonoff RF Bridge User Manual
433mhz
Hide thumbs
Also See for RF Bridge:
- User manual (54 pages) ,
- User manual (41 pages) ,
- User manual (5 pages)
Related Manuals for Sonoff RF Bridge
Summary of Contents for Sonoff RF Bridge

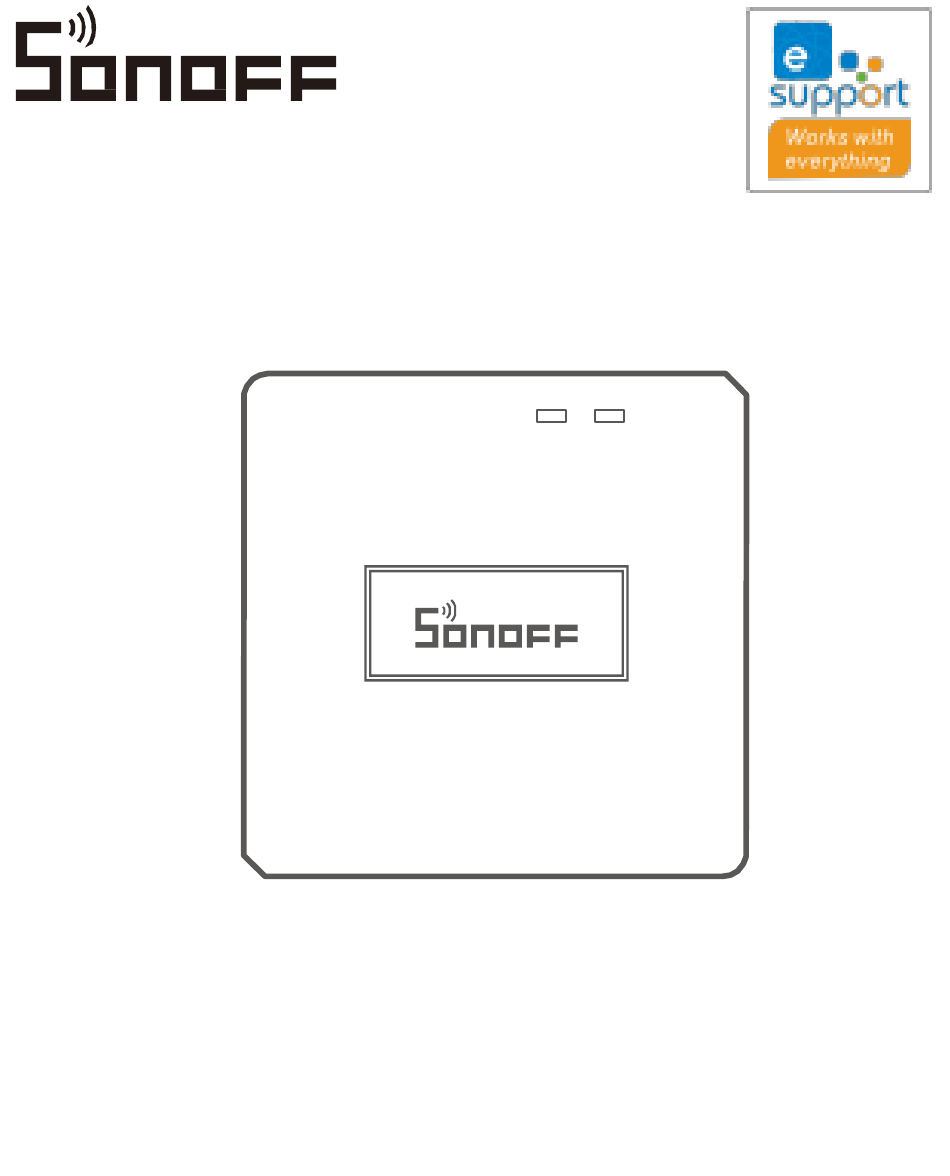

- Page 1 RF Bridge User Manual V1.0 433MHz RF Bridge 433MHz RF Bridge 中 文 ---------1-6 English --------------- 7-12...
- Page 2 Operating Instruction 1. Download APP eWeLink eWeLink 2. Power on After powering on, the device will enter the quick pairing mode ( Touch) during the first use. The Wi- Fi LED indicator changes in a cycle of two short and one long flash.
- Page 3 The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you want to enter this mode, please long press the pairing button for about 5s until the W i-Fi LED indicator changes in a cycle of two short and one long flash and release.
- Page 4 1-button 2-button 3-button 4-button N o re m o te Curtain TAP here to add a Remote Alarm Cancel Confirm Tap "+" select the corresponding device type on APP, then proceed to "Conform". RF Bridge can add up to16 sub-devices.
- Page 5 5. Add sub-device RF B ridge My Re mo te Butto n 1 Set the added remote controller to pairing mode: long press for 2s on "My Remote" until you hear a “Beep”, then operate the sub-device to pair with the device. Please refer to the user manual of sub-devices for pairing with sub-devices.
- Page 6 Specifications Model RF Bridge Input 433.92MHz Wi-Fi IEEE 802.11 b/g/n 2.4GHz Operating systems (Android 4.1 & iOS 9.0) or higher W orking temperature -10℃~40℃ Material Dimension 62x62x20mm Product Introduction RF LED indicator(Red) Wi-Fi LED indicator(Blue) Input Pairing button...
- Page 7 LED indicator status instruction Blue LED flashes (one long Quick Pairing Mode and two short) Compatible Pairing Mode (AP) Blue LED flashes quickly Blue LED keeps on Device is connected successfully Blue LED flashes quickly once Unable to discover the router Connect to the router but fail to Blue LED flashes quickly twice connect to Wi-Fi...
- Page 8 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 9 Radiation Exposure Statement To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
