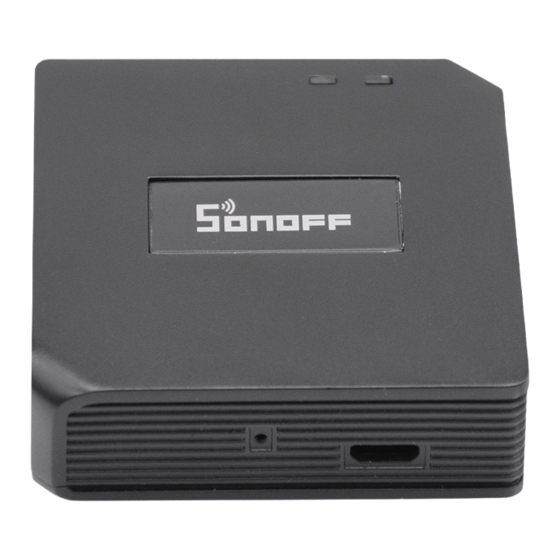

RF Bridge
User manual V1.2
433MHz RF Bridge
433MHz RF Bridge

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF Bridge and is the answer not in the manual?

Questions and answers

Зарина
May 21, 2025

После того,как нажали кнопку "сопряжения", перестал работать вай фай мост Sanoff rf bridge, при подключении к сети не моргают никакие индикаторы, и не удается найти в сетях

0
1 comments:
Mr. Anderson
May 24, 2025

If the Sonoff RF Bridge stops working and the indicators do not light up after pressing the pairing button, check the board for burn marks or burning smell. Ensure the connected device’s power does not exceed the supported limit. Use a multimeter to test both ends of U1 for about 300V DC. If no voltage, re-solder U1. If U1 has voltage, check D5. If D5 has no voltage, re-solder C10. If D5 has voltage, send the device for repair.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Sonoff RF Bridge

Summary of Contents for Sonoff RF Bridge

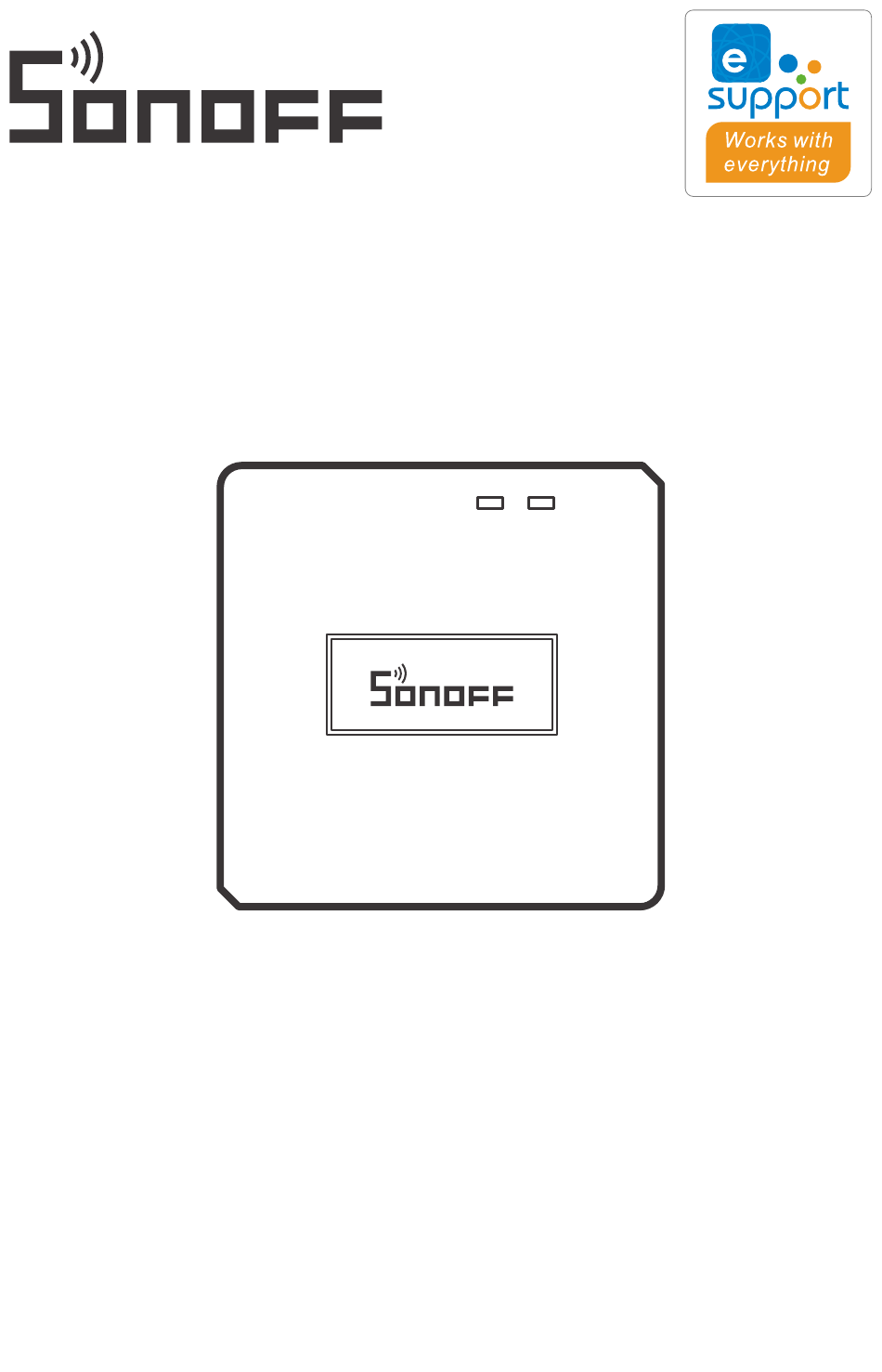

  • Page 1 RF Bridge User manual V1.2 433MHz RF Bridge 433MHz RF Bridge...
  • Page 2 Red LED flashes quickly Searching and adding ... Features This is a 433MHz RF bridge with multiple features that allows you to connect a variety of 433MHz wireless devices through switching 433MHz to Wi-Fi. You can set schedules, countdowns, alarm notifications and more.
  • Page 3 Android™ & iOS 2. Power on 433MHz RF Bridge Use the Micro USB cable to power the device, After powering on, the device will enter the quick pairing mode during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash.
  • Page 4 Learn up to 64 433MHz codes. Specifications RF Bridge, RF BridgeR2 Model Input 433MHz IEEE 802.11 b/g/n 2.4GHz Wi-Fi Operating systems Android & iOS Working temperature -10℃~40℃ RF Bridge: ABS V0, RF BridgeR2: PC V0 Material RF Bridge: Black, RF BridgeR2: White Colors Dimension 62x62x20mm...
  • Page 5 Switch Network If you need to change the network, long press the pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the device enters quick pairing mode and you can pair again. Factory Reset Deleting the device on the eWeLink app indicates you restore it to factory setting.

This manual is also suitable for:

Rf bridger2
