Vari Lite VL1100 ERS User Manual

Luminaire
Hide thumbs

Advertisement

Quick Links

Download this manual
VAJRll � �lll T
®
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the VL1100 ERS and is the answer not in the manual?

Questions and answers

Related Manuals for Vari Lite VL1100 ERS

Summary of Contents for Vari Lite VL1100 ERS

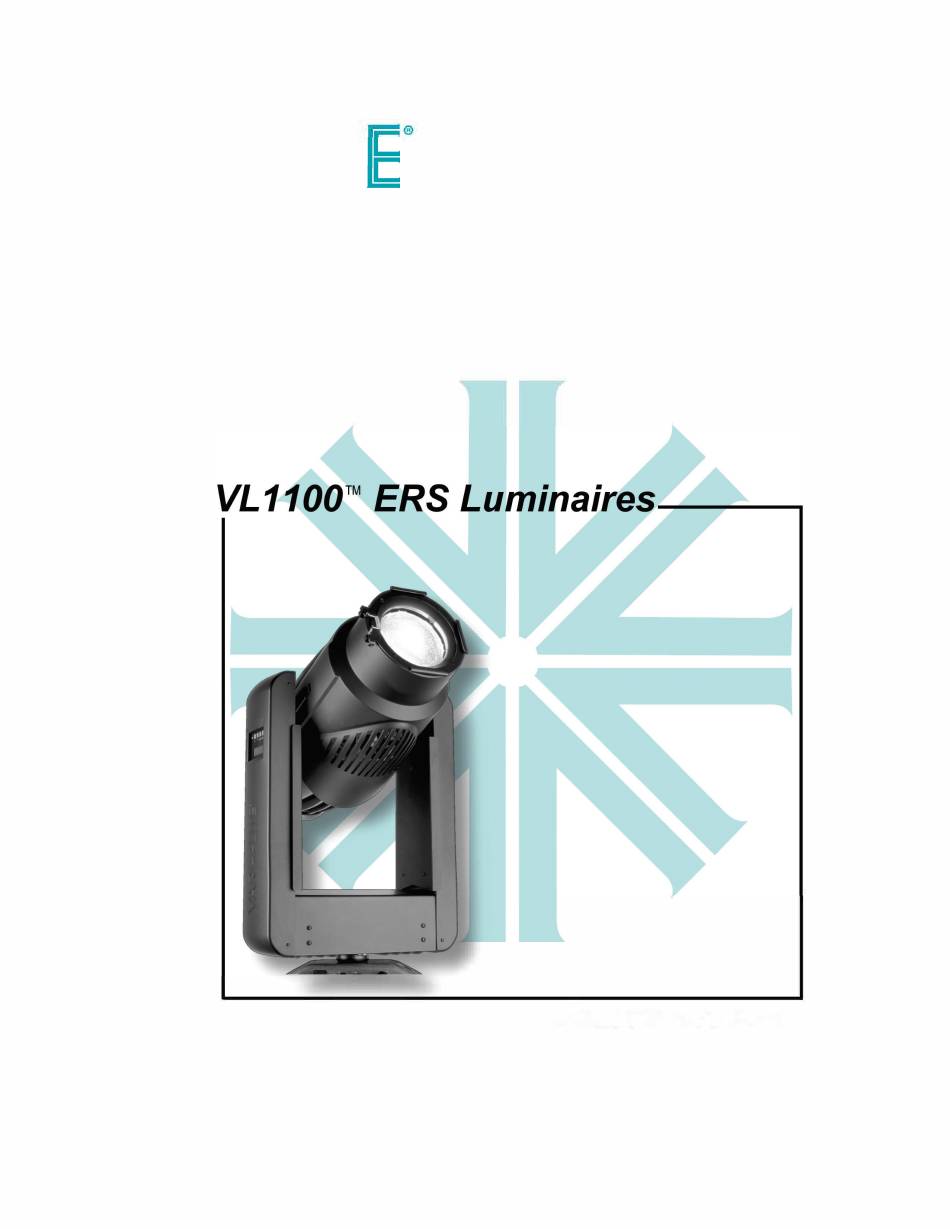

  • Page 1 VAJRll � �lll T ® USER'S MANUAL...
  • Page 2 VARI❋LITE® is a trademark owned by Genlyte Thomas Group LLC and is registered in the United States and other countries. VL500™ (and the individual product designations), VL1000™, VL1100™, VL2000™, VL2201™, VL2202™, VL2400™ (and the individual product ™ designations), VL2500™, VL3000™, VL3500™, VLX™, Series VLX™, Series 500 , Series 1000™, Series 1100™, Series 2000™, Series 3000™, DICHRO❋TUNE™, VARI❋IMAGE™, VARI❋BRITE™...
  • Page 3 OREWORD How To Obtain Warranty Service A copy of the Vari-Lite Limited Warranty was included in the shipping package for this VARI❋LITE® product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548) or +1-214-647-7880 or via e-mail at entertainment.service@philips.com request a Return Material Authorization (RMA) for warranty service.
  • Page 4 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
  • Page 5 OREWORD Safety Notice It is extremely important to read ALL safety information and instructions provided in this manual and any accompanying documentation before installing and operating the products described herein. Heed all cautions and warnings during installation and use of this product. Safety symbols used throughout this manual are as follows: CAUTION advising of potential damage to product.
  • Page 6 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE® luminaires use a lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 OREWORD Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.
  • Page 8 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI❋LITE®-Scheinwerfer verwenden die Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z.
  • Page 9 OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
  • Page 10 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI❋LITE® utilisent une lampe qui produit des rayons UV. NE PAS fixer son regard sur la lampe. 2.
  • Page 11 OREWORD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto. Los símbolos de seguridad usados en este manual son los siguientes: CUIDADO, indica posibles daños al producto.
  • Page 12 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI❋LITE® usan un tipo de lámpara que produce radiación UV. NO mire directamente a la lámpara. 2.
  • Page 13 OREWORD 02.96 64.000 1 0 04 No vemb er 2009...
  • Page 14 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 15 Included Items......................8 Luminaire Overview ....................9 Dimmer Model Overview ..................10 Arc Model Overview ....................11 Accessories VL1100 ERS Replacement Items/Accessories ............12 Chapter 2. Installation Power and Data Cabling Requirements AC Power........................14 Current vs. Voltage....................14 Lamp Power ....................... 15 Data Cables ........................
  • Page 16 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Chapter 3. Operation DMX Operation Channel Mapping....................... 38 Control Channel Functions ..................40 DMX Data Display ....................41 DMX Mapping Color Mixing......................42 Rotating Gobo Wheel....................43 Index/Rotation......................43 Shutter Mechanism ....................44 Luminaire Timing Timing Channel Information..................
  • Page 17 ABLE OF ONTENTS Output ........................78 Weight and Dimensions ..................78 02.96 64.000 1 0 04 No vemb er 2009...
  • Page 18 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Notes 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 19 NTRODUCTION BOUT ANUAL Introduction About This Manual This manual provides necessary information regarding safety, installation, operation and routine maintenance for the VARI❋LITE® VL1100™ Ellipsoidal Reflector Spotlight (ERS) luminaire. Familiarizing yourself with this information will help you to get the most out of your product. WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to the product and potential injury to yourself or others.
  • Page 20 LCD Menu Display read-out. Example: Press [Up] / [Down] arrows until LAMP appears. Additional Documentation A service manual for Authorized VARI❋LITE® Service Centers and technicians of the VL1100 ERS luminaire is available in electronic (PDF) format: • VL1100 ERS Luminaire Service Manual (02.9664.0010) - Testing, Troubleshooting, Component Replacement and Illustrated Parts Breakdown.
  • Page 21 NTRODUCTION USTOMER ERVICE How to Reach Us For assistance in your area, call the dealer from which your product was purchased. Contact an Authorized Service Center. Contact the Vari-Lite Customer Service Department, 9am -6pm CST Monday through Friday, at the following: Phone: 1-877-VARI-LITE (1-877-827-4548) or +1-214-647-7880 E-mail:...
  • Page 22 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Notes 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 23 HAPTER Description This chapter contains descriptions of luminaire features and components, along with a list of accessories which are available. • Features • Components • Accessories 02.96 64.000 1 0 0 4 No vemb er 200 9...
  • Page 24 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Features Standard Features VL1100 Ellipsoidal Reflector Spotlight (ERS) luminaires have the following standard features: • Automated zoom optics system. • Crossfading CYM color system. • Diffusion system. • Six-position rotating gobo wheel (five rotatable, indexable gobo positions and one open gobo position).
  • Page 25 ESCRIPTION EATURES VL1100 TSD Luminaire (20.9664.0001.22 - Black / 20.9664.0001.22.02 - White) • 1000W Tungsten Halogen lamp source. • 115V on-board electronic IGBT dimmer. • Four-blade shutter framing system. VL1100 TID Luminaire (20.9664.0001.23 - Black / 20.9664.0001.23.02 - White) • 1000W Tungsten Halogen lamp source.
  • Page 26 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Components Included Items The following illustration shows the included components for either the incandescent or arc models. Incandescent Models Neutrik PowerCon ® AC Input Connector Unconnectorized Lamp Cable VL1100 Incandescent Luminaire Arc Models Neutrik PowerCon ®...
  • Page 27 ESCRIPTION OMPONENTS Luminaire Overview The following illustration shows the external luminaire components and controls. Base Input Panel Provides hook mounting holes and safety cable Provides DMX In and connection. Thru, and AC Power connections. Yoke Leg (Control) Contains main control Latch PCB and display PCB.
  • Page 28 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Dimmer Model Overview An electronic IGBT on-board dimmer is included with VL1100 incandescent dimmer models. The dimmer heatsink is visible on the power-side yoke leg as shown in the following illustration. On-Board Electronic IGBT Dimmer Internal lamp power dimmer, configured for either 115V or 230V operation depending...
  • Page 29 ESCRIPTION OMPONENTS Arc Model Overview An external ballast unit is included with VL1100 arc models. In this case, the lamp power input cable is already connectorized for use with this unit. The following illustration shows the external arc ballast components. Lamp Power Input Cable Supplied cable and connector used to connect luminaire to ballast unit.
  • Page 30 VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Accessories VL1100 ERS Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from Vari-Lite. (Please order by Vari-Lite part number.) CCESSORY 21.9663.1400 Beam-Size Iris Assembly (Non-Shutter Units) 22.9620.0194 Safety Cable Assembly 25.9661.0056...
  • Page 31 HAPTER Installation This chapter contains instructions for installation of all version of the VL1100 ERS Luminaire. It includes connecting power and data, along with instructions for powering up the luminaire for the first time and addressing it within your system.
  • Page 32 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Power and Data Cabling Requirements AC Power WARNING: Other than described herein, do not power a VL1100™ ERS Luminaire from a dimmed circuit - even in "Non-Dim" mode. Dimmer modules are not suitable sources of power because their output modifies the AC wave form.
  • Page 33 NSTALLATION OWER AND ABLING EQUIREMENTS Table 2-2: VL1100AS/VL1100AI Current vs. Voltage ** Voltage @ 60Hz Current 7.8 A 4.4 A 3.8 A ** Includes ballast power. Table 2-3: VL1100TSD/VL1100TID Current vs. Voltage *** Voltage @ 60Hz Current Table 2-4: VL1100TSD230/VL1100TID230 Current vs. Voltage *** Voltage @ 60Hz Current *** Includes lamp power.
  • Page 34 If required, please contact Vari-Lite customer service or your Authorized VARI❋LITE® Dealer for assistance. Arc Models An external arc ballast unit is included with the arc version of the VL1100 ERS Luminaire. The lamp power input cable is already connectorized for use with this unit. 04 No vemb er 2009...
  • Page 35 NSTALLATION OWER AND ABLING EQUIREMENTS Note: There is no provision for lengthening the cable. The ballast must be placed within 40 inches (1m) of the luminaire. The Lamp Power Input Cable has conductors for lamp power and ballast control. It is not compatible with VARI❋LITE® Series 300 lamp runs. VL1100 Arc Luminaire VL1100 Arc Ballast Lamp Cable...
  • Page 36 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Data Cables The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector.
  • Page 37 NSTALLATION OWER AND ABLING EQUIREMENTS Recommended Cable Types/Manufacturers These are only a few of the suitable cable types. Any quality EIA485, twisted pair, 120 ohm, shielded cable will also work. ∗ Type Pairs Jacket Temp (F) ZΩ Belden Cables 1215A IBM Type 6 Office cable 1269A...
  • Page 38 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL DMX Termination Connector A male XLR DMX termination connector is required at the last luminaire (or "far end of the line") to prevent signal reflections. Signal reflections may cancel out the signal at certain line lengths, resulting in errors. The terminator is also necessary for software downloads and running tests on multiple luminaires.
  • Page 39 NSTALLATION NSTALLATION ROCEDURES Installation Procedures Installing Lamp (Incandescent Models) In the event the lamp was packed separately during shipment, it will be necessary to install before use. WARNING: Ensure that power is removed from luminaire when installing lamp. CAUTION: Wear cotton gloves or other covering while installing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life.
  • Page 40 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Step 3. At backcap, flip two bail clamps outward (Figure 2-5). Step 4. Flip two base clamps outward away from socket. Step 5. Grip lamp by base and firmly install in socket. Step 6.
  • Page 41 NSTALLATION NSTALLATION ROCEDURES Installing Lamp (Arc Models) In the event the lamp was packed separately during shipment, it will be necessary to install before use. WARNING: Ensure that power is removed from luminaire when installing lamp. CAUTION: Wear cotton gloves or other covering while installing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life.
  • Page 42 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Step 3. Grip lamp by base and firmly install in socket. Do not touch lamp CAUTION: with bare fingers. Socket Lamp Install lamp, firmly pressing into place. Figure 2-7: Installing Arc Lamp in Socket Step 4.
  • Page 43 NSTALLATION NSTALLATION ROCEDURES Accessory Frame Holder An accessory frame holder is provided for the addition of a top hat or gel frame with silks, frosts or color correction if required. The frame holder is designed to fit a standard 8-inch gel frame or top hat. To remove and replace frame or top hat: Step 1.
  • Page 44 Many compatible truss hooks are available from different manufacturers for your particular needs. The Mega Claw Truss Hook, shown in the example illustration below, can be ordered separately from Vari-Lite (refer to “VL1100 ERS Replacement Items/Accessories” on page 12).
  • Page 45 NSTALLATION NSTALLATION ROCEDURES To hang luminaire in truss: Step 1. Lift luminaire into mounting position. Step 2. Secure in place with truss hooks. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is properly tightened and that luminaire is fully supported. Step 3.
  • Page 46 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Hanging the Ballast (Arc Models Only) The external ballast unit included with arc models will need to be installed near the luminaire. In order for the lamp cable to be connected, the ballast must be placed within 40 inches (1m). The top panel provides one mounting hole for attaching a truss hook or other mounting hardware as required.
  • Page 47 NSTALLATION NSTALLATION ROCEDURES To hang arc ballast in truss: Step 1. Lift ballast into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is properly tightened and that ballast is fully supported. Step 3.
  • Page 48 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link. Note: This maximum limit applies to the luminaire "daisy chain" only. Your system or console may require fewer luminaires on a single data link path.
  • Page 49 Power-Up and Configuration Overview First Power-Up When powering up a VL1100 ERS Luminaire for the first time, the lamp type and shutter settings must be configured. This procedure will usually happen prior to delivery. However, in the event that it has not been done or if the Main Controller Board has been replaced, it will be necessary.
  • Page 50 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Standard Power Up Procedure Use this procedure when powering up a luminaire that has already been configured. (Refer to “Power- Up and Configuration Overview” on page 31.) Note: Refer to Chapter 4: Menu System for detailed instructions on menu functions.
  • Page 51 NSTALLATION OWERING Power Up and Configuration Procedure Use this procedure when powering up a luminaire that has not been previously configured. (Refer to “Power-Up and Configuration Overview” on page 31.) Note: Refer to Chapter 4: Menu System for detailed instructions on menu functions. CAUTION: Before applying power, be sure the luminaire is hung or positioned so that the head and yoke can move freely without restriction.
  • Page 52 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Align Lamp For Maximum Beam Irradiance After a new lamp is installed in either the incandescent or arc version of the luminaire, it will be necessary to align the lamp to optimize the beam. WARNING: Backcap and adjustment screws will be HOT during lamp operation.
  • Page 53 NSTALLATION DDRESSING Addressing Program Starting Address The DMX starting address is entered using the Menu Display. This address will be retained even if the power is removed. Note: Refer to Chapter 4: Menu System for detailed instructions on menu functions. Note: Refer to your console operating instructions for specific information regarding its addressing requirements.
  • Page 54 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Notes 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 55 HAPTER Operation This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. • DMX Operation • DMX Mapping • Luminaire Timing • Updating Software 02.96 64.000 1 0 0 4 No vemb er 200 9...
  • Page 56 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL DMX Operation Channel Mapping These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. (There is only one DMX mode for this luminaire, which is Enhanced 16-bit Mode.) Table 3-1: Enhanced 16-Bit Mode - VL1100 TI/AI Models DMX Channel...
  • Page 57 : DMX O PERATION PERATION Table 3-2: Enhanced 16-Bit Mode - VL1100 TS/AS Models DMX Channel Parameter Range Dimmer * 0-255 Hi Byte Pan 0-65535 Lo Byte Pan 0-65535 Hi Byte Tilt 0-65535 Lo Byte Tilt 0-65535 Edge 0-255 Zoom 0 (small) - 255 (big) Diffusion 0 (open) - 255 (diffused)
  • Page 58 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Control Channel Functions Control channel functions allow special actions such as reset, lamp on/off and partial recalibration. These must be executed with zero time transition or with timing disabled. Discrete values must be used;...
  • Page 59 : DMX O PERATION PERATION DMX Data Display The DMX data display shows the data received for the given luminaire and does not show the entire stream of 512 bytes. It shows only the number of channels used for the given luminaire model in 16- bit enhanced mode.
  • Page 60 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL DMX Mapping Color Mixing The color mixing mechanism is a CYM subtractive color mixing system made up of a graduated color system for cyan, yellow, and magenta. Table 3-4: DMX Map For Cyan % Value DMX Value Action...
  • Page 61 : DMX M PERATION APPING Rotating Gobo Wheel Note: Gobos are sold separately. Contact your Authorized VARI❋LITE® Dealer or visit the Vari- Lite web site, www.vari-lite.com, for available gobo patterns. The function operates in two modes: INDEX Mode and ROTATE Mode. The DMX values corresponding to these modes are as follows: •...
  • Page 62 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Shutter Mechanism For units with a shutter mechanism, the shutter is comprised of four frame blades that move independently or in unison. The entire assembly operates in a smooth, time-continuous motion using stepper motors (two per frame blade and one to rotate the entire shutter mechanism).
  • Page 63 PERATION UMINAIRE IMING Luminaire Timing Timing Channel Information Timing channel control improves the timed moves of certain groups of parameters. We provide three timing channels, one for Focus (Pan and Tilt), one for color parameters and one for beam parameters. Timing channels support time values of up to six minutes.
  • Page 64 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Note: Avoid changing timing channel values in a fading cue. This can cause unexpected behavior in the luminaire as the timing channel value is updated over time. Timing channel values and the final destination of the parameters affected by the timing channel should always be sent in a zero count.
  • Page 65 PERATION UMINAIRE IMING Table 3-11: VL1100 Timing Channels Map % Value = Seconds 10.2 10.4 10.6 02.96 64.000 1 0 04 No vemb er 2009...
  • Page 66 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Table 3-11: VL1100 Timing Channels Map % Value = Seconds 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 67 PERATION UMINAIRE IMING Table 3-11: VL1100 Timing Channels Map % Value = Seconds 02.96 64.000 1 0 04 No vemb er 2009...
  • Page 68 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Table 3-11: VL1100 Timing Channels Map % Value = Seconds 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 69 PERATION UMINAIRE IMING Table 3-11: VL1100 Timing Channels Map % Value = Seconds 02.96 64.000 1 0 04 No vemb er 2009...
  • Page 70 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Table 3-11: VL1100 Timing Channels Map % Value = Seconds Follows Cue Data 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 71 PERATION PDATING OFTWARE Updating Software USB Download and Programming Luminaires You can upgrade Vari-Lite luminaire operating software using the USB Luminaire Programming Kit (Vari-Lite part number 28.8500.0054, sold separately) for desktop computers and newer laptops equipped with USB 2.0 ports. The USB Luminaire Programming Kit can be ordered directly from your Authorized VARI❋LITE®...
  • Page 72 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Lists specific versions of downloaded software (on PC) Device Connection Status and USB Downloader Controls Click to download specific software version to connected luminaire(s) Click logo to go to Vari-Lite web site (internet connection required) Download History...
  • Page 73 PERATION PDATING OFTWARE A termination connector is used in this process. Refer to page 10 for more information regarding the construction of this connector. Master luminaire containing Luminaire 1 Luminaire 2 software version to download requiring update requiring update Data Thru Data Thru Loopback Connector DMX Termination Connector...
  • Page 74 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Notes 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 75 HAPTER Menu System This chapter contains instructions for operating the luminaire using the Menu Display feature. • Menu Operation • Menu Functions • Self Tests 02.96 64.000 1 0 0 4 No vemb er 200 9...
  • Page 76 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Menu Operation What Is the Menu System? The menu system is a programmable set of commands used to configure, address, operate, and test the luminaire. The menu system is controlled at the Menu Display available at the yoke leg.
  • Page 77 YSTEM PERATION Menu Default State The menu display’s default state during normal operation is to display the address. After 10 seconds of inactivity at the display, it will change to this default state. After 5 minutes of inactivity, the menu display will switch to its off state. Menu Shortcuts A few button combinations are provided as shortcuts for frequently used menu functions.
  • Page 78 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Menu Functions Menu System Overview The following is a graphic representation of the entire menu system. Manual value Address value Tilt value Dimmer* value Blue value Setup LampType Amber value Incand Magenta value...
  • Page 79 YSTEM UNCTIONS Menu System Function Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Address DMX DMX Address XXX Address value Setup LampType Incand Shutter? Config LAMP Lamp Options Power Lamp Power ON (default) System (Arc Only) Configuration P UP Lamp Power-up State Lamp OFF Lamp Cal ON Lamp On After Calibration...
  • Page 80 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL 1st Level 2nd Level 3rd Level 4th Level 5thLevel Fixture Status Status/Error Display Scrolls error messages or displays OK Re-Cal Recalibrate Model Luminaire Model Type VL1100XX Model Type Lum Id Luminaire ID XXXXXXXX Luminaire ID Number Version Version...
  • Page 81 YSTEM UNCTIONS 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test ALL Test All Motors RUN TEST Run-Test in Progress Press [Menu] to System Test stop tests Pan/Tilt RUN TEST Run-Test in Progress Dimmer (Arc Only) RUN TEST Run-Test in Progress Blue RUN TEST Run-Test in Progress Amber...
  • Page 82 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Menu Function Definitions For easy reference, each possible menu item is listed alphabetically in the first column by its display abbreviation. The second column follows with a definition of the abbreviation and then a third column provides an explanation of its purpose and function.
  • Page 83 YSTEM UNCTIONS Display Definition Purpose Lamp Lamp Accesses lamp power up options and information (Config). Lamp OFF Lamp is Off Configures arc luminaire so that lamp will not strike upon power up. Lamp ON Lamp is On Configures arc luminaire so that lamp will strike upon power up. LampHour Lamp Hours Displays total number of lamp operating hours.
  • Page 84 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Self Tests Running Parameter Tests The luminaire is capable of running self tests by using the TEST menu functions. Note: If a DMX data stream is present on the luminaire’s DMX input connector, Self Test and Manual control is overwritten by the DMX command protocol and neither (Self Test and Manual) will operate.
  • Page 85 YSTEM ESTS Movement Disable The Movement option allows pan and tilt to be disabled so that the luminaire can be placed in any position for testing without movement occurring. In order to regain full control of the luminaire, Movement will need to be enabled after testing. Note: When using the Movement option, pan and tilt will be disabled for all the luminaires that are linked.
  • Page 86 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Notes 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 87 PPENDIX Troubleshooting and Maintenance This appendix provides instructions for troubleshooting and performing routine maintenance which may be necessary during the life of the luminaire. • Troubleshooting • Routine Maintenance WARNING: All routine maintenance procedures are to be performed with power completely removed from the luminaire.
  • Page 88 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display will cycle through any applicable error message(s) until the end of the list is reached. To review the error messages again, it will be necessary to access them using the Status function.
  • Page 89 ROUBLESHOOTING AND AINTENANCE Troubleshooting Guide If a problem is suspected, first try recalibrating the luminaire to prompt an error message. The chart below provides possible causes and remedies for various error messages and/or symptoms. CAUTION: Some troubleshooting is included for reference only. Performing remedies marked by gray areas will void product warranty.
  • Page 90 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Routine Maintenance Cleaning Optical Lenses and Gobos WARNING: Remove power from luminaire before performing maintenance. The front lens and gobos may require cleaning after extended use. Use only isopropyl alcohol, along with a soft, lint-free cloth to clean glass components.
  • Page 91 ROUBLESHOOTING AND AINTENANCE Step 7. Re-install front cover. Inside Edge - orient toward center of wheel Rotate until open end of carrier is up CAUTION: Gear Closed End Open End Gobo MUST be oriented with the mirrored side towards the luminaire’s lamp. If not oriented properly, gobo will break.
  • Page 92 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Lamp Replacement For lamp replacement procedure, refer to “Installation Procedures” on page 04 No vemb er 2009 02 .9 664.00 01 0...
  • Page 93 PPENDIX Technical Specifications Mechanical Zoom Optics Continuously variable field angle in imaging range from 19° to 36°, super zoom of field to 70° programmable over a timed range of 2 seconds to 20 minutes. Color Mixing Fully crossfading CYM color system. Diffusion Field or gobo can be continuously and smoothly diffused to wash.
  • Page 94 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Operational Power Requirements Depending on voltage, 1 to 2 Amps are supplied to Incandescent models through standard AC distribution while 3 to 9 Amps are supplied to Arc luminaires and ballast. Operational Temperature -20°...
  • Page 95 ROUBLESHOOTING AND AINTENANCE Photometric VL1100™ ERS Luminaire - Incandescent Models with 1000W Tungsten Halogen Lamp (All data taken with a seasoned light source at 20 hours of life.) FIELD ANGLE FIELD DIAMETER BEAM ANGLE BEAM DIAMETER CANDELA (degrees) (degrees) (cd) 19.0 .335 13.0...
  • Page 96 ❋ VARI LITE® - VL1100™ ERS L ’ UMINAIRE ANUAL Arc Ballast Unit (VL1100 Arc Models Only) Input Voltage Range 90V to 275V, auto-ranging. Frequency 50 Hz or 60 Hz Current Range 4.54" 2.7 A to 9.0 A* (11.5 cm) Power Factor +/- 0.97 Output...
