Werner A510002 Operation And Instruction Manual

Hybrid swivel anchor
Hide thumbs Also See for A510002:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

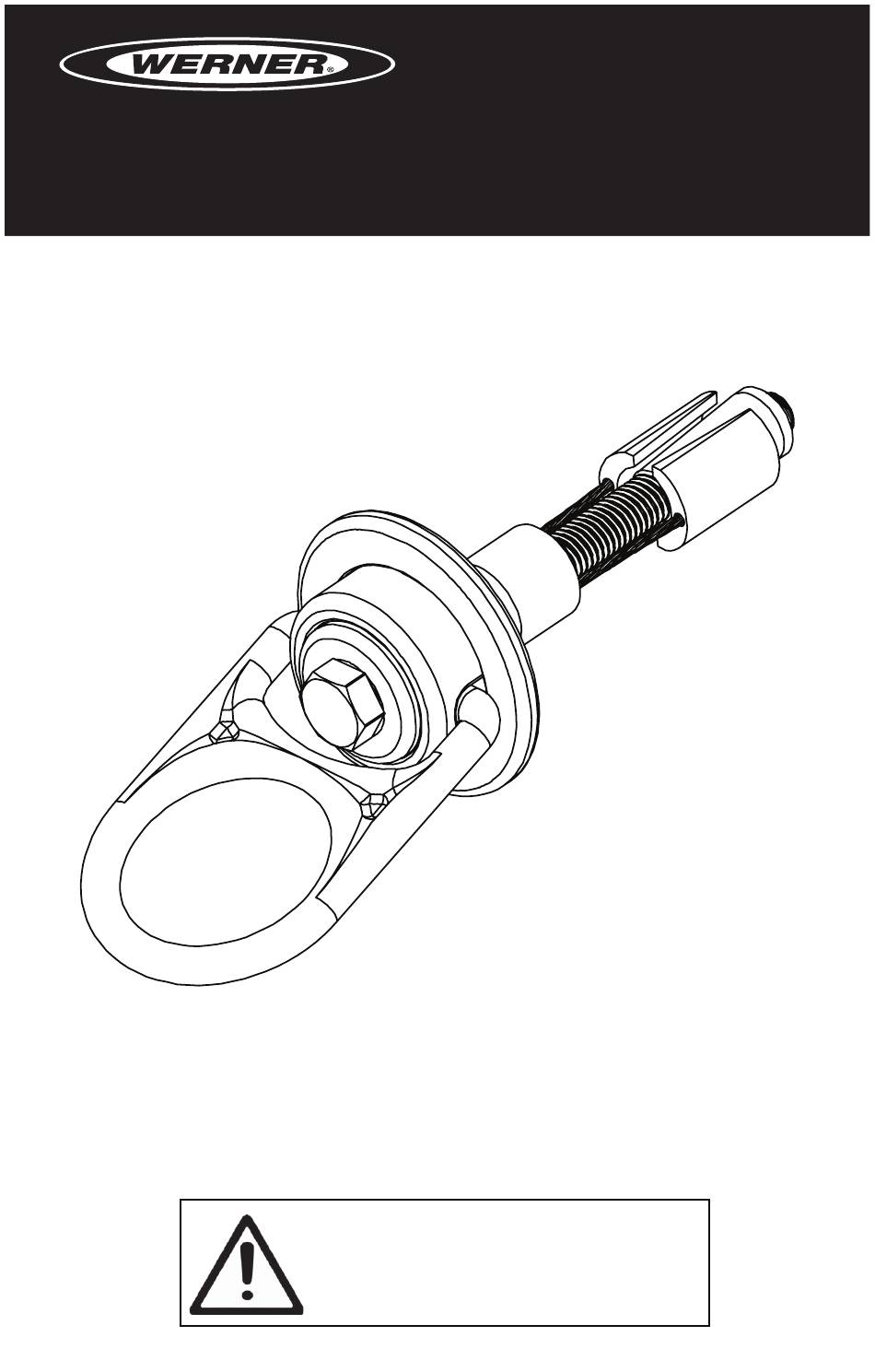

USER INSTRUCTIONS
HYBRID SWIVEL ANCHOR
Complies with ANSI Z359.18 Type A,
OSHA 1910 and 1926 requirements.
OPERATION AND INSTRUCTION MANUAL
Hybrid Swivel Anchor Model: A510002
Patent # US 8,424,638 B1
FALL PROTECTION
10,000-lbf (44kN)
WARNING:
ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
V3.2-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A510002 and is the answer not in the manual?

Questions and answers

Related Manuals for Werner A510002

Summary of Contents for Werner A510002

  • Page 1 Complies with ANSI Z359.18 Type A, OSHA 1910 and 1926 requirements. OPERATION AND INSTRUCTION MANUAL 10,000-lbf (44kN) Hybrid Swivel Anchor Model: A510002 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.

  • Page 2: Use Instructions

    PURPOSE The A510002 is an anchorage connector designed to function as an interface between the anchorage and a fall arrest, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector” in this manual include, and apply to, the A510002.

  • Page 3: Component Materials

    Minimum Breaking Strength (MBS): 10,000-lbf (44kN) Maximum Capacity: See “Use Limitations” Weight: 2.0-lbs (949g) Regulatory Compliance ANSI Z359.18 Type A, ANSI Z359.7-2019 OSHA 1910.140 , OSHA 1926.502 6.25 inches (15.88cm) 2.25 inches ø (57.15mm) 5.5 inches Compression Sleeve (139.7mm) Bushing Bolt Cone Cable...
  • Page 4 180° 8 inches ø (203.2mm) 360° LOADING CONDITIONS DIAGRAM LOAD LOAD LOAD LOAD ACCEPTABLE ACCEPTABLE ACCEPTABLE IMPROPER DRILLING : 1. Use a hammer drill (SDS), drill a 1 inch (2.54 cm) diameter hole at least 5 inches (12.7 cm) deep. The drilled hole must be straight and perpendicular to the surface.

  • Page 5: Installation

    Check for kinked or frayed cables. Look for signs of wear on spoons. Swivel should move freely. INSPECT BEFORE USE Check for deformation of cone. INSTALLATION: 2. Pull up on bolt while holding swivel 1. Before installing make sure cone is flush with the concrete.
  • Page 6 REMOVAL: 1. Loosen bolt so that at least .75 inch (1.9cm) of threads are exposed. Unscrew min of .75 inch (1.9cm) .75 inch (1.9cm) Step 1. 2. Use a hammer to tap down bolt and disengage cone from spoons. 3. Pull anchor from hole. Step 2.
  • Page 7 (ANCHOR POINT) WORK SURFACE *The structure the anchorage is attached to must be able to *The user shall be equipped with a means of support 10,000-lbf limiting the maximum dynamic forces exerted (44kN) and installed on the user during the arrest of a fall to a under the supervision maximum of 1800-lbf (8 kN).

  • Page 8: Maintenance, Cleaning And Storage

    * If inspection reveals any damage that could affect the strength or operation of the device, inadequate maintenance, or an unsafe condition, proper disposal is required. The anchorage connector must be tagged unusable and then properly discarded. WernerCo 93 Werner Road Greenville, PA 16125 1(888) 523-3371 / www.wernerco.com P/N 200417-01 REV E 4/21...
