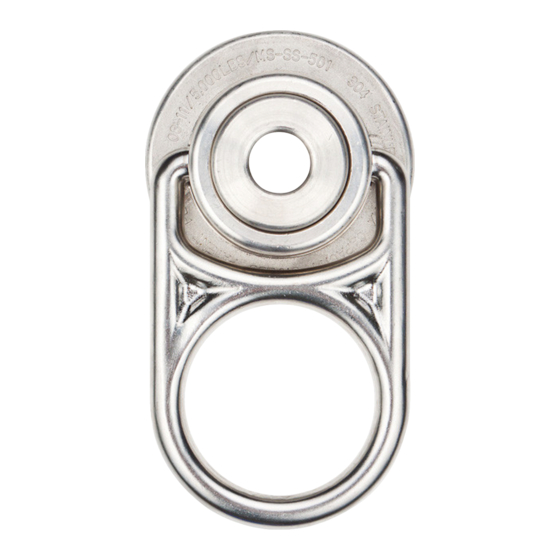

Stainless steel 5k swivel anchor

Advertisement

Quick Links

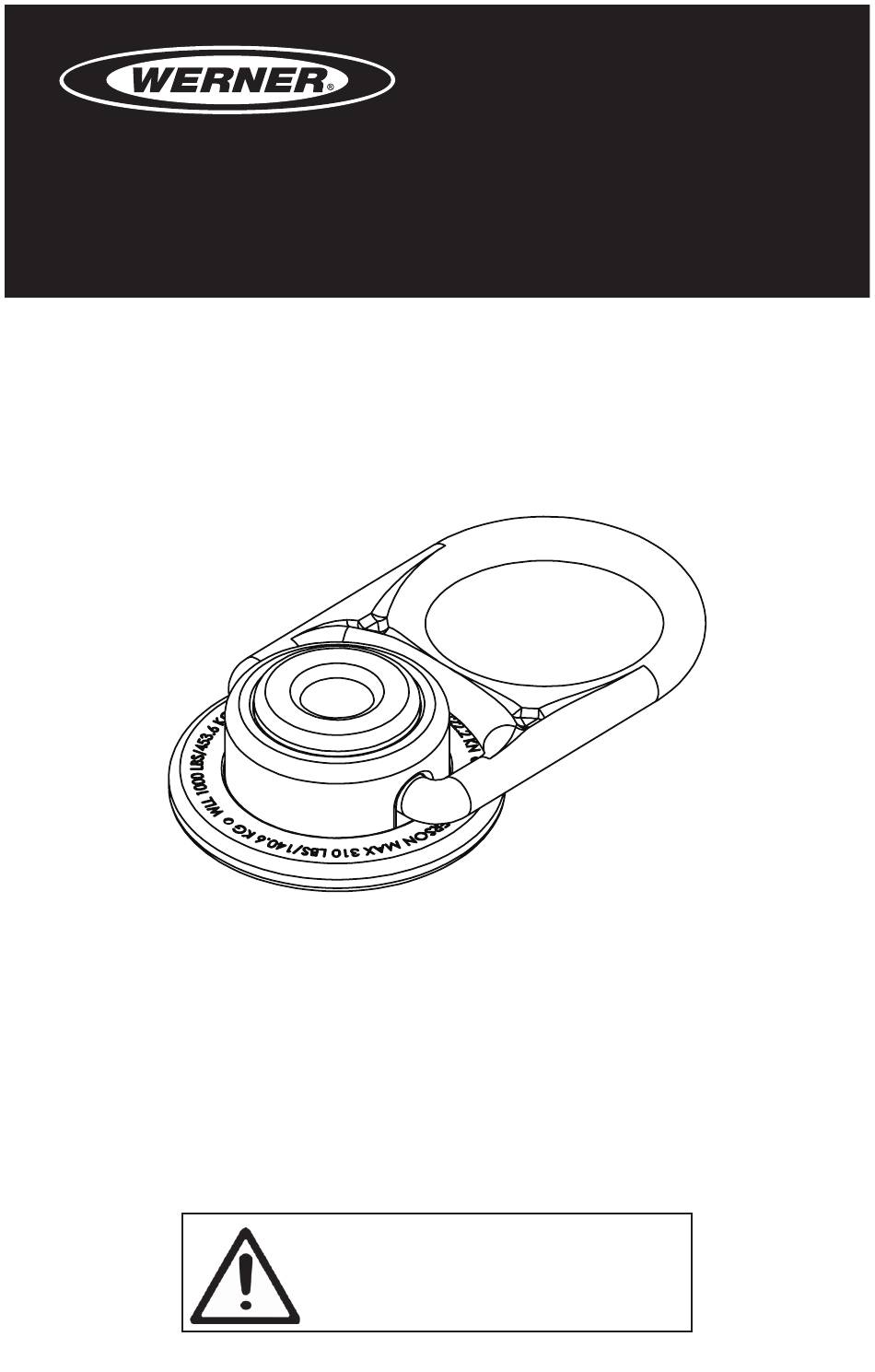

USER INSTRUCTIONS
STAINLESS STEEL 5K SWIVEL
Complies with ANSI Z359.18(17),
OSHA 29 CFR 1910 and 1926 regulations.
OPERATION AND INSTRUCTION MANUAL
Models: A570000, A570001, & A570002
Additional Models: A570003, A570004,
Page 1
Swivel Anchor
A570005, & A570006
WARNING:
ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
FALL PROTECTION
V4.4-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A570000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Werner A570000

  • Page 1 STAINLESS STEEL 5K SWIVEL Complies with ANSI Z359.18(17), OSHA 29 CFR 1910 and 1926 regulations. OPERATION AND INSTRUCTION MANUAL Swivel Anchor Models: A570000, A570001, & A570002 Additional Models: A570003, A570004, A570005, & A570006 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS.
  • Page 2 User Instructions must always be available to the user and are not to be removed except by the user of this equipment. For proper use, see supervisor, User Instructions, or contact the manufacturer. Werner Co. can supply additional information upon request.
  • Page 3 LABEL LOCATIONS 180° 2.25 inches ø 8 inches ø (57.15mm) (203.2mm) 5.5 inches (139.7mm) 360° 3 inches 1 inch (76.2 mm) (25.4mm) Minimum Breaking Strength (MBS): 5,000-lbf (22kN) Weight: 1.2-lbs (544.3g) Materials: Stainless Steel Regulatory Compliance: Meets or exceeds ANSI Z359.18-2017 Type A, ANSI Z359.7-2019, OSHA 29 CFR 1926.502, OSHA 29 CFR 1910.140 LOADING CONDITIONS DIAGRAM LOAD...
  • Page 4 CONCRETE MOUNTING MODELS: A570002, A570004 & A570005 - Use a proper drill & bit for concrete (SDS drill bit). - Drill a 0.875 inch (22 mm) hole no less than 3 to 3.5 inches (76mm-89mm) deep 9 inches(229mm) away from any edge. - Hole must be straight &...
  • Page 5 STEEL MOUNTING MODELS: A570001 & A570003 5/8 inch-11 Torque Range: Lock Nut 75 ft-lbs * Use tapered washer with I-beams (100Nm) that have tapered flanges. 5/8 inch Flat Washer drill 5/8 inch (16mm)Ø 5/8 inch-11x4 inch Hex Bolt * .25 inch (6mm) min * For steel applications, a grade-5, 8 (or equivalent) bolt no shorter than 4 inches (100mm) with a locking nut and washer...
  • Page 6 *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 1800-lbf (8kN). (ANCHOR POINT) WORK SURFACE *The structure the anchorage is attached to must be able to support 5,000-lbf (22kN) and installed...
  • Page 7 KIT CONTENTS PART NUMBER A570000 (Swivel) A570003 (Steel Mounting Hardware Kit) A570001 (Swivel with Steel Mounting kit) A570004 (Concrete Hardware Kit) A570002 (Swivel with Concrete Mounting Kit) A570006 (Weld-on Mounting Kit) A570005 (Concrete Anchor Tool) For more information: Page 7...
  • Page 8 *If inspection reveals any damage that could affect the strength or operation of this device, inadequate maintenence, or an unsafe condition, then proper disposal is required. The anchorage connector must be rendered unusable and then properly discarded. Werner Co. 93 Werner Road Greenville, PA 16125 1(724) 588-2000 1(888) 523-3371 toll free...

This manual is also suitable for:

A570001A570002A570003A570004A570005A570006
