OPERATION AND INSTRUCTION MANUAL

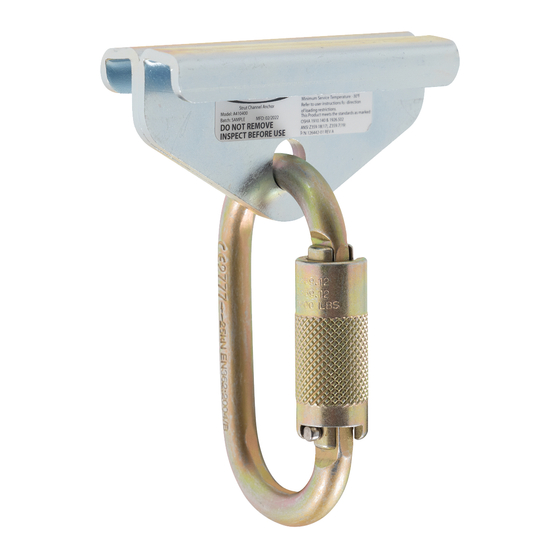

Strut Channel Anchor
Model: A410400
WARNING:
ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Patent # ?
V0.1-A
Advertisement
Table of Contents
Related Manuals for Werner A410400
Summary of Contents for Werner A410400
- Page 1 OPERATION AND INSTRUCTION MANUAL Strut Channel Anchor Model: A410400 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
- Page 2 PURPOSE The A410400 is an anchorage connector designed to function as an interface between the anchorage and a fall arrest, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector” in this manual include, and apply to, the A410400.
- Page 3 LABEL LOCATIONS TERMS AND DIMENSIONS 1.38 inches 4 inches inches 0.46 inch Attachment point Minimum Breaking Strength (MBS): 5,000-lbs (22kN) Max Capacity: One person Weight: 0.62 lbs. (.28 kg) Materials: Zinc-Plated Steel Regulatory Compliance: OSHA 1910.140, OSHA 1926.502, ANSI Z359.18 - Type A, ANSI Z359.7...
- Page 4 LOADING CONDITIONS DIAGRAM 15º MAX 15º MAX ANCHORAGE REQUIREMENTS 1-5/8 inches 7/8 inch • The Strut Channel Anchor shall only be installed in standard 1-5/8 inch strut of 12 guage or thicker construction and located overhead. • Anchorage must be capable of supporting 5,000-lbs (22 kN) or be designed, installed, used under supervision of a qualified person, and as part of a complete personal fall protection system that maintains a safety factor of at least two.
- Page 5 INSTALLATION INSTRUCTIONS 1. Choose location in Strut Channel. qualified person must determine if a specific installation location will meet all ANCHORAGE REQUIREMENTS. Insert the two pieces of the anchorage connector into the strut channel. 2. Hook both sides of the anchorage connector onto the strut channel.
- Page 6 *Only use connecting subsystems that limit the maximum arrest force to less that 1,800 lbs (8kN). In the EU these forces must be limited to 1350-lbs (6kN). (ANCHOR POINT) WORK SURFACE WORK SURFACE *Any equipment that has been subjected to the forces of arresting a fall, or that has a deployed load indicator, must be removed from service.
- Page 7 MAINTENANCE, CLEANING AND STORAGE Cleaning periodically will prolong the life and proper functioning of the product. Frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a clean, dry cloth. Do not use any corrosive chemicals that could damage the product.
- Page 8 Werner Co. 555 Pierce Road Suite 300 Itasca, IL 60143 1(888) 523-3371 / www.wernerco.com P/N 126444-01 REV A 11/21...
