13/2/25, 18:29
Ajax ManualCallPoint Jeweller — Wireless fire button

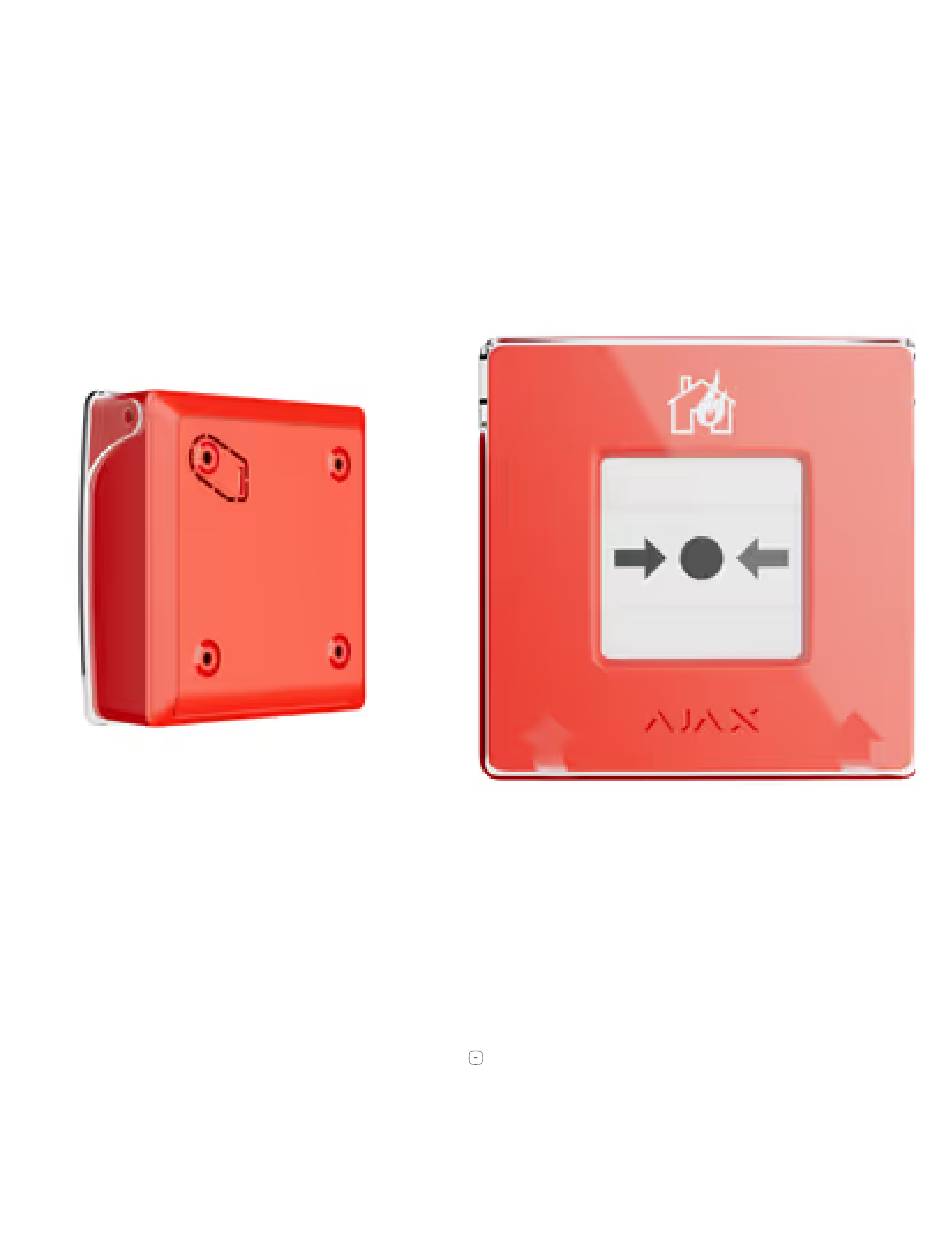

ManualCallPoint (Red) Jeweller
Wireless resettable button for manual fire alarm activation featuring programmable scenarios. Red-
colored version.
Device compatibility
Check
https://ajax.systems/products/specs/manualcallpoint-red-jeweller/
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ManualCallPoint Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX ManualCallPoint Jeweller

Summary of Contents for AJAX ManualCallPoint Jeweller

  • Page 1 13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button ManualCallPoint (Red) Jeweller Wireless resettable button for manual fire alarm activation featuring programmable scenarios. Red- colored version. Device compatibility Check https://ajax.systems/products/specs/manualcallpoint-red-jeweller/...
  • Page 2 13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Communication  Jeweller communication technology Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps.

  • Page 3: Key Features

    13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Encrypted communication All stored and transmitted data is protected by block encryption featuring a dynamic key. Frequency hopping To prevent radio interference and jamming. Learn more Key features Resettable frangible element...
  • Page 4 13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button fire alarm malfunctions The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected. Interconnected fire detectors alarms by pressing the button By pressing the frangible element, fire detectors in the system trigger the built- in sirens.
  • Page 5 13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Button reset after pressing To reset the button, insert the special tool into the corresponding hole. Hole in the enclosure to hang on a ring from a keychain The person responsible for fire safety can carry the special tool on their keychain.

  • Page 6: Sabotage Protection

    13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Sabotage protection Tamper alarm Notifies on attempts to detach the button from the surface or remove it from the mounting panel. Learn more Protection against spoofing via device authentication Communication loss detection after 36 s The detection time depends on the Jeweller or Jeweller/Fibra settings.

  • Page 7: Complete Set

    13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Dimensions 102 × 104 × 39 mm Weight 214 g Operating temperature range from 0 °C to +50 °C Operating humidity up to 80% Colors Complete set ManualCallPoint (Red) Jeweller SmartBracket mounting panel...
  • Page 8 13/2/25, 18:29 Ajax ManualCallPoint Jeweller — Wireless fire button Special tool (key) 2 × CR123A battery (pre-installed) Installation kit Quick start guide https://ajax.systems/products/specs/manualcallpoint-red-jeweller/...
