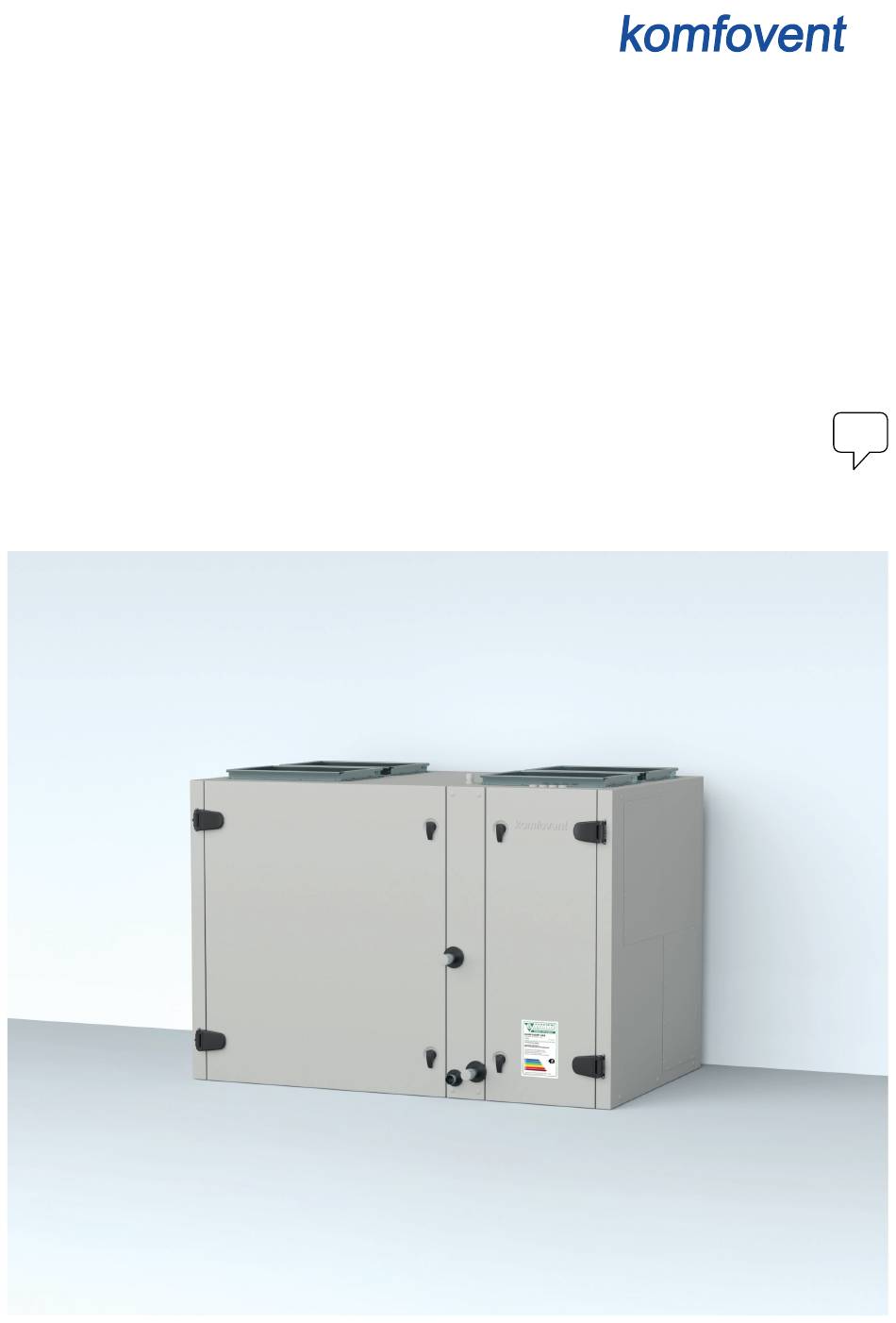

INSTALLATION MANUAL
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the VERSO STANDARD and is the answer not in the manual?

Questions and answers

Related Manuals for Komfovent VERSO STANDARD

Summary of Contents for Komfovent VERSO STANDARD

  • Page 1 VERSO STANDARD INSTALLATION MANUAL...
  • Page 2 8.1. Control panel C5.1 ................................................ 41 8.2. Starting the Unit With a Computer ........................................43 8.3. Quick Inspection ................................................45 APENDIX NO.1. WARRANTY INFORMATION ......................................46 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 3 1.2.1. Unit types by heat recovery type All Verso Standard air handling units are divided into 3 groups according to the type of recuperator (heat exchanger) used: Verso R - air handling units with rotary heat exchangers. Rotating wheel (rotor) of a rotary heat exchanger collects heat or cold from the indoor air and transfers it to the fresh supply air.
  • Page 4 Horizontal unit Vertical unit Flat unit Fig. 1. Classification of units by duct connection Fig. 2. Relocation of duct connections of the universal units UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 5 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire Depends on your order. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 6 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 7 Left inspection side L1 Verso CF 1000 UH - 1300 UH - 1700 UH Right Inspection side R1 Left inspection side L1 2 11 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 8 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 9 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 10 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 11 Verso R 5000 V HW/HCW/DX Right Inspection side R1 Left inspection side L1 Verso R 5000 V HE Right Inspection side R1 Left inspection side L1 7 11 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 12 Left inspection side L1 Verso CF 1000 UV - 1300 UV - 1700 UV Right Inspection side R1 Left inspection side L1 2 11 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 13 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 14 9 – air bypass valve 10 – rotary heat exchanger 11 – C5 controller main board * Depending on the order. 12 – Lead-in wire UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 15 Verso R 2000 F Right Inspection side R1 Left inspection side L1 Verso R 3000 F Right Inspection side R1 Left inspection side L1 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 16 Verso CF 2500 F Right Inspection side R1 Left inspection side L1 Verso CF 3000 F Right Inspection side R1 Left inspection side L1 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 17 Do not attach lifting equipment directly to the mounting frame or unit’s legs, as parts of it may bend and the load may fall. Fig. 6. Transport by crane UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 18 3.1. Requirements for Mounting Location and Installation Base Verso Standard air handling units are designed for ventilation of medium or large commercial or industrial premises (e.g., stores, offices, hotels, etc.) where standard air temperature and humidity is maintained. These units are not intended for transporting solid particles within air flows.
  • Page 19 Verso CF flat units with counterflow heat exchanger must be hung with a slope 15–20 mm on the drainage side to facilitate the discharge of condensate from the unit. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 20 Verso CF 2500 F 2034 52,5 Verso CF 3000 F 2034 49,5 1086 1179 772,5 772,5 Verso R 1000 FSA 1086 Verso R 1500 F UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 21 1500 7000 V 1020 1505 Verso CF 1000 U/H/V 1300 U/H/V 1700 U/H/V 2300 U/H/V 3500 U/H/V 1150 5000 V 1450 5000 H 1410 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 22 ~ h+100 Fig 10. Installation of the rails for sliding doors UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 23 (e.g., near the fans or in smaller units), such sections can be easier tightened by using factory-fitted external tightening elements, which you will find at the top or back of the unit. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 24 3. Adhesive gasket 4. Screw M8 5. Washer 6. Supply air temperature sensor connection Fig. 13. Verso R 1000 FSA connection and sealing of unit sections UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 25 Circular air ducts are fitted to the unit with self tapping screws. Rectangular ducts are fitted using flange connections. Different air flow duct positions are marked on the sticker located on the AHU: – outdoor air – supply air – extract air – exhaust air UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 26 350 × 1100 350 × 1100 350 × 1100 5000 H Rectangular 1100 × 400 1100 × 400 1100 × 400 1100 × 400 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 27 In order to additionally protect the water heater from freezing, you may also use a capillary thermostat (see section “Electrical installation”) that should be mounted on the surface of the heater. It is recommended to use PPU made by Komfovent. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 28 Condensate collection location must be easily accessible for cleaning and disinfection. Fig. 18. Condensate drain connection to sewer system UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 29 3.7. Outdoor Units Verso Standard air handling units are not suitable to install in outdoor areas without additional modification. Units intended be installed outdoor or legs, should be fixed to the base frame and air dampers must be installed on to the duct connections. AHU must be protected from the weather influence by installing dedicated roof and hoods.
  • Page 30 1250 327,5 322,5 327,5 322,5 (506, 1315, 506) (L1,L2) – when the device from the sections. (L1,L2) – when the device from the sections. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 31 Right R1 1400 1391/1340 (500, 1315, 500) 5000 V 2315 Left L1 1400 1391/1340 (500, 1315, 500) (L1,L2) – when the device from the sections. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 32 Width, B Length, L Height, H Verso R Right R1 1050 3000 2379 2380 302,5 302,5 1000 FSA Left L1 1050 3000 302,5 302,5 UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 33 Fig. 20. C5 controller main board 1 – control panel connection, 2 – Intranet or Internet connection, 3 – inner connections of components, 4 – terminals for external components UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 34 B5 (9–10) – when a water heater is installed, this terminal is used for connecting a return water temperature sensor (NTC 10kΩ) which protects against freezing. Fig. 22. Return water temperature sensor UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 35 5 min. delay. DX3 output is used for switching DX devices between cooling and heating modes. If the DX device was not predefined in the controller software, these outputs will be inactive. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 36 Control panel is supplied with a 10 m cable. If this cable is too short, you can replace it with a 4 × 0.22 mm cable, up to 150 m long. White LIN B Green Yellow LIN A +24V 4 x 0,22 mm 2 < 150 m Fig. 26. Control panel wiring diagram UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 37 (fans, valves, rotor wheel). If necessary, use special ties to attach the wires to the unit housing. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 38 Internet. In case of a computer, the unit is controlled via a web browser, and in case of a smart phone - via the Komfovent app. Use CAT5 type cable to connect your AHU to the computer network (RJ45 connection; see Fig. 20). The total cable length between the unit and the network router must not exceed 100 metres.
  • Page 39 7. FILTERS Air filters are intended for removing dust, bacteria and other fine particles from the supplied and extracted air. Most Verso Standard air handling units are fitted with compact filters or pocket filters in larger units. Filters are made of synthetic fabric and can have different filtra- tion classes , i.e., intended for removing particles of different sizes.
  • Page 40 In order to replace the bag filters, they must be released by pulling the handles of the clamping mechanism at the top and bottom of the filter (see Annex 1 “Filter replacement” of Verso Standard user manual). After inserting the bag filters, don’t forget to push the clamping mechanism properly to press the filters tightly to the designated gaskets.
  • Page 41 16:30 21,9 °C 21,3 °C Temperature ECONOMY 1 Fig. 34. Control panel Sold separately. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 42 To change the ventilation mode settings: select a desired mode and set a desired air volume or temperature with the arrows. To turn of the AHU and return to a home screen: UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 43 26.5 °C 100% AHU control ĮOn/Off Operation mode Economy2 Active functions Alarm status No alarms If the password was changed, use the changed password. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 44 3. Enter desired air flow and temperature in the selected mode settings. 4. Press “Save” button at the bottom of the screen. You can stop the unit by pressing ON/OFF button in the “Overview” window. UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 45 The condensate easily flows from the unit and the drainage piping is watertight CF heat exchanger calibration performed (only in CF units) Other comments: Installer Company Tel. No. Date Signature UAB KOMFOVENT we reserve the right to make changes without prior notice Verso Standard_ installation manual_25-06...
  • Page 46 Dear Customer, KOMFOVENT thanks you for your choice. We are pleased that you have chosen us and will strive to ensure you are satisfied with your purchased product. To avoid misunderstandings, we kindly ask you to read the installation and operating instructions of the product carefully.
  • Page 47 KOMFOVENT is not responsible for direct or indirect damage caused by KOMFOVENT products to people, pets, or property if the cause of such damage is failure to comply with the unit’s usage and installation rules and conditions, intentional or negligent ac- tions of users or third parties.
  • Page 48 SERVICE AND SUPPORT PARTNERS LITHUANIA J. PICHLER Gesellschaft m. b. H. www.pichlerluft.at UAB KOMFOVENT Phone: +370 5 200 8000 Ventilair group www.ventilairgroup.com service@komfovent.com ACB Airconditioning www.acbairco.be www.komfovent.com REKUVENT s.r.o. www.rekuvent.cz FINLAND Komfovent Oy WESCO AG www.wesco.ch Muuntotie 1 C1 FI-01 510 Vantaa, Finland SUDCLIMATAIR SA www.sudclimatair.ch...
