OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL

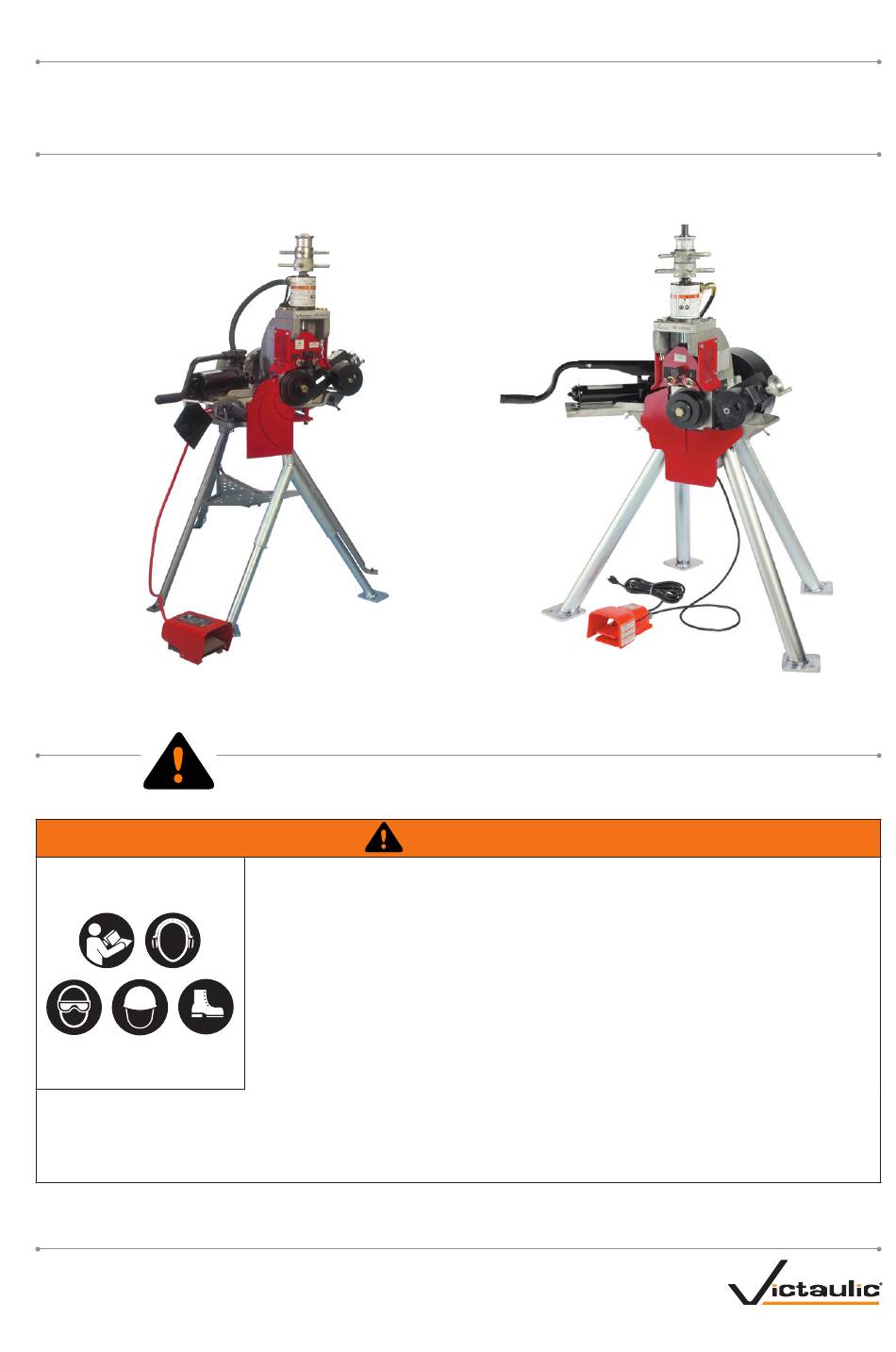

VE416FS and VE416FSD
WARNING
If you need additional copies of any literature, or if you have questions concerning the safe
and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031,
Phone: 1-800-PICK VIC, E-Mail: pickvic@victaulic.com.
REV_D
WARNING
Failure to follow instructions and warnings could result in death or
serious personal injury, property damage, and product damage.
• Before operating or servicing any pipe preparation tools, read all
instructions in this manual and all warning labels on the tool.
• Wear safety glasses, hardhat, foot protection, and hearing protection
while working around this tool.
• Save this operating and maintenance manual in a place accessible to
all operators of the tool.
Original Instructions
TM-VE416FS/FSD
TM-VE416FS/FSD
