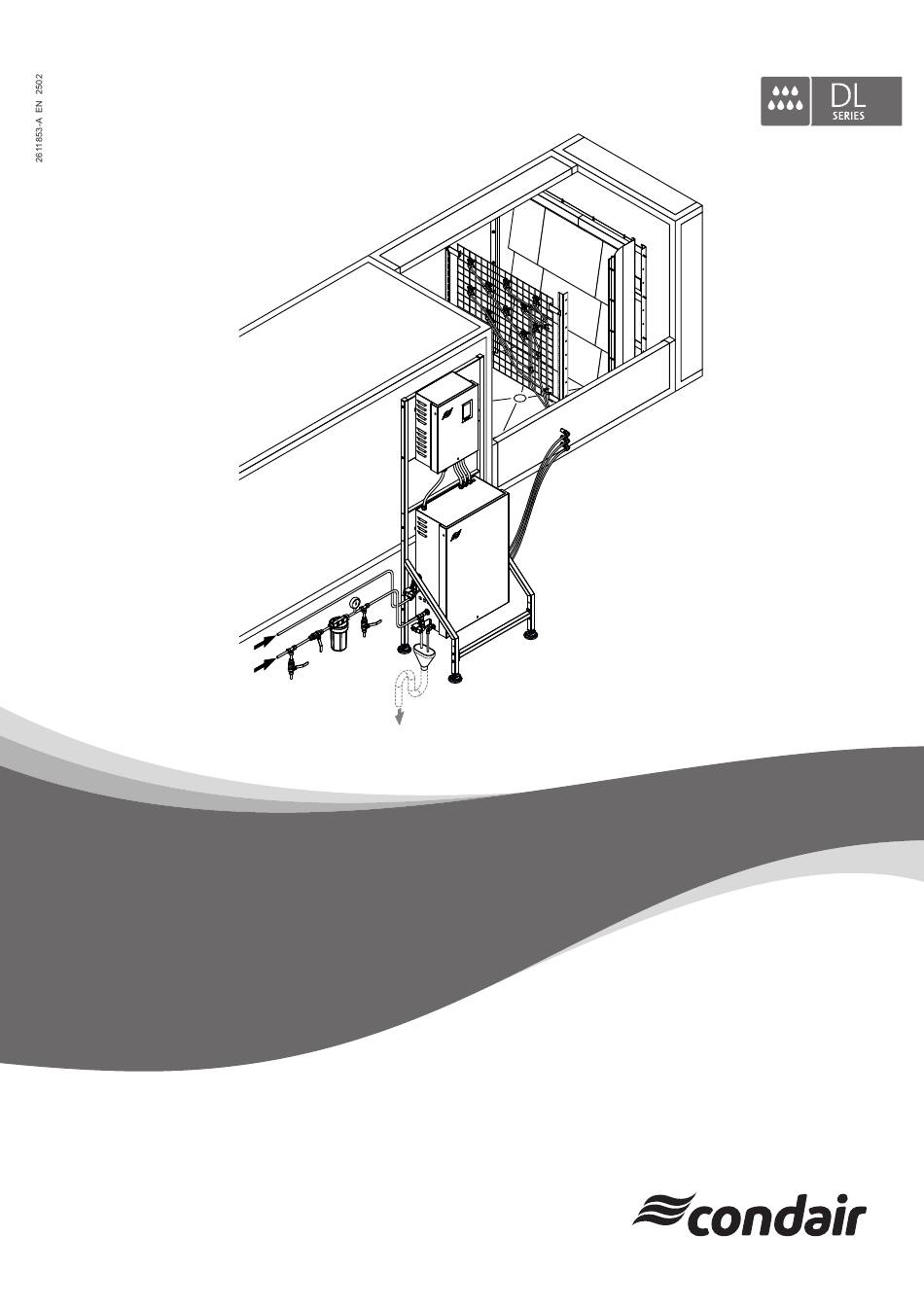

PLANNING MANUAL
Adiabatic air humidification system
Condair DL II
Humidification, Dehumidification
and Evaporative Cooling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Condair DL Series

Summary of Contents for Condair DL Series

  • Page 1 PLANNING MANUAL Adiabatic air humidification system Condair DL II Humidification, Dehumidification and Evaporative Cooling...
  • Page 2 Condair Group AG, except to the extent required for installation or maintenance of recipient's equipment. Liability Notice Condair Group AG does not accept any liability due to incorrect installation or operation of the equipment or due to the use of parts/components/equipment that are not authorised by Condair Group AG. Copyright Notice ©...

  • Page 3: Table Of Contents

    Contents Introduction Notes on the Planning Manual System Overview DL Series Introduction System versions DL System Components Overview Humidification unit Functional Description DL Unit Properties and Clearances Dimensions System Weights Electrical Requirements Water Requirements Required Clearances Available options Design Requirements...

  • Page 4: Introduction

    Overview of the Condair DL and available options – Notes on design requirements – Notes on installation requirements (duct, positioning, water quality, etc.) If you have questions after reading this documentation, please contact your Condair representative. They will be glad to assist you. Introduction 2611853-A EN 2502...

  • Page 5: System Overview

    System Overview DL Series Introduction The DL Series hybrid humidifier is based exclusively on the advantages of the two humidification principles of atomization and evaporation. The humidifying water is atomized by stainless steel atomizing nozzles at low pressure. The atomizing nozzles have an adjustable spray output and are optimally distributed over the entire cross-section of the device.

  • Page 6: Dl System Components

    DL System Components The Condair DL System is made up of 3 main components shown in Fig. – Control unit (1) and Central unit (2) – Nozzle System (3) – Post Evaporative Unit with Ceramic Media (4) Humidity sensor * /...

  • Page 7: Overview Humidification Unit

    Support frame post-evaporation unit Spray nozzles Ceramic plates Lateral sealing plates Rubber sealing duct floor Upper sealing plates Wall feed throughs spray circuits Fig. 2: Overview humidification unit Functional Description See operation manual 2603655: https://www.condair.com/humidifier-humidifiers/dl-series-adiabatic-evaporative-humidifier 2611853-A EN 2502 System Overview...

  • Page 8: Dl Unit Properties And Clearances

    DL Unit Properties and Clearances Dimensions Dimensions AHU/duct (Min-Max) Installation length "L" 23" - 36" (600 - 900 mm) Width "W" 18" - 330" (450 - 8400 mm) Height "H" 18" - 157" (450 - 4000 mm) Larger installation length available as special Installation section for nozzle unit and post-evaporation unit Fig.

  • Page 9: System Weights

    " ( 6 7 " i n . Dimensions (HxWxD) 31.50" x 20.87" x 11.22" " Central unit (1) (800 x 530 x 285 mm) i n . 19.09" x 13.58" x 8.54" Control unit (2) (485 x 345 x 217 mm) Complete Rack incl.

  • Page 10: Electrical Requirements

    Inlet pressure at max capacity Min. 44 psi (3 bar) Inlet temperature Max 68 °F (20 °C) Additives None (unless approved by Condair) Germ count Max. 100 cfu/ml at inlet For full requirements reference: https://www.condair.com/m/0/21-656-water-treatment-guide-3.pdf DL Unit Properties and Clearances...

  • Page 11: Required Clearances

    20" (min. 500) 4" Heater (100) Slope min. 2° to center drain * Larger distance according to prior agreement with Condair possible 36" 900 * Top view min. 20" (min. 500) min. 16" 13.5" Inspection door between the nozzle grid and the Inspection door after (min.
  • Page 12 Inspection door before nozzle grid Side view min. 20" (min. 500) 4" Heater (100) Slope min. 2° to center drain 23" - 36" 600 - 900 Top view min. 20" (min. 500) Inspection door before the min. 16" 13.5" nozzle grid (mandatory) Inspection door after (min.

  • Page 13: Available Options

    Available options Condair DL Type A Type B Silicone Free Produced with silicone free components. The sterile filter with automatic self monitoring is installed upstream of the booster pump. Provides Sterile filter (0.45 µm) additional hygiene safety. Please notice filter replace- ment interval according to the instructions.

  • Page 14: Design Requirements

    Design Requirements The following parameters will be needed when sizing and selecting your Condair DL humidification system: Item # Required Parameter Why is this needed? Air volume Required for humidification capacity calculation. Used to calculate duct velocity and determine if droplet sepa- rator is required: No droplet separator required up to 492 ft/min (2.5 m/s)

  • Page 15: Installation Requirements

    Installation Requirements AHU/Duct Requirements Installation section for nozzle unit and post-evaporation unit (greyed out space) AHU/duct light, waterproof, made of non-corrosive material Waterproof inspection door with safety locks and inspec- tion window with cover When using grating floors above the drain pan, ensure that the rubber seal reaches the bottom of the pan and seals the drain pan correctly...
  • Page 16 Item Name Description Drain Pan The Condair DL must be installed in a section of AHU/duct contain- ing a waterproof stainless steel drain pan. Drain pan must slope a min 2° to center drain Drains before and after the post-evaporation unit are required.
  • Page 17 Inspection door Sufficiently large waterproof inspection door with coverable inspec- tion window must be available in the AHU/duct for installation, control and maintenance purposes. An inspection door directly before the nozzle grid or an inspection door between the nozzle grid and the post-evaporation unit must be provided in the AHU/duct.

  • Page 18: Requirements For Positioning Of The Central And Control Units

    Avoid installation where there is chance of unit freezing, this can cause damage to the system. Heat treating of water lines going to the Condair DL is not permitted for hygiene reasons. The length of the spray circuit lines between central unit and housing feed throughs of the duct are as short as possible (max.

  • Page 19: Special Installations

    Lower Building Level It is possible to install the central and Using the external valve block option, control unit of the Condair DL on a so long as the pressure to the nozzles lower level of the building than the will be sufficient.

  • Page 20: System Selection Chart

    System Selection Chart Model Selection Type A Type B Input inlet pressure PSI Selelct staging control, silicone free model, nozzle grid connection side, service access, hose length Software selects System (Width, Input section length and drain pan depth Height and Droplet Seperator) External valve Enter distance from central unit...

  • Page 21: Appendix

    Appendix Appendix A – Correct AHU/Duct Layout Minimum free space of 20" (500 mm) before humidification Cross section of the installa- unit section maintained tion section of the nozzle unit and the post-evaporation unit (greyed out space) free of ob- stacles (uniform cross section) Waterproof AHU/duct light made of non-corrosive material...

  • Page 22: Appendix B - Layout Faults Of Ahu/Duct Section For Dl Humidification Units

    Appendix B – Layout Faults of AHU/Duct Section for DL Humidification Units Fig. 11: Layout Faults of AHU/Duct Section for DL Humidification Units Obstacles in the cross section of the installation sections of the humidification unit. Nozzle unit and the post-evaporation unit cannot be mounted. Missing AHU/duct light.

  • Page 23: Appendix C - Images Of Layout Faults Of Ahu/Duct

    Appendix C – Images of Layout Faults of AHU/Duct Non-permissible constrictions of the AHU/duct before and after the Condair DL humidification units Fig. 12: Non-permissible constrictions of the AHU/duct before and after the Condair DL humidification units (side views) 2611853-A EN 2502...
  • Page 24 Fig. 13: Non-permissible constrictions of the AHU/duct before and after the Condair DL humidification units (top views) Non-permissible installation of the Condair DL humidification unit in vertical AHU/ducts Fig. 14: Non-permissible installation of the Condair DL humidification unit in vertical AHU/ducts...

  • Page 25: Appendix D - Wrong Nozzle Grid Connection Side

    Appendix D – Wrong nozzle grid connection side Fig. 15: Wrong nozzle grid connection side Note: If wrong nozzle grid connection side is selected the spray lines may not be guided to the wall feed throughs with constant downslope. The spray lines may sag and may be drained by gravity. Standing water remains in the spray lines.
  • Page 26 Fig. 16: Spray circuit lines from nozzle grid connections to wall feed troughs are sagging Problem: Spray circuit lines between nozzle grid connections and wall feed throughs are sagging. Spray circuit lines cannot completely drained by gravity. Standing water remains in the spray circuit lines. Remedy: Install spray circuit lines between nozzle grid connections and wall feed throughs constant downslope.

  • Page 27: Appendix E - Images Of Proper Installations

    Appendix E – Images of proper installations Heater min. 32" (min 800 mm) Lowest connectors of nozzle grid must be at a higher level than the wall feed throughs Check how the pipes of the heater are routed. Could be Wall feed throughs must be at a clash with the higher level than the spray circuit...
  • Page 28 min. 20 " (min 500 mm) Lowest connectors of nozzle grid must be at a higher level than the wall feed throughs Wall feed throughs must be at higher level than the spray circuit connectors on the central unit Spray circuit lines must have Heater constant downslope of min 2% from the wall feed throughs to...

  • Page 29: Appendix F - Common Positioning Mistakes

    Appendix F – Common Positioning Mistakes Position of spray circuit connectors Problem: Spray circuit lines sag under the door. Spray circuit lines are not completely drained by gravity. Standing water remains in the spray circuit lines. Remedy: Lower central unit in rack one position (-4" (-100 mm)) down that the spray circuit connections are below the lowest point of the spray line routing to create a constant downslope.
  • Page 30 Position of spray circuit connectors Problem: Spray circuit connections of central unit are above wall feed throughs. Spray lines are not completely drained by gravity. Standing water remains in the spray lines. Remedy: Position wall feed throughs further up (but still below lowest connector of nozzle grid) or posi- tion the central unit further down to create a gradient (according Fig.
  • Page 31 Remedy: Modify central unit from spray circuit connection side left to the spray circuit connection side right (according Fig. 17 Fig. 18). Modification is described in the Condair DL installation manual. Fig. 21: Rack Position Fault Example 3 2611853-A EN 2502 Appendix...
  • Page 32 Fig. 22: Rack Position Fault Example 4 Note: If correct routing of the spray circuit lines according Fig. 17 Fig. 18 is not possible the optional "External valve block" may be the solution. Please contact your Condair partner in this behalf. Appendix 2611853-A EN 2502...

  • Page 33: Appendix G - Checklist Commissioning

    Appendix G – Checklist Commissioning Checklist Commissioning Adiabatic humidifier Condair DL Customer Humidification capacity [lb/hr] Location Air volume [m /hr] Project AHU manufacturer AHU Serial number Material AHU DL Code Length of humidifier section [inches] Software version Date General yes / ok...

  • Page 34: Appendix H - Operating Ranges

    Appendix H – Operating Ranges Operating Range DL Type A DL Type B (with booster pump) (without booster pump) Hydraulic Humidification capacity 11 ... 2,204 (5 ... 1000 l/hr) Nozzle pressure 43.5 ... 101.5 psi (3 ... 7 bar) Nozzle sizes 8 (0.40, 0.53, 0.66, 0.79, 0.92, 1.06, 1.19 and 1.32 gal/hr at 58.0 psi / 8 (1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5 and 5.0 l/hr at 4 bar Flushing water consumption...

  • Page 35: Appendix I - Pressure Drop Across Post Evaporator And Nozzle Grid

    Operating Range DL Type A DL Type B (with booster pump) (without booster pump) Ambient conditions operation Admissible ambient temperature 41 ... 104 °F (5 ... 40 °C) Admissible ambient humidity 10 ... 80 %rh, non-condensing Larger capacities on demand (consider possible number of steps for capacity range!) Note: For sys- tems "Type A"...
  • Page 36 Notes...
  • Page 37 Notes...
  • Page 38 Notes...

  • Page 39: Warranty

    The warranties set forth herein are in lieu of all other warranties expressed or implied by law. No liability whatsoever shall be attached to CONDAIR until said products have been paid for in full and then said liability shall be limited to the original purchase price for the product.
  • Page 40 Buy authentic Condair parts factory direct. Would you recommend Condair? Take our two question survey. U.S.A. 1021 6th Street Racine, WI 53403 CANADA 2740 Fenton Road Ottawa, Ontario K1T 3T7 TEL: 1.866.667.8321 EMAIL: na.info@condair.com WEBSITE: www.condair.com...
