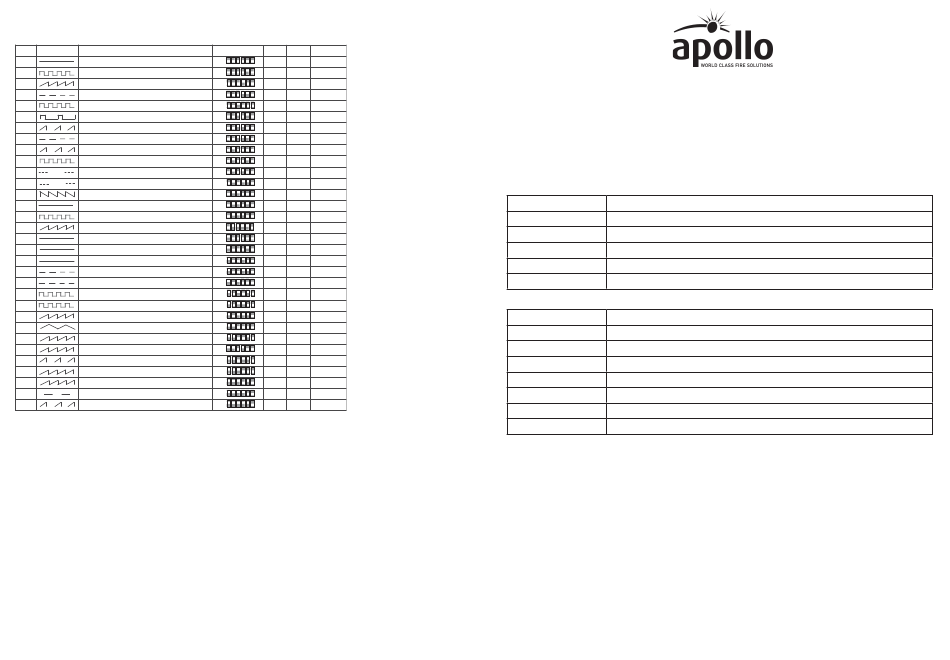

Apollo XPander XPA-CB-14001-APO Installation Manual

Tone Table
TONE TONE TYPE TONE DESCRIPTION / APPLICATION
1. 970Hz
2. 800Hz /970Hz @2Hz
3. 800Hz – 970Hz @1Hz
4. 970Hz 1s OFF /1s ON
5. 970Hz, 0.5s / 630Hz, 0.5s
6. 554Hz, 0.1s / 440Hz, 0.4s (AFNORNF S32 001 )
7. 500 –1200Hz,3. 5 s / 0. 5 sO F F( NE N2575: 2 000 'Dutch S low whoop
8. 420Hz 0.625s ON /0.625s OFF (Australia AS1670 Alert tone)
9. 1 0 0 0 – 2 5 0 0 H z 0 , 5 . s 0 / 5 . s O F F x 3 1 / 5 . s O F F ( A S 1 6 7 0 E v a c u t a
10. 550Hz /440Hz @0.5Hz
11. 970Hz, 0.5s ON / 0.5s OFF x 3 / 1.5s OFF (ISO 8201 )
12. 2850Hz, 0.5s ON / 0.5s OFF x 3 /1.5s OFF (ISO 8201)
13. 1200Hz – 500Hz @1Hz (DIN 33 404)
14. 400Hz
15. 550Hz, 0.7s /1000Hz, 0.33s
16. 1500Hz – 2700Hz @3Hz
17. 750Hz
18. 2400Hz
19. 660Hz
20. 660Hz 1.8s ON /1.8s OFF
21. 660Hz 0.15s ON /0.15s OFF
22. 510Hz, 0.25s / 610Hz, 0.25s
23. 800 /1000Hz 0.5s each (1Hz)
24. 250Hz – 1200Hz @12Hz
25. 500Hz – 1200Hz @0.33Hz
26. 2400Hz – 2900Hz @ 9Hz
27. 2400Hz – 2900Hz @3Hz
28. 500Hz –1200Hz,0. 5 s / 0. 5 sO F Fx 3 /1. 5 sO F F(AS 1670 E vacuation)
29. 800Hz – 970Hz @9Hz
30. 800Hz – 970Hz @3Hz
31. 800Hz, 0.25s ON /1s OFF
32. 500Hz – 1200Hz, 3.75s /0.25s OFF (AS2220)
* Note: only tones 1,2,3,4,5,6,7 & 13 are EN54-3 compliant
© Apollo Fire Detectors Limited 2014
Apollo Fire Detectors Limited, 36 Brookside Road, Havant, Hampshire, PO9 1JR,
Tel: +44 (0) 23 9249 2412 Fax: +44 (0) 23 9249 2754
Email: techsales@apollo-fi re.co.uk Website: www.apollo-fi re.co.uk
DIP SWITCH 2nd dBA@1m mA
ON
18 99 17
1 2 3 4 5 6
ON
1 100 16
1 2 3 4 5 6
ON
1 100 16
1 2 3 4 5 6
ON
1 99 10
1 2 3 4 5 6
ON
4 99 15
1 2 3 4 5 6
ON
1 97 9
1 2 3 4 5 6
ON
1 99 12
1 2 3 4 5 6
ON
9 96 5
1 2 3 4 5 6
ON
o i ) n 1 104 10
1 2 3 4 5 6
ON
19 97 10
1 2 3 4 5 6
ON
1 98 8
1 2 3 4 5 6
ON
1 94 17
1 2 3 4 5 6
ON
1 99 13
1 2 3 4 5 6
ON
18 95 9
1 2 3 4 5 6
ON
1 98 13
1 2 3 4 5 6
ON
1 104 30
1 2 3 4 5 6
ON
1 99 14
1 2 3 4 5 6
ON
1 106 41
1 2 3 4 5 6
ON
18 96 13
1 2 3 4 5 6
ON
19 96 8
1 2 3 4 5 6
ON
19 96 7
1 2 3 4 5 6
ON
1 98 11
1 2 3 4 5 6
ON
1 100 17
1 2 3 4 5 6
ON
1 98 9
1 2 3 4 5 6
ON
1 99 14
1 2 3 4 5 6
ON
18 101 36
1 2 3 4 5 6
ON
18 104 36
1 2 3 4 5 6
ON
8 98 6
1 2 3 4 5 6
ON
1 99 16
1 2 3 4 5 6
ON
1 100 6
1 2 3 4 5 6
ON
1 99 4
1 2 3 4 5 6
ON
8 99 13
1 2 3 4 5 6
UK
4
39214-444/Issue 6
General
Do not install any XPander equipment until a full site survey has been completed using the
XPander site survey tool. A maximum of 5 interfaces are permitted for each site. For sites
that require more than 5 interfaces please contact Apollo. All installation engineers must
have had certifi ed XPander training.
The XPander sounder and sounder visual indicator variants are as follows:
Complete Units
Part Number
XPA-CB-14001-APO
XPA-CB-14002-APO
XPA-CB-14003-APO
XPA-CB-14004-APO
XPA-CB-14005-APO
Spares
Part Number
XPA-SB-10023-APO
XPA-SB-10024-APO
XPA-SO-14001-APO
XPA-SO-14002-APO
XPA-SN-14003-APO
XPA-SN-14004-APO
XPA-SN-14005-APO
The installation must conform to BS5839-1:2013 (or applicable local codes). All sounder and
sounder visual indicators devices are suitable for indoor use only.
Installation
The installation procedure for sounders and sounder/visual indicator is the same. Ensure
that all units are sited in accordance with the survey and design details.
1. Remove the wall mounting plate from the sounder by turning it anti-clockwise.
2. Fix the mounting plate (shown in Fig. 1) to the wall using suitable fi xings and fasteners.
Ensure the fasteners are fl ush with the mounting plate to avoid the risk of damaging
the battery PCB.
3. Attach the sounder base to the module ensuring that the locating lugs line up and
the tamper switch pertrudes through the battery cover. Turn clockwise to achieve a
positive location.
4. Ensure that the tamper switch operates correctly. The switch should make contact with
the wall mount plate.
5. Fit the power jumper shorting link and commission the unit according to the XPander
commissioning guide PP2286.
XPander Sounder/Visual Indicator
Installation Guide
Description
XPander Sounder with Mounting Base (Red)
XPander Sounder with Mounting Base (White)
XPander Sounder Visual Indicator (Red) with Mouting Base (Red)
XPander Sounder Visual Indicator (Amber) with Mounting Base (White)
XPander Sounder Visual Indicator (Clear) with Mounting Base (White)
Description
XPander Sounder Mounting Base (Red)
XPander Sounder Mounting Base (White)
XPander Sounder (Red)
XPander Sounder (White)
XPander Sounder Visual Indicator (Red)
XPander Sounder Visual Indicator (Amber)
XPander Sounder Visual Indicator (Clear)
1
