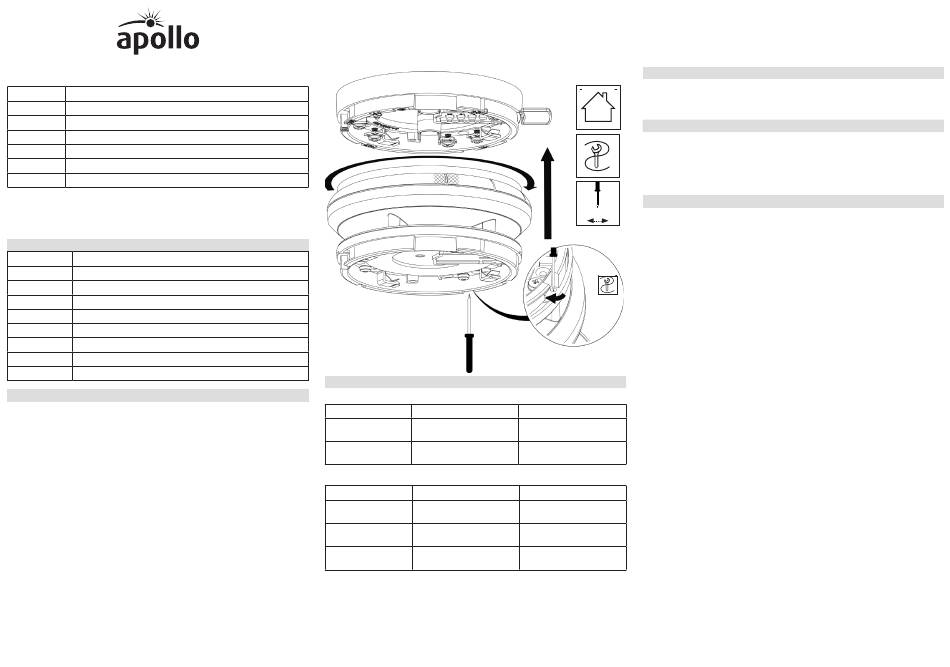

Apollo Discovery 58002-300 Installation Manual

Discovery Audio Visual Bases Installation Guide
Part No. Product Name
58002-300 Discovery Base Sounder
58006-300 Discovery Base Sounder - Black
58002-350 Discovery Base Sounder VID (White Flash)
58002-351 Discovery Base Sounder VID (Red Flash)
58006-350 Discovery Base Sounder VID - Black (White Flash)
58006-351 Discovery Base Sounder VID - Black (Red Flash)
Discovery Audio Visual (AV) bases are compatible with XP95
Discovery and CoreProtocol . They are certified for use with the XPERT
® ®
8 Base part numbers SA5000-200 and SA5000-204 - sold separately.
Accessories
Part No.
Product Name
SA5000-200 XPERT 8 Base
SA5000-204 XPERT 8 Base (Black)
45681-292 White Cap
45681-293 Red Cap
45681-296 Black Cap
45682-800 XPERT Universal Address Card
45682-860 XPERT Universal Address Card (Black)
SA7800-870 Apollo Test Set (for commissioning and soft addressing)
Sounder Installation
For wiring, follow instructions on XPERT 8 Base installation guide - 39215-005.
XP95/Discovery systems - A XPERT Universal address card is required for
the XPERT 8 base and the AV base (if a detector is fitted).
1. Follow the options described in the Addressing instructions.
2. Align the AV base with the XPERT 8 base and rotate clockwise
until fully home*.
3. The AV base can be locked to the to the XPERT 8 base using the
1.5mm grub screw.
4. Fit the detector or a Cap.
*TIP - If installing at high level using an installation pole. Fit and lock the
detector or cap to the AV base before attaching to the XPERT 8 base.
The installation must conform to applicable local codes of installation.
39215-488/Issue 2
/
®
Addressing
XP95/Discovery System:
Detector Fitted
XPERT Universal Address Card
XP95/Discovery/Soteria
XPERT Universal Address Card
None
CoreProtocol System (Hard Addressing):
Detector Fitted
XPERT Universal Address Card
Soteria
XPERT Universal Address Card
XP95/Discovery
XPERT Universal Address Card
None
The address of the device is set using a XPERT Universal Address card
(part no. 45682-800 or 45682-860 (Black)) fitted to the base.
1
2
1.5mm
3
AV Base Address Detector Address
XPERT Universal Address Card
(1 to 126) (1 to 126)
N/A
(1 to 126)
AV Base Address Detector Address
XPERT Universal Address Card
(1 to 126) (1 to 126)
XPERT Universal Address Card
(1 to 126) (1 to 126)
N/A
(1 to 126)
Servicing and Maintenance
This equipment contains no user serviceable parts. The outer housing
can be cleaned using a clean dry cloth.
Commissioning
It is important that the device is fully tested after installation. Many fault
conditions are the result of system wiring errors. Check all connections
to the unit.
An Apollo Test Set (part no. SA7800-870) can be used to aid with
commissioning.
Setup and Test Modes (Sounder and Sounder Visual Indicators Only)
The Setup and Test mode features allow the AV Bases to be tested or the
volume adjusted locally with the use of a magnet.
Please refer to the Control and Indicating Equipment (CIE) instructions
on how to enable the Setup and Test features.
When Setup or Test mode has been activated in the control CIE, a blue
LED on the Discovery Base Sounder/(VID)AV base flashes to indicate the
device is in Setup Mode or Test Mode. This is also the location to apply a
magnet to control the AV Base.
Setup Mode:
1. Enable Setup Mode for the sounder volume through the engineering
menu on the CIE. The blue setup and test LED on the device will flash
once per second to confirm that the Discovery AV Base Sounder/VID
is in Setup Mode.
The green polling LED function is turned off and repurposed as a
confirmation LED.
2. Place the magnetic wand close to the blue flashing LED and when
the green confirmation LED flashes once, immediately remove the
wand and the sounder will turn ON (if it was OFF) or OFF (if it was ON).
3. Place the magnetic wand close to the flashing blue LED and keep it
there. The volume will increase at a rate of 1 level per second and
the green confirmation LED will flash to indicate the change.
4. When the maximum volume level is reached, the green confirmation
LED will stop flashing. Remove the wand from the blue flashing LED
for at least one second before repeating Step 3).
5. When the correct volume level is obtained, remove the wand for at
least one second then place the magnet close to the blue flashing
LED until the green confirmation LED flashes once.
6. Follow the CIE manufacturer's instructions to save this volume setting.
