FUNCTION
Apollo Fire Detectors offers a loop-powered
sounder combined with a standard XP95/Discovery
mounting base which is used to signal a fi re alarm in
enclosed areas.
FEATURES
The sounder offers:
• two tone ranges 55–75dB and 75–91dB
• synchronisation of 'alert' and 'evacuate'
tones
• individual and group addressing
• available with or without built-in isolator
• unique acoustic self-test
• in addition to the standard tone a slow
whoop tone to Dutch standard NEN2575 is
available
The low tone range is useful in areas such as hos-
pitals where a fi re alert is initially intended to warn
staff only. The sounder is set to the high range for
general use.
Synchronisation of tones ensures the integrity of
the signal—tones from different sounders do not
merge into one signal that could be mistaken for a
different tone.
PROTECTOR ALARMS (UK) Ltd.
20/22 GIPSY HILL
CRYSTAL PALACE
LONDON. SE19 1NL
INTEGRATED BASE SOUNDER
© Apollo Fire Detectors Ltd 2003-2005
TEL No. 020 8761 3771
FAX No. 020 8670 9441
email: sales@protectoralarms.com
Website: www.ProtectorAlarms.com

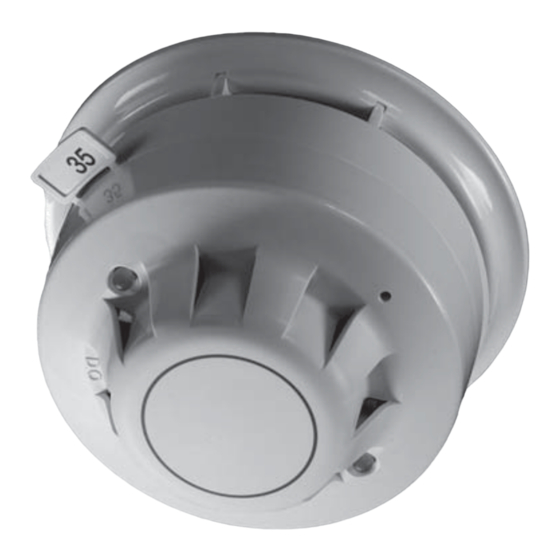

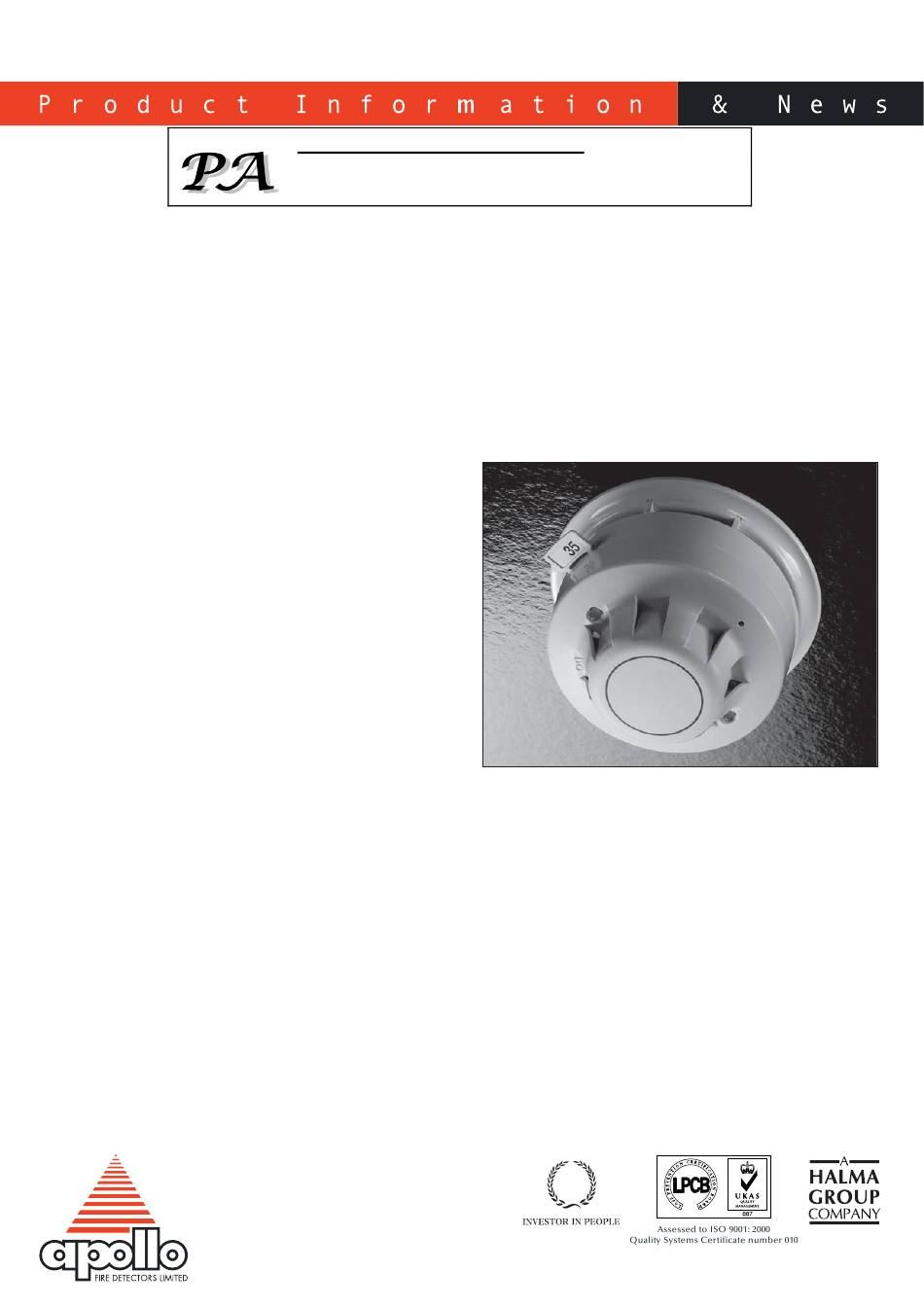

Integrated Base Sounder shown with an optical detector
Group addressing is a simple method of alerting an
entire area or group of rooms without delay.
For systems requiring isolators at every point the
built-in isolator saves installation time and cost.
The acoustic self-test means that the sounder
listens to itself when it is switched on. If no sound
is detected a fault signal is transmitted when the
sounder is polled.
ELECTRICAL CONSIDERATIONS
The integrated base sounder is line powered and
needs no external power supply. It operates at
17–28V DC and is polarity-sensitive.
PA
PP2209/2005/ Issue 1
