Summary of Contents for Aqualisa HiQu Digital

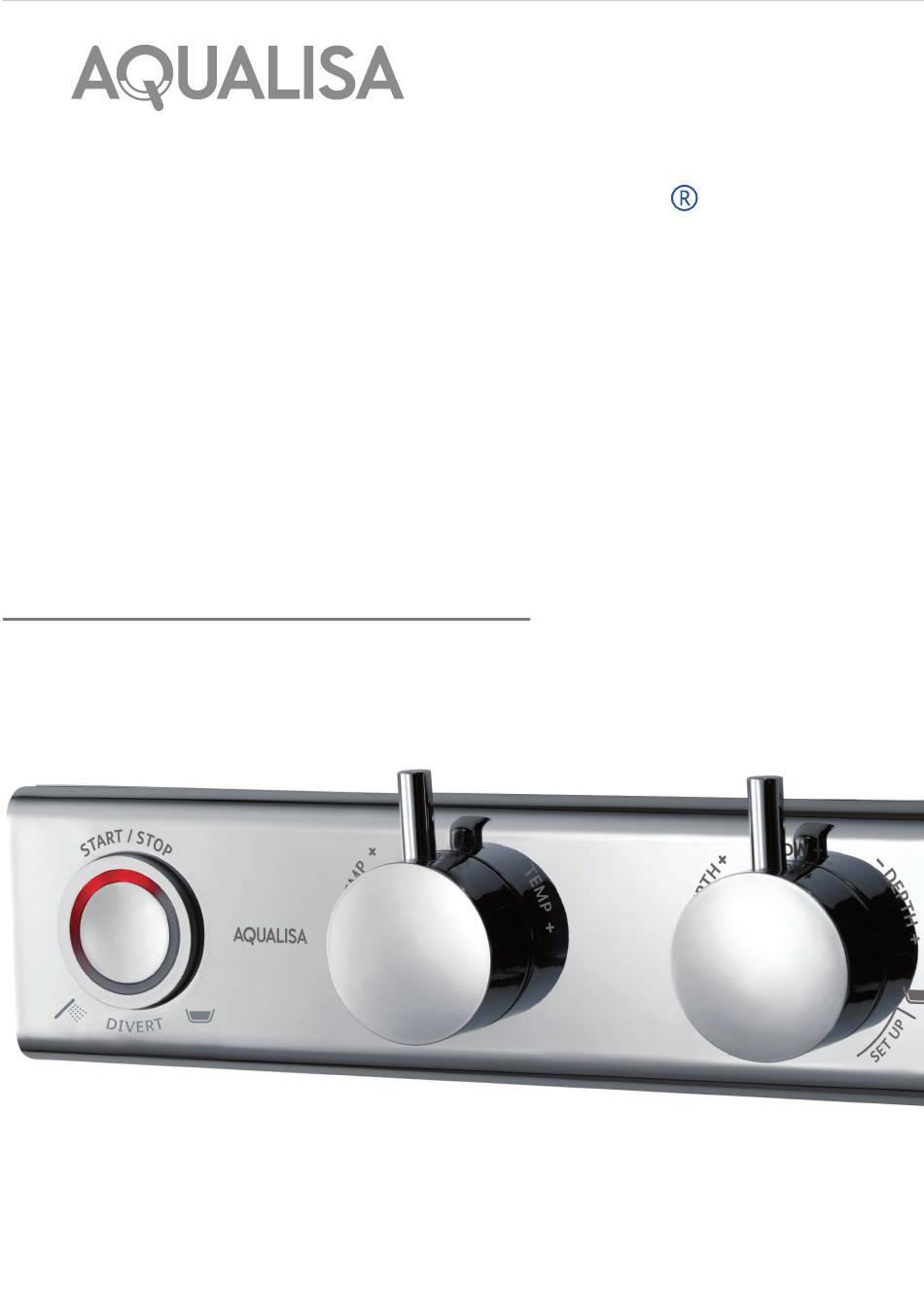

- Page 1 HiQu Digital Bath with diverter Installation guide...
- Page 2 Low Voltage Directive (2006/95/EC) and the EMC Directive (2004/108/EC). After installation Familiarise the end user with the Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk...
- Page 3 In addition to the guide below it is essential that the written instructions overleaf are read and understood and that you have all the necessary components (shown overleaf) before commencing installation. The HiQu Digital Bath system is supplied with universal fixings intended to secure it to a suitable wall.
- Page 4 Choose the position for the Digital processor as close to the Digital diverter as possible, within range of the 2m connecting data cable provided. The Digital processor and diverter assembly must be sited as close to the bath controller as possible, within range of the 10m data cable provided for connecting the processor to the controller.
- Page 5 Connect the mixed water outlet pipe from the Digital processor to the inlet pipe on the Digital diverter ensuring the isolation valves are connected to the diverter valve outlet, with the arrows correctly aligned according to the direction of flow. Using pipe clips as appropriate, ensure that all pipe work is perpendicular to the Digital processor and Digital diverter, i.e.
- Page 6 BEFORE ANY ELECTRICAL ADJUSTMENT IS ATTEMPTED, THE ELECTRICITY SUPPLY MUST BE TURNED OFF AT THE MAINS SWITCH. ELECTRICAL INSTALLATION MAY ONLY BE CARRIED OUT BY A QUALIFIED PERSON. Unscrew the single fixing on top of the processor and Digital diverter box and carefully tilt the lids up and off the location lugs and pull the lids clear.
-
Page 7: This Appliance Must Be Earthed
Connect the processor power lead to a double pole 3 amp fuse switched spur incorporated in the fixed wiring circuit, in accordance with current wiring rules. Ensure that this is located in an accessible, dry location and not in the bathroom. - Page 8 Commissioning Setting the priority outlet 1. Ensuring the processor is powered, but without any outlets flowing, select position 1 (Outlet A) or position 2 (Outlet B) on the digital diverter switch to determine the default priority outlet. Setting outlet flow mode The unit is factory set to priority outlet HIGH FLOW and secondary outlet to LOW FLOW, if required this can be changed by adopting the following procedure.
- Page 9 To programme bath 1. Put the plug in. 2. Turn the temperature control lever to the required position. 3. Turn the depth control lever to ‘Set up’ mode. 4. Press and release the start button to commence the flow of water. 5.
- Page 10 N.B. The bath fill can be stopped at any time by pressing the ‘Start/Stop’ button. HiQu Digital Bath features a ‘Top up’ mode providing a method of topping up your bath at the desired temperature, ‘Top up’ runs in LOW FLOW regardless of outlet selected. To operate the bath in ‘Top up’...
- Page 11 Cold feed Digital to cylinder Bath control Connect ‘A’ or ‘B’ HiQu Digital Bath with diverter Hot water cylinder Typical UHW system installation (compatible with standard processor) Digital Bath control Supply Components (HP/Combi) Hot water cylinder Typical thermal storage unit...
- Page 12 Part No:700393 Issue 03 Nov 15 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
