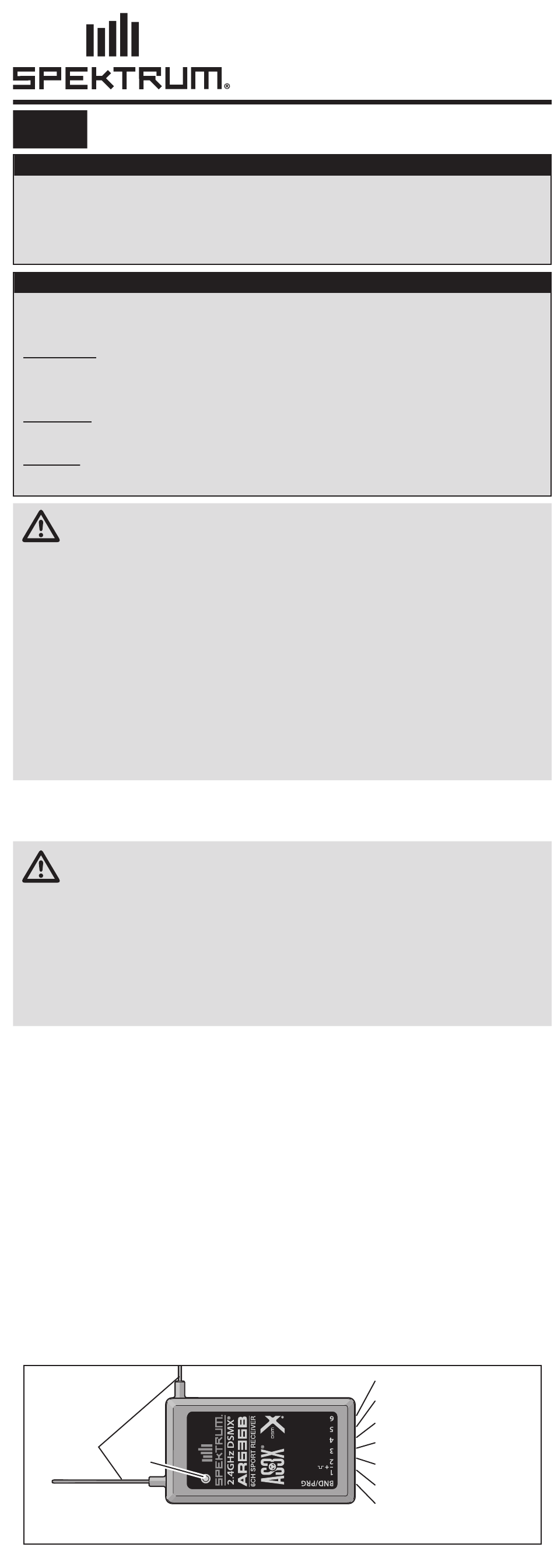

Spektrum AR636B Instruction Manual

EN
All instructions, warranties and other collateral documents are subject to
change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit horizonhobby.com or towerhobbies.com and click on the support
or resources tab for this product.
The following terms are used throughout the product literature to indicate
various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability
of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of
physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of
physical property damage AND a little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with
the features of the product before operating. Failure to operate the
product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common
sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product
or other property. This product is not intended for use by children without direct
adult supervision. Do not attempt disassembly, use with incompatible components
or augment product in any way without the approval of Horizon Hobby, LLC. This
manual contains instructions for safety, operation and maintenance. It is essential to
read and follow all the instructions and warnings in the manual, prior to assembly,
setup or use, in order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years.
WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase
from a Horizon Hobby, LLC authorized dealer to ensure authentic high-
quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty
with regards, but not limited to, compatibility and performance of counterfeit
products or products claiming compatibility with DSM or Spektrum technology.
NOTICE: This product is only intended for use with unmanned, hobby-grade,
remote-controlled vehicles. Horizon Hobby disclaims all liability outside of the
intended purpose and will not provide warranty service related thereto.
The AR636B full range 6-channel receiver features DSMX
compatible with all Spektrum
The available features of the AR636B may vary depending on the aircraft in which
it is installed. Refer to your aircraft manual for aircraft specifi c features and options.
Specifi cations
Type: DSMX Full Range Receiver
Channels: 6
Frequency Band: 2404-2476 MHz
Max EIRP: 2.96dBm
Modulation: DSM2, DSMX
Dimension (WxLxH): .90 x 1.70 x 0.60 in (23.5 x 42.0 x 14.0mm)
Weight: 0.36 oz (10.2 g) main receiver
Input Voltage Range: 3.5–9.6V
Resolution: 2048
Compatibility: All DSM2 and DSMX Aircraft Transmitters and Module Systems
Antennas
MEANING OF SPECIAL LANGUAGE
This is not a toy.
™
transmitters that support DSM2
LED
AR636B Instruction Manual
NOTICE
SPMAR636B
®
technology and is
®
and DSMX technology.
AUX1 (Auxilary 1 port)
GEAR (Gear port)
RUDD (Rudder port)
ELEV (Elevator port)
AILE (Aileron port)
THRO (Throttle port)
BIND/PROG
(Bind, Programming port)
