Summary of Contents for Spektrum AR6335

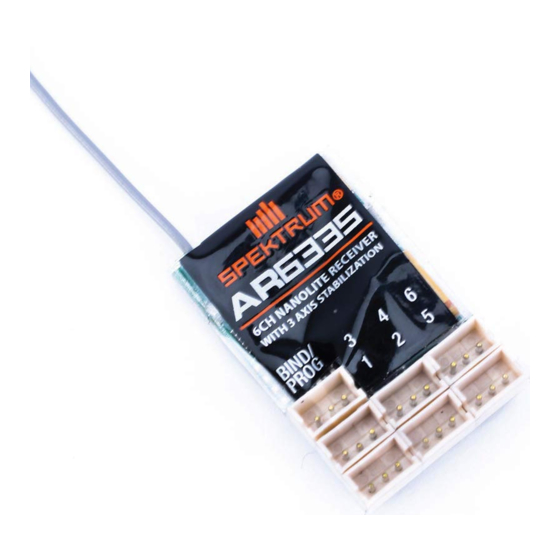

- Page 1 AR6335 User Guide AR6335 Bedienungsanleitung Guide de L’utilisateur - AR6335 AR6335 Guidea Dell’utente...
-
Page 2: Warranty Registration
Age Recommendation: Not for children under 14 years. This is not a toy. WARNING AGAINST COUNTERFEIT PRODUCTS Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum. - Page 3 ® Since then, millions of hobbyists the world over have come to embrace 2.4 as the way to fly. Spektrum leads the way yet again with DSMX—the world’s first wideband frequency-agile 2.4GHz signal protocol. How Does DSMX Work? It’s a crowded 2.4GHz world out there and every 2.4GHz system faces the same challenges.
- Page 4 Technology? ™ ™ Yes. DSMX will provide you with these and other exclusive Spektrum advantages you already enjoy with DSM2. Want to know more about DSMX? Visit spektrumrc.com for complete details on this as well as the many other reasons Spektrum is the leader in 2.4.
-
Page 5: Specifications
*Typical Servo Port Assignments Binding The AR6335 receiver must be bound to the transmitter before it will operate. Binding is the process of teaching the receiver the specific code of the transmitter so it will only connect to that specific transmitter. - Page 6 Using the AR6335 Receiver With AS3X By default, AS3X technology is turned off in AR6335 receivers. Before activating AS3X, you will need to properly install the receiver in the aircraft and download the Spektrum AS3X Programmer application to your mobile device. An interface cable (SPMA3081 sold separately) is required for programming the receiver.
- Page 7 Preset Failsafe (Spektrum AS3X Programmer Application required) The Spektrum application enables you to program preset failsafe positions on individual receiver channels. If loss of signal occurs, Preset failsafe drives the selected servo channels to their preset failsafe positions. Receiver Power Only • With SmartSafe technology when the receiver only is turned on (no...
- Page 8 • Receiver battery pack (number of cells, capacity, cell type, state of charge) • The ESC’s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR6335 has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. Recommended Power System Test Guidelines If a questionable power system is being used (e.g. small or old battery, ESC that may not have a BEC that will support high-current draw, etc.),...
- Page 9 If at any time you turn on the system and it fails to connect, check to be sure the correct model memory is selected in the transmitter. Frequently Asked Questions on Spektrum 2.4GHz 1. Q: After I’ve bound the receiver to my transmitter, which do I turn on first when I want to fly? A: Either one.
-
Page 10: Year Limited Warranty
1-YEAR LIMITED WARRANTY What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... - Page 11 visit our website at www.horizonhobby.com, submit a Product Support Inquiry at https://horizonhobby.quickbase.com/db/bghj7ey8c?a=GenNewRecord, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services - If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number.
-
Page 12: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby. (Repairs and com/RequestForm/ Repair Requests) United 4105 Fieldstone Rd Horizon Product www.quickbase.com/db/ States of Champaign, Illinois, Support bghj7ey8c?a=GenNewRecord America 61822 USA (Product Techni- 888-959-2305 cal Assistance) sales@horizonhobby.com... -
Page 13: Compliance Information For The European Union
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2014053008 Product(s): AR6335 6Ch AS3X Nanolite Receiver Item Number(s): SPMAR6335 The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE Directive 1999/5/EC:... - Page 14 Hangar 9, AS3X, SmartSafe and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. JR is a registered trademark of JR Americas. IOS is a trademark or registered trademark of Cisco in the U.S.
