Internal Temperature
Load Compensation
Boiler
PLUS
ITLC
Quick Guide
SALUS Controls plc
SALUS House
Dodworth Business Park South,
Whinby Road, Dodworth,
Barnsley S75 3SP, UK.
T: +44 (0) 1226 323961
E: sales@salus-tech.com
E: techsupport@salus-tech.com
www.salus-tech.com
For PDF Installation guide please go to
www.salus-manuals.com
Issue Date: July 2019
V033

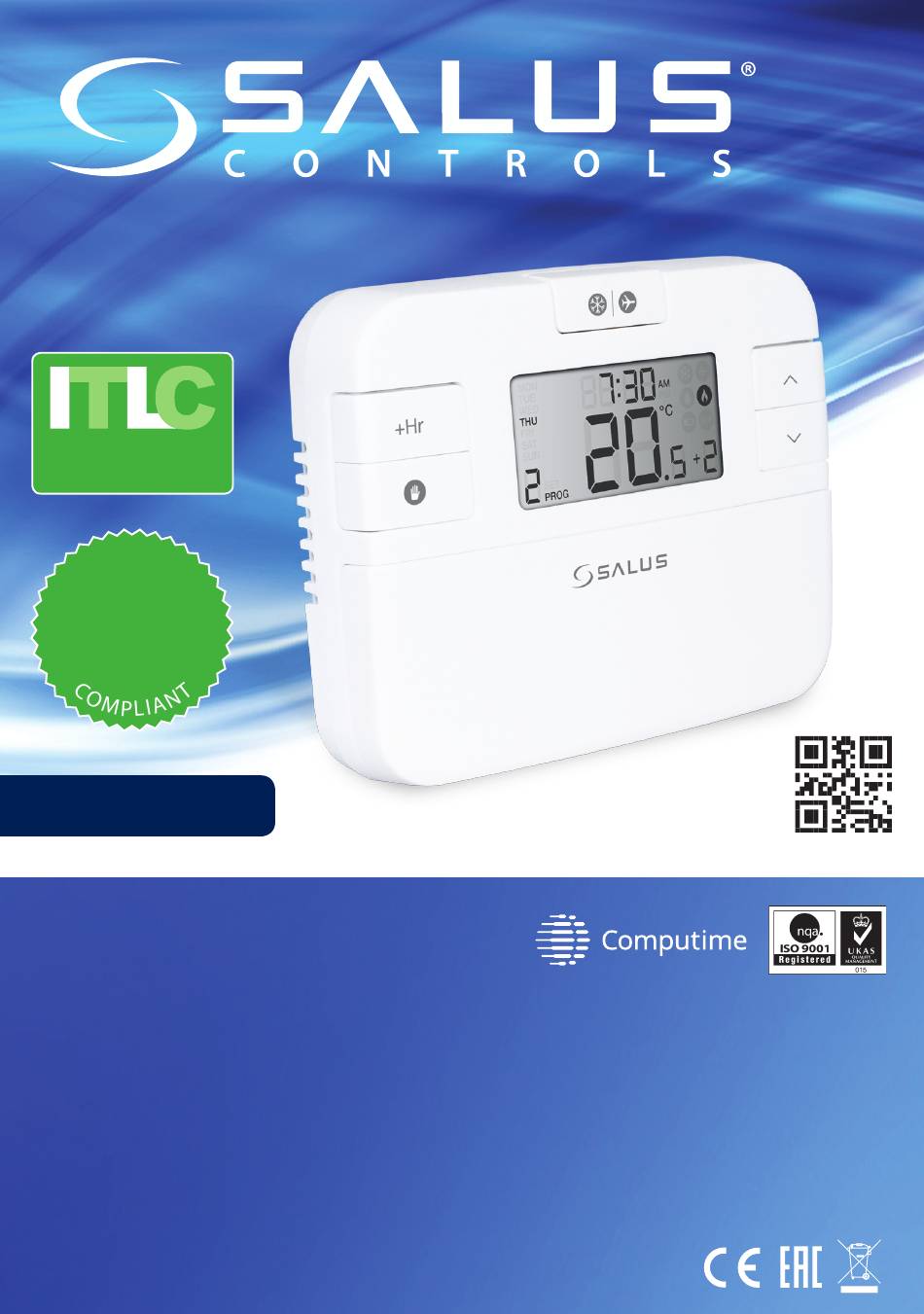

RT510+, RT510TX+, RT510RF+
SALUS Controls is a member of the
Computime Group.
Maintaining a policy of continuous product
development SALUS Controls plc reserve
the right to change specification, design and
materials of products listed in this brochure
without prior notice.
Advertisement
Table of Contents
Related Manuals for Salus RT510+
Summary of Contents for Salus RT510+
- Page 1 Quick Guide SALUS Controls plc SALUS House Dodworth Business Park South, Whinby Road, Dodworth, SALUS Controls is a member of the Barnsley S75 3SP, UK. Computime Group. T: +44 (0) 1226 323961 Maintaining a policy of continuous product E: sales@salus-tech.com development SALUS Controls plc reserve E: techsupport@salus-tech.com...
-
Page 2: Product Compliance
This product complies with the essential requirements and other relevant provisions of the following EU Directives: EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration of Conformity is available on www.salus-controls.com/uk 868.0-868.6MHz; <13dBm Safety Information Use in accordance to national and EU regulations. -
Page 3: Button Functions
Button functions RT510+ / RT510TX+ Thermostat RXRT510+ Receiver 6. When in Manual Mode, 1. Boost function ON will turn the boiler on. 2. Manual Mode 7. When in Manual Mode, 3. Frost protection / Holiday Mode OFF will turn the boiler off. 4. -
Page 4: Setting The Time
RT510+ Wiring diagram AC 230 V AC 230 V 3 (1) A 3 (1) A RT510TX+ Wiring diagram Note: If you are using the RT510RF pack, the pairing between the thermostat and the receiver is already done. AC 230 V 16 (5) A Setting the time 3 (1) A... - Page 5 TEST / PAIRING TEST / PAIRING SELECT SELECT Press to set day of the week. TEST / PAIRING TEST / PAIRING SELECT SELECT Press SELECT to confirm. TEST / PAIRING SELECT TEST / PAIRING SELECT TEST / PAIRING TEST / PAIRING SELECT SELECT Thermostat will return to the main screen.
- Page 6 Temporary Override Mode This function is available only in automatic mode (schedule). If a new setpoint temperature will be set during the schedule - it will be maintained until next time interval starts according to programmed schedule. TEST / PAIRING TEST / PAIRING SELECT SELECT...
-
Page 7: Frost Protection
Frost Protection Temperature of the Frost Protection mode is set as default at 5°C. This temperature can be changed in Installer Mode in d03 parameter. TEST / PAIRING TEST / PAIRING SELECT SELECT Press button to turn On Frost Protection mode. TEST / PAIRING TEST / PAIRING SELECT... - Page 8 RT510TX thermostat pairing with the receiver Note: If you are using the RT510RF+ pack, the pairing between the thermostat and the receiver is already done. If you bought the RT510TX+ and RXRT510+ separately or if you want to re-pair thermostat with the receiver, make sure that the device is disconnected from the power supply and the switches on the receiver have been set to AUTO and ON.
-
Page 9: Installer Mode
Installer Mode 3 sec TEST / PAIRING TEST / PAIRING SELECT SELECT 3 sec 3 sec Press three buttons at the same time TEST / PAIRING for 3 seconds. SELECT Using SELECT button choose the parameter. TEST / PAIRING TEST / PAIRING SELECT SELECT Using...
