Conduit
AP

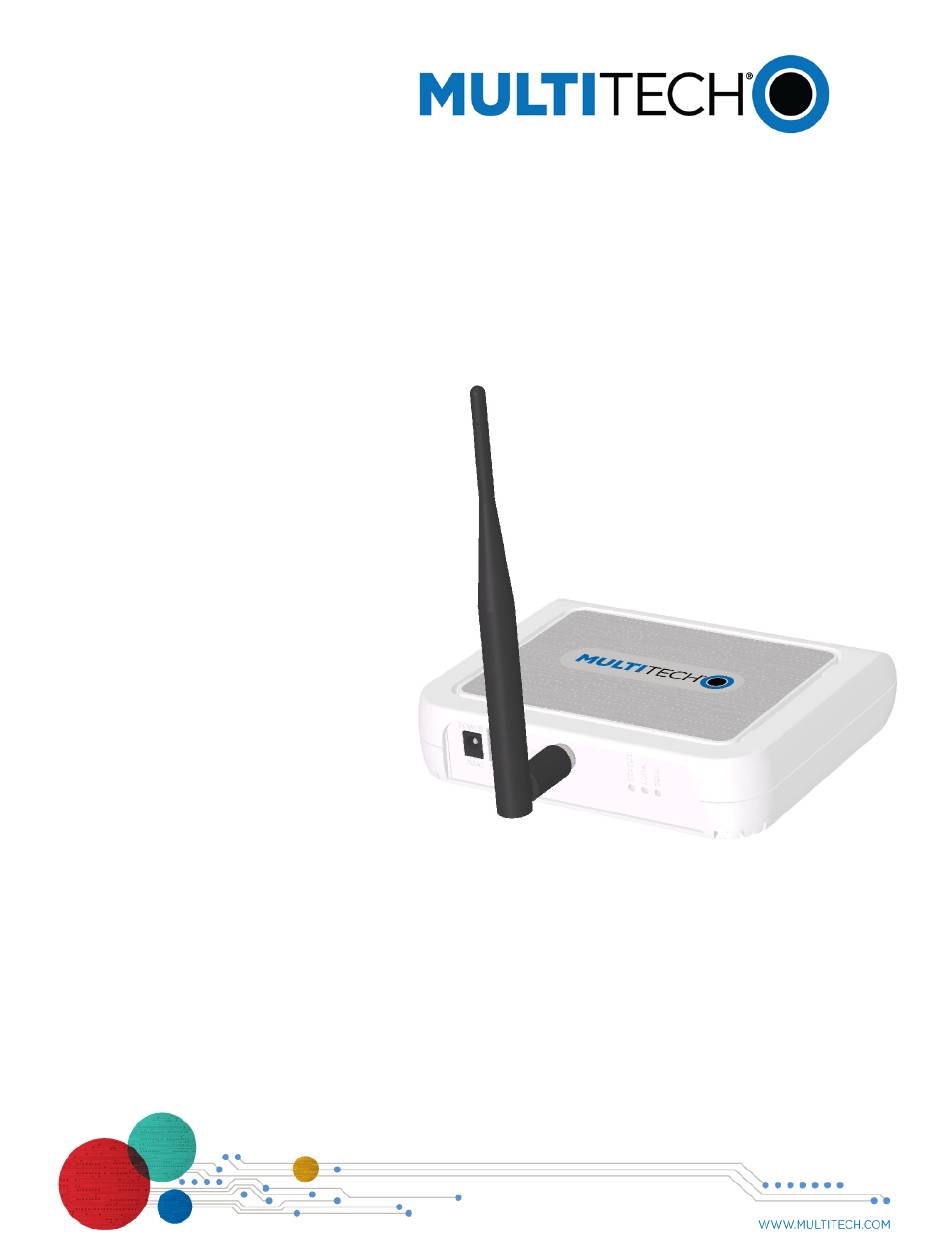

MTCAP-LNA3-915 and MTCAP-915 for mLinux Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Conduit AP and is the answer not in the manual?

Questions and answers

Related Manuals for Multitech Conduit AP

Summary of Contents for Multitech Conduit AP

  • Page 1 ® Conduit MTCAP-LNA3-915 and MTCAP-915 for mLinux Quick Start...

  • Page 2: Package Contents

    ® Conduit MultiTech Systems Welcome Conduit AP (MTCAP) connects thousands of IoT assets to the cloud ® using the LoRaWAN protocol. Note: Check for an updated version of this document at https://www.multitech.com/brands/multiconnect-conduit-ap/. Package Contents Your device ships with the following: 1 –...

  • Page 3: Installing A Sim Card

    ® Conduit MultiTech Systems Item Description LORA Lights when LoRa software is active. CELL Cellular models only. Lights when there is power to the radio. Blinks when the SIM is registered with the carrier. WIFI Reserved for future use. Ethernet Left LED on the Ethernet connector.

  • Page 4: Accessing The Terminal Interface

    The above credentials do NOT have root privileges. Some commands will not work unless you use sudo (for super user permissions). Refer to your model's Conduit AP User Guide for details. To use sudo, either execute :sudo [command] or start the root shell: sudo -s Then enter the mtadm password.

  • Page 5: Set Custom Ip Address, Network Information, And Ethernet Internet Access

    ® Conduit MultiTech Systems Update the hardware clock: hwclock -u -w Set Custom IP Address, Network Information, and Ethernet Internet Access Network configuration is defined in /etc/network/interfaces: To change the static IP, change the address and netmask fields in that file (use vi or nano).
  • Page 6 AT&T (or non-Verizon if using another carrier). A new device has the value of 0. # Dial the connection (using /etc/ppp/peers/lna3 config) # pppd call lna3 Steps for verifying if ppp0 is up are available in the Conduit AP User Guide. for your model. Quick Start...

  • Page 7: Starting Cellular Connection On Boot

    /etc/init.d/ppp start Issue this command: $ update-rc.d ppp defaults. Restart and test your connection. Refer to the Conduit AP User Guide for your model for instructions on stopping automatic start up. Configuring the LoRa Network Server for mLinux Log in to the console, if you are not logged in.

  • Page 8: Mounting The Mtcap

    ® Conduit MultiTech Systems Start the packet forwarder: $ /etc/init.d/lora-packet- forwarder start . Mounting the MTCAP The device ships with a mounting bracket. You will also need: - Four #6 screws with anchors - Screwdriver - Drill Determining Location for the MTCAP Follow these guidelines for best performance: ■...

  • Page 9: Additional Lora And Mlinux Information

    For help using mLinux, go to: http://www.multitech.net/developer/software/mlinux/. ■ For additional packet forwarder information, go to: http://www.multitech.net/developer/software/lora/conduit- mlinux-convert-to-basic-packet-forwarder/ Safety and Regulatory Content For safety and regulatory content, refer to the Conduit AP MTCAP-LNA3- 915-042 and MTCAP-915-042 User Guide , which is available at www.multitech.com. Quick Start...

  • Page 10: Copyright And Trademark

    MultiTech, Conduit, and the MultiTech logo are registered trademarks of Multi-Tech Systems, Inc. All other brand and product names are trademarks or registered trademarks of their respective companies.
