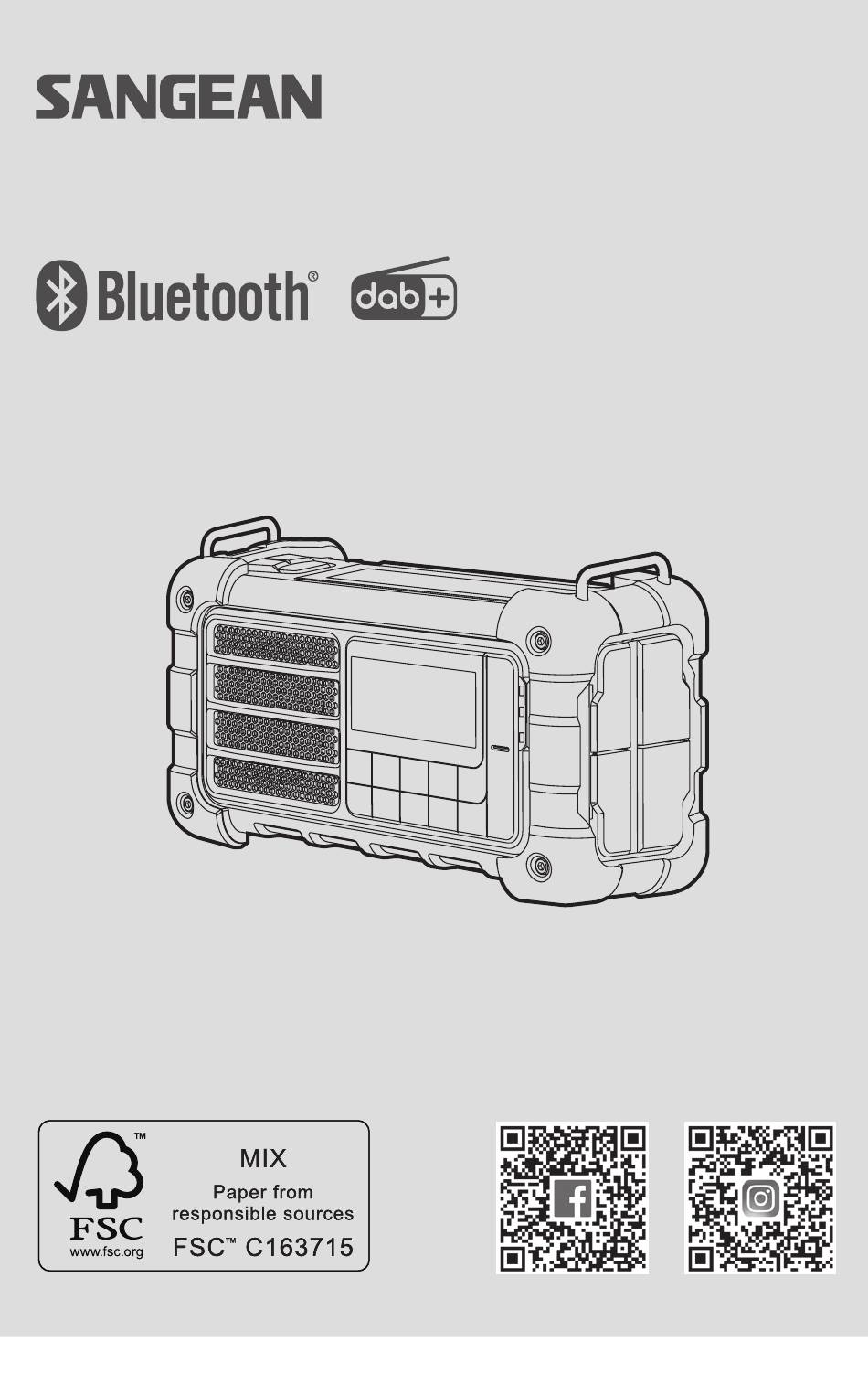

- Page 1 MMR-99DAB 3A81f2110001B...
- Page 2 9 10 11 12 21 22...
-
Page 3: Important Safety Instructions
® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SANGEAN ELECTRONICS. INC. is under license. 1. Important safety instructions Please read these instructions carefully. Please keep these instructions for future reference. -
Page 4: Overview Of The Main Unit
the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally or has been dropped. -
Page 5: Lcd Display And Indicators
Page / Alarm button Enter / Autotune button Tuning up / down button Bluetooth LED indicator Charging LED indicator Volume up / down button Preset 5 button Preset 4 / Next track / Fast forward button Preset 3 / Play / Pause button Preset 2 / Previous track / Rewind button Preset 1 / Bluetooth pairing button Low beam (red) -
Page 6: Getting Started
3. Getting started Powering the radio The MMR-99DAB is powered by a built-in 2,600mAh Lithium-ion battery. This battery can be charged by connecting a USB power source to the radio's DC IN socket, by using the hand crank at the back of the radio or using the solar panel on top of the radio. - Page 7 After you have finished charging the radio using the hand crank, place the hand crank back in its rest position. Note: Under normal listening conditions, each minute of charging using the hand crank adds approx. 5~7minutes of listening time. Charging the battery using the solar panel The radio does not need to be switched on in order for the solar panel to operate.
-
Page 8: Using The Key Lock Feature
U s i n g t h e E m e r g e n c y s i g n a l feature The MMR-99DAB also features an emergency siren and light that can be used to draw attention in case of emergency. The emergency signal can always be activated, regardless of whether the radio is turned on or off. - Page 9 and holding the Power button and releasing it when the desired sleep time is shown on the display. When the sleep timer is active, the Sleep indicator will be shown on the radio's display. To turn off the sleep timer, either press and hold the Power button until the [OFF] option appears on the display or turn off the radio and then turn it on again.
-
Page 10: Listening To Dab Radio
the default settings. Please note that selecting this item and subsequently selecting [Yes] will reset the radio to its factory settings and all information stored on the radio will be deleted. This includes all settings and stored preset stations. [LANGUAGE]: This item is not available when opening the menu from the radio's Standby mode. - Page 11 pressing the Band button. If this is the first time the DAB radio mode is being used, the radio will automatically perform a full scan in order to find all available DAB radio stations. During the scanning process, as new stations are detected the station counter will increase and the stations will be added to the list which is stored in the radio.
- Page 12 Storing preset DAB stations The MMR-99DAB features 4 preset pages containing 5 preset stations for DAB radio (for a total of 20 presets). To store a DAB station as a preset DAB station, follow these steps: Turn on the radio.
-
Page 13: Listening To Fm Radio
● DL Plus text (Some stations may provide other programme related information for the display in addition to the regular text. If none is available, a message "no info" is displayed.) 5. Listening to FM radio Tuning into FM stations To tune into FM radio stations, follow these steps: Turn on the radio by pressing and... - Page 14 FM signals. Storing preset FM stations The MMR-99DAB features 4 preset pages containing 5 preset stations for FM radio (for a total of 20 presets). To store an FM station as a preset FM...
-
Page 15: Listening To Music Via Bluetooth Streaming
6. Listening to music via Bluetooth streaming In order to stream Bluetooth music to your radio, you need to pair your Bluetooth device with your MMR-99DAB. Pairing creates a 'bond' so two devices can recognize each other. Pairing your Bluetooth device for the first time Turn on the radio by pressing and holding the Power button. - Page 16 . S u c h behavior is a function of the Bluetooth device and does not indicate a problem with your MMR-99DAB. Audio playback in the Bluetooth mode...
-
Page 17: Disconnecting Your Bluetooth Device
Audio playback from a previously paired Bluetooth device The MMR-99DAB can memorize up to 8 sets of paired Bluetooth devices. Once the memory goes over 8, the earliest device with which the radio was paired will be overwritten in the radio's memory. - Page 18 Listening to music via the Auxiliary input socket You can listen to the sound of an external device through your MMR-99DAB's speaker. To do this, follow these steps. Connect the external device (such as iPod, MP3 player or CD player) to the radio's Aux input socket using a 3.5mm audio cable (not...
- Page 19 Solar panel - charging to rechargeable built-in Lithium battery. Power Supply DC IN (5V / 2.4A) USB C Type Socket for Charging the MMR-99DAB. USB A Type to USB C Type Cable & Hand strap included. Frequency Coverage 87.5-108 MHz DAB (BAND III) 5A-13F (174.928MHz - 239.200MHz)
- Page 20 Socket DC IN USB Type C, 5V / 2.4A This symbol indicates DC voltage. DC Socket DC OUT USB Type A, 5V / 1A Earphones Jack 3.5mm diameter, Stereo Output, 32ohm Impedance Auxiliary Socket 3.5mm diameter, Stereo Input Speaker 2.25", 4Ohm, 5Watts Output Power 1.5Watts Operating Temperature Range...
