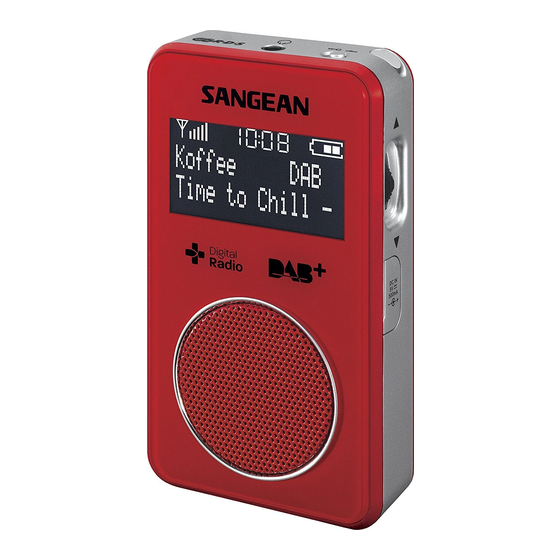

Sangean DPR-34+ Instructions Manual
  1. Manuals
  2. Brands
  3. Sangean Manuals
  4. Radio
  5. DPR-34 Plus
  6. Instructions manual

Sangean DPR-34+ Instructions Manual

Hide thumbs Also See for DPR-34+:
Table of Contents

Advertisement

Quick Links

Download this manual
DPR-34+
GB
Revision 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPR-34+ and is the answer not in the manual?

Questions and answers

Related Manuals for Sangean DPR-34+

Summary of Contents for Sangean DPR-34+

  • Page 1 DPR-34+ Revision 1...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
  • Page 4 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time.
  • Page 5 15. To Reduce the Risk of Fire or Electric Shock, Do not Expose This Appliance To Rain or Moisture. 16. The Shock Hazard Marking and Associated Graphical Symbol is provided on the bottom panel of unit. 17. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, shall not be placed on the apparatus.
  • Page 7 Controls 1. Headphone socket 2. Lock switch (Note: If this is activated the radio will not operate) 3. Telescopic antenna 4. Power button 5. Volume Control 6. LCD display 7. Loudspeaker 8. Tuning/Menu jog wheel 9. DC socket...

  • Page 8: Charging The Radio

    Charging the radio The DPR 34 features a built in 1800mAH Lithium rechargeable battery to power the radio. Before operating the radio for the first time please fully charge the battery. The DPR 34 is supplied with a 5V/500 mA AC adaptor.
  • Page 9 The battery run time is approx. 15 hours listening through the speaker and approx 18 hours with headphones. Reduced power, distortion, ‘stuttering’ sounds or battery power indicator in “low” are all signs that the battery needs to be recharged. Note: If charging the radio when the power is off, the battery power icon does not display on the LCD.

  • Page 10: Setting The Clock

    Setting the clock The DPR 34’s clock will automatically update each time you turn on the radio and tune to a DAB+ radio station or to an FM station which is broadcasting the time via RDS. Time display will flash 0:00 for a few seconds then display the clock time when it receives DAB+ or FM –...
  • Page 11 4. The display will show “Welcome to Digital Radio” and start to scan the entire DAB+ channel range and stop at the first found station. If the radio has been used before, the last used station will be selected. Press in the tuning/menu jog wheel to play the station.
  • Page 12 Service Information – DAB+ The Service Information display - Technical information on the current status of the station being broadcast. While listening to DAB+, continually press in the jog wheel to cycle through information on Program type (PTY) Multiplex Name Time Date Channel and Frequency...

  • Page 13: Menu Functions

    Menu Functions Press in and hold the jog wheel for 2 seconds to enter the menu list. The display will first show DAB and <Find Services>. Turn the jog wheel up or down and choose from the following options: ‘Find Services’, ‘Back’, ‘FM mode’, ‘Settings and Favorites’.
  • Page 14 B) Back – Press in the jog wheel to go back to current listening status. C) FM mode – Press in the jog wheel to select FM band. D) Settings – Press in the jog wheel to select from following settings options: a) Auto select –...
  • Page 15 c) SW version – Press in the jog wheel to view software version installed in the radio. Press in the jog wheel again to go back to Settings menu. d) Factory reset – Press in and turn the jog wheel to select YES or NO.
  • Page 16 g) DRC – Dynamic Range Control (DRC) feature can make quieter sounds easier to hear, especially when your radio is used in a noisy environment. This function only works within the DAB+ band. Press in DRC and turn the jog wheel to cycle through;...
  • Page 17 h) Service Information – Press in the jog wheel each time to cycle through DLS (Radio Text) information. Options are: back, signal strength, broadcasting bit rate, frequency, date, time, ensemble and program type. i) Sleep – Use the Sleep menu to set auto shut off timer.
  • Page 18 E) Favorites – The Favorites menu is used to store and recall favorite stations. You can store a maximum of 10 stations in the DAB+ band. Store a station Tune to a station as per previous instructions, press in jog wheel to allocate Favorites menu. Press in the jog wheel again to find “Preset Store”.

  • Page 19: Operating Your Radio - Fm

    Recall a station Press in the jog wheel to find “Preset Recall”. Turn the jog wheel to find the preset station you wish to recall. Press in the jog wheel to select. Operating your radio – FM 1. Turn on the radio by pressing Power button. Press in jog wheel for 2 seconds to enter Menu.

  • Page 20: Manual Tuning - Fm

    Manual tuning – FM Turn and release the jog wheel either up or down to change the frequency in 50 kHz increments until you find the desired station. Service information When listening to an FM radio station with RDS broadcasting, press in the jog wheel to cycle through the Radio Text information;...
  • Page 21 Store a station Tune to a station as per previous instructions, press in jog wheel to allocate Favorites menu. Press in the jog wheel again to find “Preset Store”. Turn the jog wheel to allocate preset number you wish to use (1-10). Press in the jog wheel and display will show “preset x stored”.
  • Page 22 A) Back – press in jog wheel to return to FM listening. B) DAB+ Mode – press in jog wheel to switch to DAB+ mode. C) Settings – press in jog wheel to select from the following settings: a) Audio setting – Turn the jog wheel to select Stereo allowed or Forced mono.
  • Page 23 b) Back – Press in to return to Settings menu. c) SW version – Press in jog wheel to view software version. Press again to return to settings menu. d) Factory Reset – Press in and turn the jog wheel to select YES or NO.
  • Page 24 g) Service Information – Press in and turn jog wheel to cycle through Radio Text, Back, Date, Time, Audio Type and Program Type (subject to radio station RDS service availability). h) Sleep – Use the Sleep menu to set auto shut off timer.
  • Page 25 Key lock function The key lock function is used to prevent unintentional operation of the radio. 1. Key lock switch is located on the top panel of the radio next to headphone socket. When the key lock switch is set to LOCK, the power and volume control buttons will be disabled.

  • Page 26: Specifications

    Specifications Power Requirement: Mains (via supplied AC adaptor) AC 100-240 50/60 Hz DC5V 500 mA Batteries: 3.7V/1850 mAH Battery Life: Approx 15 hours listening through the speaker for 4 hours a day at normal volume. Approx 18 hours of listening with headphones for 4 hours a day at normal volume.

  • Page 27: Circuit Features

    Circuit Features Headphones: 32 ohm, in-ear style Output Power: 5mW (headphone). 150 mW (speaker) Speaker: 32 ohm, 36 mm diameter.
  • Page 28 If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
